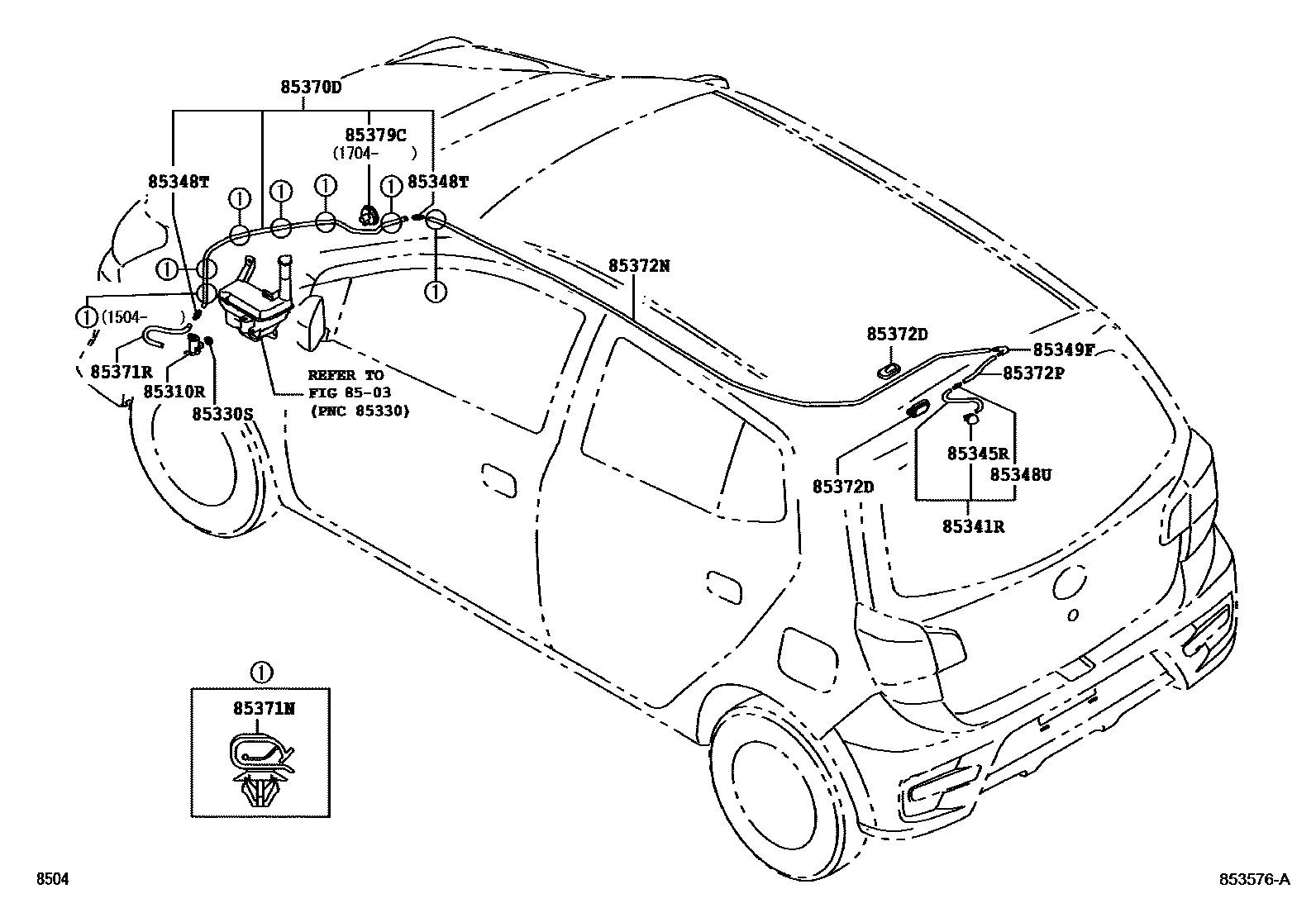

Toyota AGYA/WIGO — REAR WASHER
8503WINDSHIELD WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85341RNOZZLE ASSY, WASHER
85345RNOZZLE, REAR WASHER
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349FJOINT, REAR WASHER HOSE, NO.1
85370DHOSE ASSY, REAR WASHER, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85379CGROMMET, REAR WASHER HOSE NO.1
15 parts on this diagram · 2 diagrams in section
REAR WASHER for Toyota AGYA/WIGO
This section contains 16 genuine Toyota parts for the REAR WASHER system of the Toyota AGYA/WIGO. Key components include: WINDSHIELD WASHER, MOTOR ASSY, REAR WASHER, BUSH, REAR WASHER JAR, NOZZLE ASSY, WASHER, NOZZLE, REAR WASHER.
