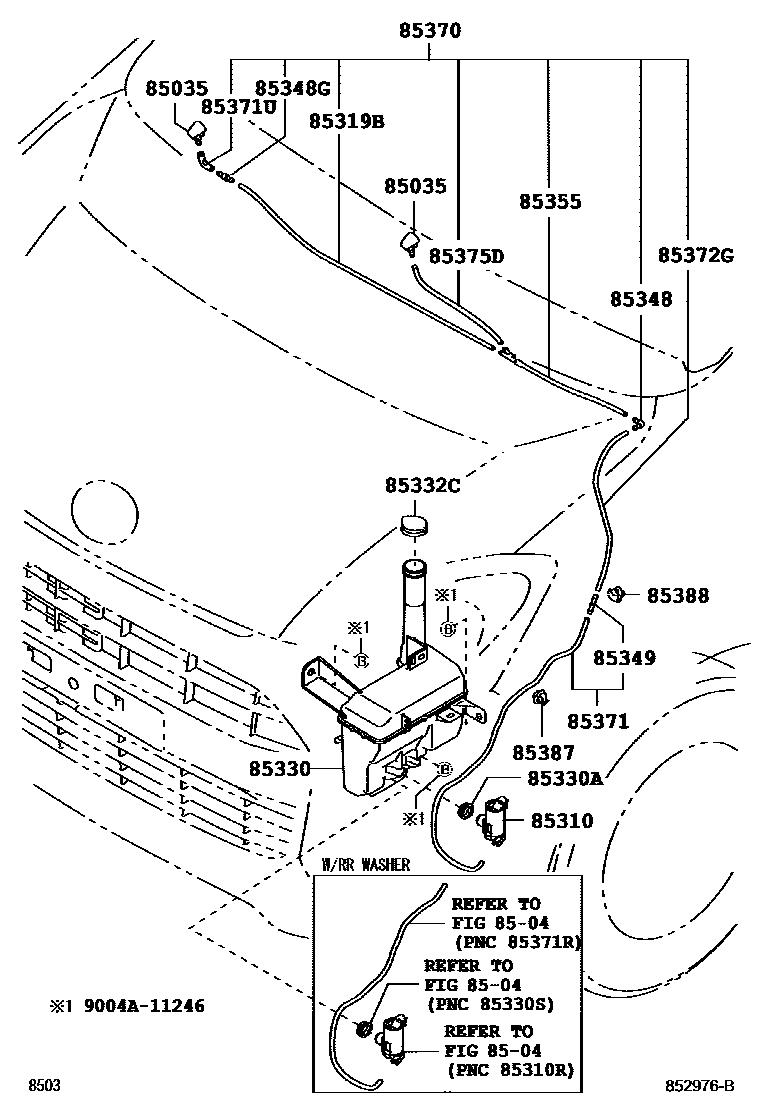

WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ180×2iB100201212-201607

main85381-BZ181×2iB10#202003

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ110iB10#202003

85319BHOSE, WINDOW WASHER

main85374-BZ520iB10#..AGYA201704-202003

main85374-BZ540iB10#..WIGO201704-202003

85330JAR ASSY, WINDSHIELD WASHER

main85315-BZ140iB10#..HIS;B100..MIDS..WIGO202003

main85315-BZ150iB100..HI..AGYA201212-201410

85330ABUSH, WINDSHIELD WASHER JAR

main85336-BZ020iB10#201704-202003

85332CCAP, FRONT WASHER TANK

main85332-BZ030iB10#201704-202003

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ040iB10#201704-202003

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-BZ020iB10#..AGYA201704-202003

main85317-BZ070iB100..WIGO201401-201704

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ020iB100201212-201607

main85317-BZ070iB10#201704-202003

85355VALVE, WINDSHIELD WASHER HOSE

main85374-BZE00iB100201212-201602

main85374-BZE10iB10#201704-202003

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ620iB100..AGYA201212-201409

main85370-BZ621iB100..AGYA201410-201601

main85370-BZ622iB10#..AGYA202003

main85370-BZ650iB100..WIGO201401-201409

main85370-BZ651iB100..WIGO201410-201601

main85370-BZ652iB100..WIGO201602-201704

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85370-BZ790iB10#201704-202003

H,L=670

85371UTUBE, RUBBER

main85317-BZ060iB10#202003

85372GTUBE, RUBBER

main85374-BZ500iB100201212-201410

*H,L=260

85375DTUBE,RUBBER

main85374-BZ510iB100..AGYA201212-201704

main85374-BZ530iB10#..WIGO202003

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E340iB10#201704-202003

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-BZ100iB10#201704-202003

9004A11246

main9004A-11246

19 parts on this diagram · 4 diagrams in section
