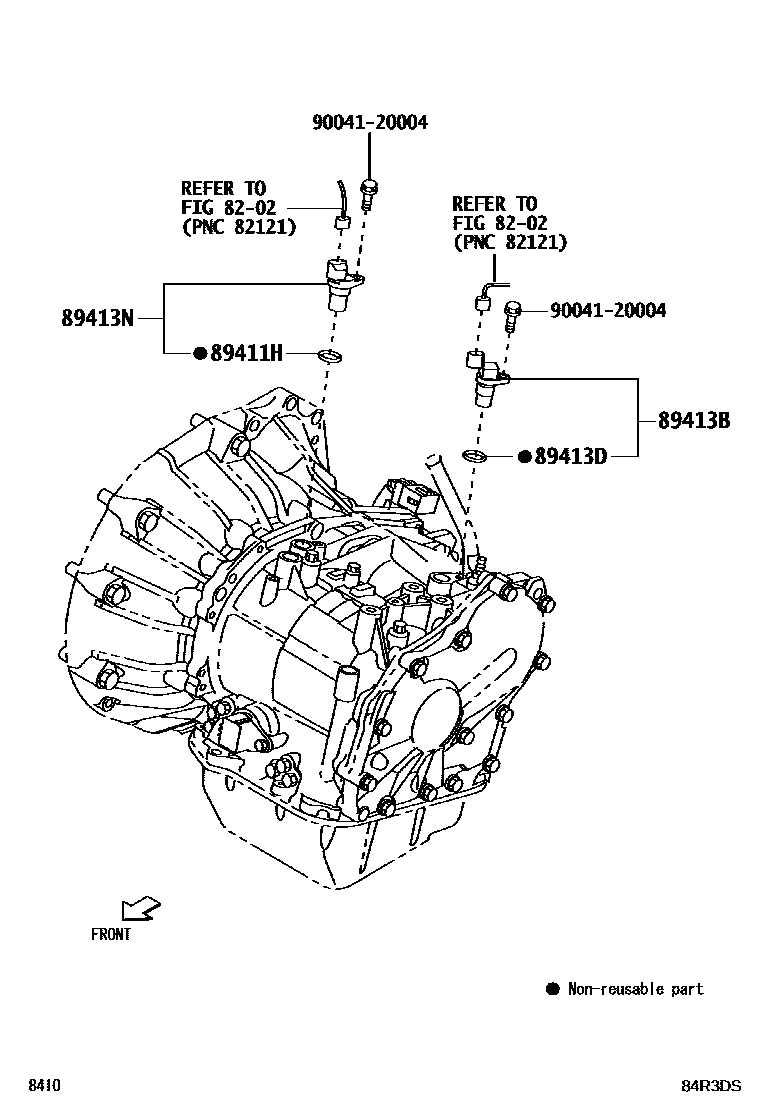

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8202WIRING & CLAMP

→ Go to FIG 82-02

89411HRING, O

main90043-01278iB10#..ATM201704-202003

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-97202iB10#..ATM201704-202003

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iB10#..ATM201704-202003

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-B1040iB10#..ATM201704-202003

9004120004

main90041-20004

6 parts on this diagram · 1 diagram in section
