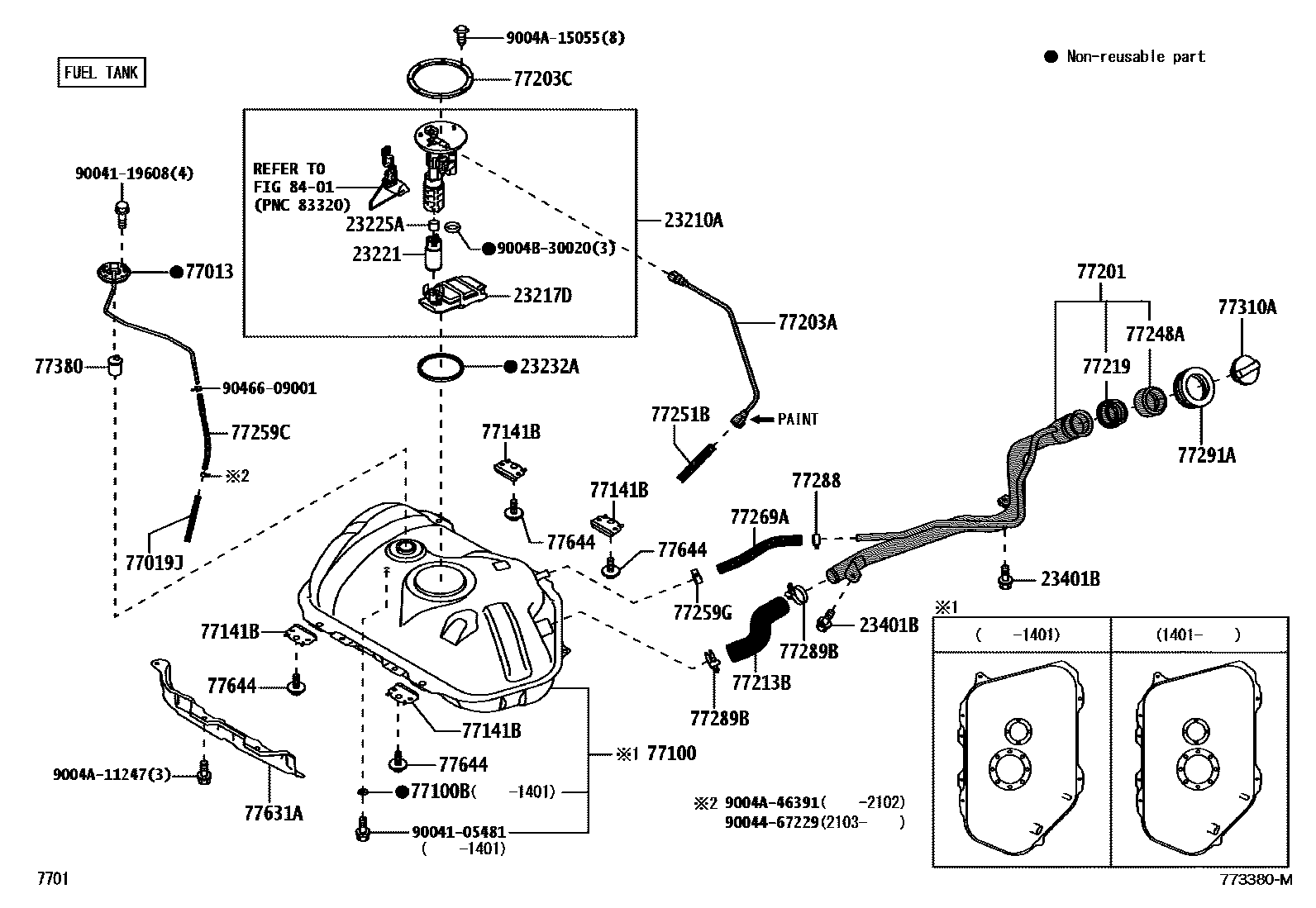

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-BZ170i1KRDE..B100201212-201704

main23210-BZ350i1KRVE,3NRVE..B10#201704-202003

23217DFILTER, FUEL PUMP

main23217-BZ010i1KRVE,3NRVE..B10#202003

23221PUMP, FUEL

main23100-BZ150i1KRVE,3NRVE..B10#201704-202003

23225ASPACER, FUEL PUMP

main9004B-56003i1KRVE,3NRVE..B10#201704-202003

23232AGASKET, FUEL PUMP

main23232-BZ010i1KRVE,3NRVE..B10#201704-202003

23401BBOLT

main90041-20137×2i1KRVE,3NRVE..B10#201704-202003

main91551-A0816×2i1KRDE..B100201212-201606

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ080iB10#202003

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-BZ060iB100..WIGO201401-201704

main77019-BZ110iB100..AGYA201212-201704

main77019-BZ170iB10#..AGYA202003

main77019-BZ240iB10#..WIGO202003

77100TANK ASSY, FUEL

main77001-BZ240iB100201212-201401

main77001-BZ300iB100201401-201704

main77001-BZ570iB10#202005

77100BGASKET(FOR FUEL TANK)

main90044-30291iB100201212-201401

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ140×4iB10#202003-202004

main77141-BZ240×4iB10#202005

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ150iB10#202003

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ070iB100201212-201401

PAINTED=ORANGE

main77203-BZ130iB10#201704-202003

PAINTED=WHITE

77203CBRACKET, FUEL PUMP

main23265-BZ010iB10#201704-202003

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ110iB100201212-201612

main77213-BZ220iB10#201704-202003

77219COVER, FUEL TANK FILLER PIPE

main77219-20070×2iB10#201704-202003

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iB10#202003

77251BTUBE, FUEL MAIN

main77251-BZ170iB100..AGYA201212-201704

main77251-BZ230iB100..WIGO201401-201704

main77251-BZ270iB101201704-202003

main77251-BZ340iB100201704-202003

77259CHOSE, FUEL

main77259-BZ060iB10#202003

77259GCLIP, FUEL HOSE

main90044-67244iB10#201704-202003

77269AHOSE, FUEL TANK BREATHER

main77269-B0010iB100201212-201512

main77269-BZ170iB10#201704-202003

77288CLAMP, BREATHER HOSE

main90044-67244iB10#201704-202003

main90460-22002iB10#202103

77289BCLAMP, FUEL TUBE, NO.3

main96111-30440×2iB10#202003

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ040iB100201212-201405

main77291-BZ041iB10#201704-202003

77310ACAP ASSY, FUEL TANK

main77300-52030iB10#201704-202003

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iB10#201704-202003

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ070iB10#201704-202003

77644BOLT, FUEL TANK

main90041-20155×4iB100201212-201601

main90041-20292×4iB10#202003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105481

main90041-05481

9004119608

main90041-19608

9004467229

main90044-67229

9004A11247

main9004A-11247

9004A15055

main9004A-15055

9004A46391

main9004A-46391

9004B30020

main9004B-30020

9046609001

main90466-09001

37 parts on this diagram · 4 diagrams in section
