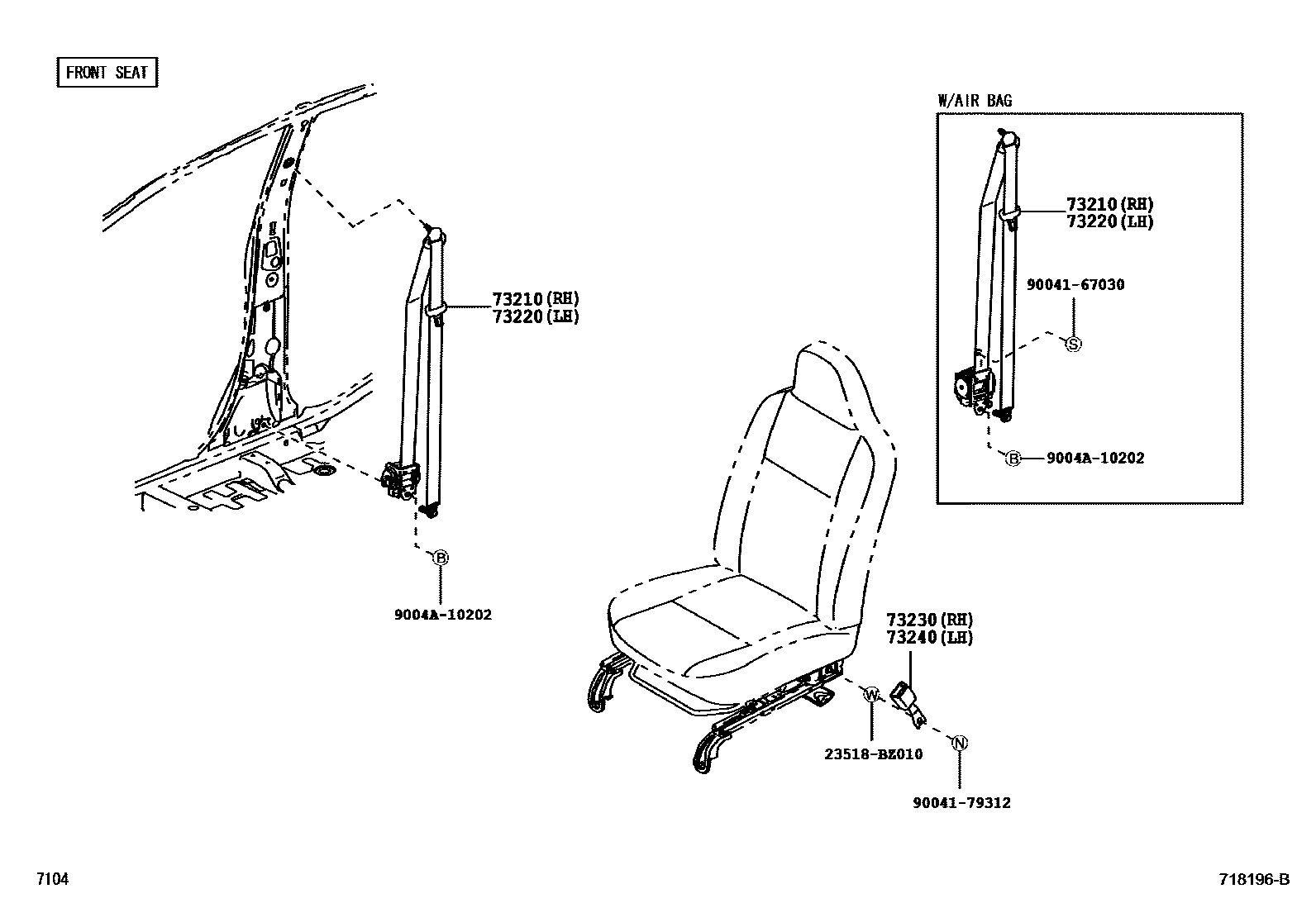

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ380-B0iB100..AGYA201212-201704

-,TRIM1#

main73210-BZ390-B0iB10#201704-202003

-,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ360-B0iB100..AGYA201212-201704

-,TRIM1#

main73220-BZ370-B0iB10#201704-202003

-,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ500-B0iB10#202003

DK.GRAY,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ500-B0iB100201212-201704

DK.GRAY,TRIM1#

main73230-BZ520-B0iB10#201704-202003

DK.GRAY,TRIM1#

23518BZ010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ010

9004167030

main90041-67030

9004179312

main90041-79312

9004A10202

main9004A-10202

8 parts on this diagram · 3 diagrams in section
