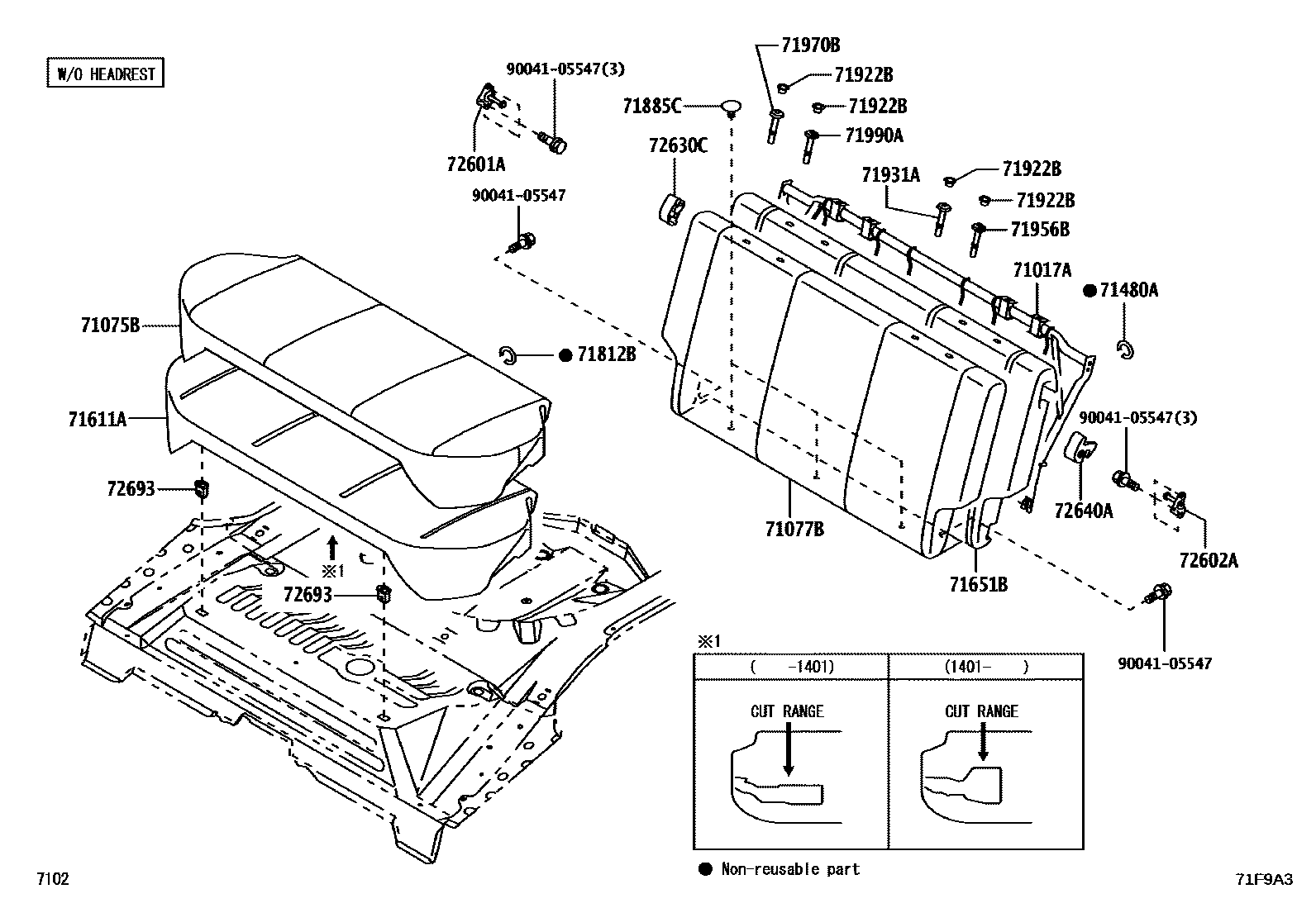

REAR SEAT & SEAT TRACK

0001 1W/O HEADREST 0002 1W/ HEADREST 0003 1 0004 1

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-BZ260iB100201212-201704

main71017-BZ350iB10#202003

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-BZA60-B1iB100..LO201212-201401

-,TRIM1#

main71075-BZA70-B1iB100..HI,MID201212-201401

-,TRIM1#

main71075-BZC70-B0iB100..LO201401-201704

GRAY,TRIM1#

main71075-BZC80-B0iB100..HI,MID201401-201704

GRAY,TRIM1#

main71075-BZJ00-C0iB10#201704-202003

-,TRIM1#

main71075-BZL70-C0iB10#202003

BLACK,TRIM2#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-BZ850-B0iB100..LO201212-201401

GRAY,TRIM1#

main71077-BZ860-B2iB100..HI,MID201212-201401

GRAY,TRIM1#

main71077-BZB20-B0iB100..LO201401-201504

BLACK,TRIM1#

main71077-BZB30-B0iB100..HI,MID201401-201504

BLACK,TRIM1#

main71077-BZE20-B0iB100..LO201504-201704

GRAY,TRIM1#

main71077-BZE30-B0iB100..HI,MID201504-201704

GRAY,TRIM1#

main71077-BZF90-C0iB10#201704-202003

-,TRIM1#

main71077-BZK80-C1iB10#202003

BLACK,TRIM2#

71480ACLIP (FOR REAR SEATBACK)

main90468-18008×4iB100201504-201704

main90468-18071×9iB100..HI,MID201212-201401

71611APAD, REAR SEAT CUSHION, RH

main71503-BZ350iB100201212-201401

main71503-BZ421iB10#201704-202003

main71503-BZ590iB10#202003

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-BZ290iB100201212-201401

main71507-BZ320iB100201401-201704

main71507-BZ440iB10#201704-202003

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18008×60supersedes 90468-18071iB10#201704-202003

main90468-18071×27iB100..HI,MID201212-201401

71885CCLIP(FOR REAR SEATBACK CARPET)

main90044-67414-C0×3iB10#201704-202003

-

71922BCOVER, REAR SEAT HEADREST UNDER

main71991-BZ010-B0×4iB100..LO201212-201704

DK.GRAY,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71931-87Z08-B0iB100201212-201704

W/O(LOCK),DK.GRAY,TRIM1#

main71970-47010-B2×3iB10#202003

W(LOCK),DK.GRAY,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-87Z09-B0iB100201212-201704

W(LOCK),DK.GRAY,TRIM1#

main71956-47010-B2×3iB10#201704-202003

W/O(LOCK),DK.GRAY,TRIM1#

71970HEADREST ASSY, REAR SEAT

main71940-BZ590-B0×2iB100..HI,MID201212-201704

DK.GRAY,TRIM1#

main71940-BZB70-C0×2iB10#202003

-,TRIM2#

main71940-BZ450-B0×2iB100..LO201212-201704

REAR SEAT-BENCH SEAT(W/HEADREST),DK.GRAY,TRIM1#

71970BSUPPORT ASSY, REAR SEAT HEADREST, RH

main71930-87Z09-B0iB100201212-201704

DK.GRAY,TRIM1#

71990ASUPPORT ASSY, REAR SEAT HEADREST, LH

main71931-87Z08-B0iB100201212-201704

DK.GRAY,TRIM1#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-BZ030iB10#202003

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-BZ030iB10#201704-202003

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-BZ040-B0iB10#202003

DK.GRAY,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-BZ050-B0iB10#202003

DK.GRAY,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-97201×2iB100201212-201511

main72693-BZ020×2iB10#201704-202003

9004105547

main90041-05547

20 parts on this diagram · 4 diagrams in section
