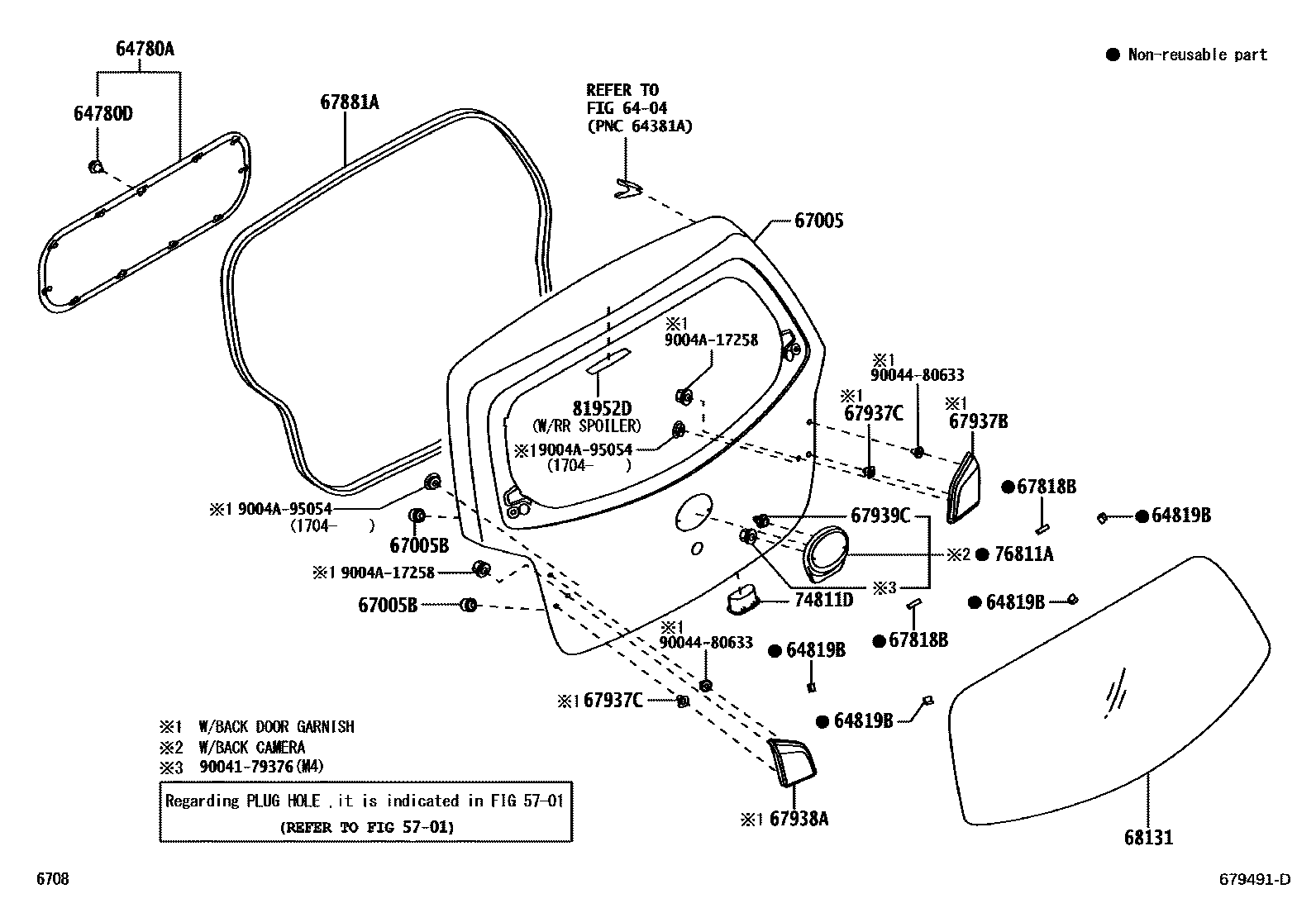

BACK DOOR PANEL & GLASS
5701HOLE PLUG
6404DECK BOARD & DECK TRIM COVER
64780APANEL ASSY, BACK DOOR TRIM
DK.GRAY,TRIM1#
64780DRETAINER(FOR BACK DOOR TRIM BOARD)
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
W/O POWER DOOR LOCK
W/O RR WIPER
W/RR WIPER
LEBANON,W/O RR WIPER; TRD,W/O RR WIPER
67005BCUSHION(FOR BACK DOOR PANEL)
67818BSPACER, BACK WINDOW GLASS
67881AWEATHERSTRIP, BACK DOOR
67937BGARNISH, BACK DOOR SIDE, RH
67937CCLIP(FOR BACK DOOR SIDE GARNISH)
67938AGARNISH, BACK DOOR SIDE, LH
67939CCLIP(FOR BACK DOOR CENTER GARNISH)
GENERAL EXP(W/HEATER); GENERAL EXP(W/O HEATER); GHANA; LEBANON; TUNISIA
68131GLASS, BACK DOOR
W/ DEFOGGER
W/O DEFOGGER
74811DHANDLE, DOOR PULL
76811AGARNISH, BACK DOOR, OUTSIDE
GENERAL EXP(W/HEATER),WHITE,W09; GENERAL EXP(W/O HEATER),WHITE,W09; GHANA,WHITE,W09; LEBANON,WHITE,W09; TUNISIA,WHITE,W09
GENERAL EXP(W/HEATER),SILVER ME.,S28; GENERAL EXP(W/O HEATER),SILVER ME.,S28; GHANA,SILVER ME.,S28; LEBANON,SILVER ME.,S28; TUNISIA,SILVER ME.,S28
GENERAL EXP(W/HEATER),GRAY ME.,1G3; GENERAL EXP(W/O HEATER),GRAY ME.,1G3; GHANA,GRAY ME.,1G3; LEBANON,GRAY ME.,1G3; TUNISIA,GRAY ME.,1G3
GENERAL EXP(W/HEATER),BLACK,X13; GENERAL EXP(W/O HEATER),BLACK,X13; GHANA,BLACK,X13; LEBANON,BLACK,X13; TUNISIA,BLACK,X13
GENERAL EXP(W/HEATER),RED,R40; GENERAL EXP(W/O HEATER),RED,R40; GHANA,RED,R40; LEBANON,RED,R40; TUNISIA,RED,R40
GENERAL EXP(W/HEATER),ORANGE ME.,R71; GENERAL EXP(W/O HEATER),ORANGE ME.,R71; GHANA,ORANGE ME.,R71; LEBANON,ORANGE ME.,R71; TUNISIA,ORANGE ME.,R71
GENERAL EXP(W/HEATER),YELLOW SE.,Y13; GENERAL EXP(W/O HEATER),YELLOW SE.,Y13; GHANA,YELLOW SE.,Y13; LEBANON,YELLOW SE.,Y13; TUNISIA,YELLOW SE.,Y13
81952DCOVER, REAR LAMP
GRADE PACKAGE-TRD
9004179376
main90041-79376
9004480633
main90044-80633
9004A17258
main9004A-17258
9004A95054
main9004A-95054
21 parts on this diagram · 1 diagram in section
