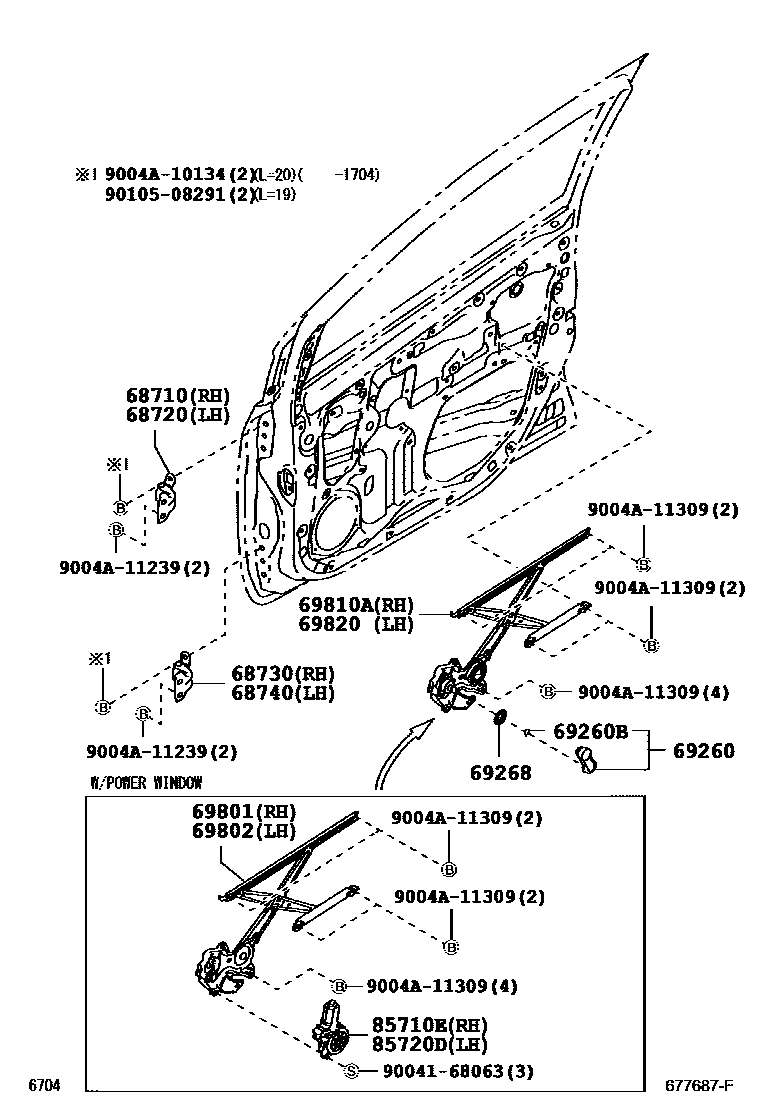

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68750-BZ010iB10#201704-202003

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68760-BZ010iB10#201704-202003

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68760-BZ010iB10#201704-202003

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68750-BZ010iB10#201704-202003

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-87Z03-B0×2iB100..LO201212-201704

DK.GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×8iB100..LO201212-201704

69268PLATE, WINDOW REGULATOR HANDLE

main69268-BZ020-B0×2iB100..LO201212-201704

DK.GRAY,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ150iB10#201704-202003

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ150iB10#201704-202003

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-BZ240iB100..LO201212-201704

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-BZ210iB100..LO201212-201704

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ041iB100..HI,MID201212-201704

main85710-BZ042iB10#201704-202003

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ041iB100..HI,MID201212-201704

main85720-BZ042iB10#201704-202003

9004168063

main90041-68063

9004A10134

main9004A-10134

9004A11239

main9004A-11239

9004A11309

main9004A-11309

9010508291

main90105-08291

18 parts on this diagram · 2 diagrams in section
