FRONT DOOR LOCK & HANDLE

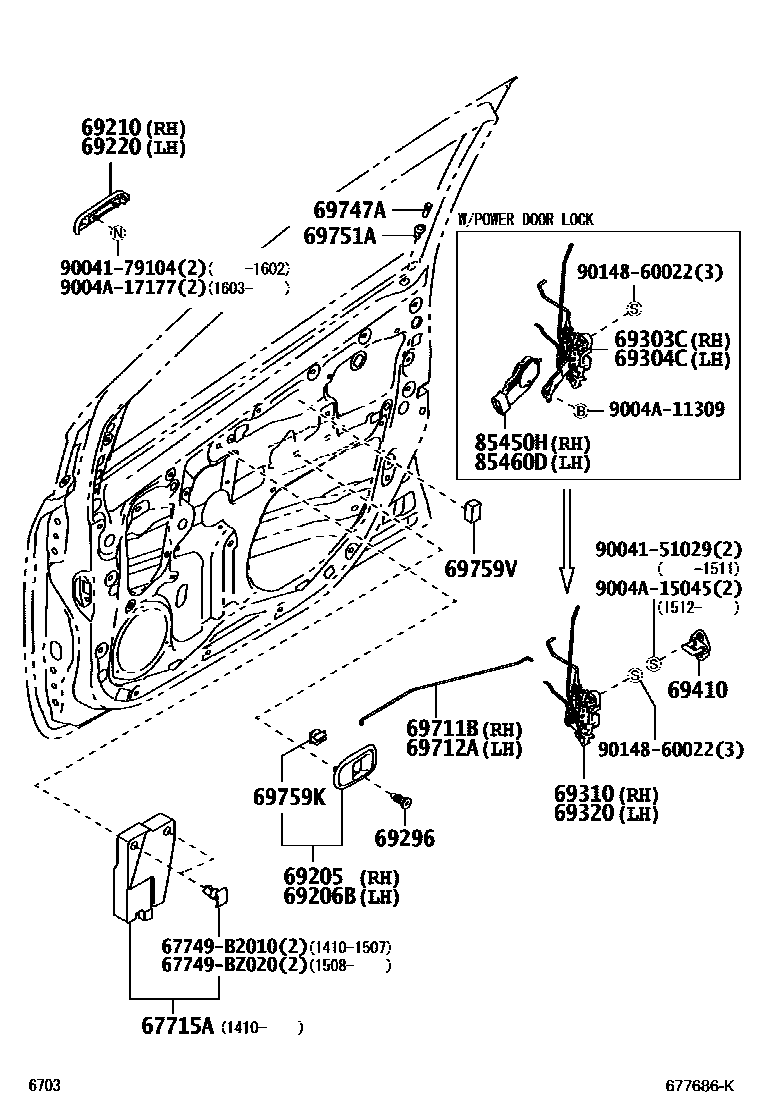

Parts diagram

67715APAD, FRONT DOOR TRIM

main75787-BZ010i202003

RH

main75788-BZ010i201704-202003

LH

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ012-B0i201212-201704

DK.GRAY,TRIM1#

main69270-BZ052-B0i201212-201704

DK.GRAY,TRIM1#

main69270-BZ091-C0i202003

BLACK,TRIM2#; LEBANON,BLACK,TRIM2#

main69270-BZ130-C0i202003

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ012-B0i201212-201704

DK.GRAY,TRIM1#

main69280-BZ052-B0i201212-201704

DK.GRAY,TRIM1#

main69280-BZ091-C0i202003

BLACK,TRIM2#; LEBANON,BLACK,TRIM2#

main69280-BZ130-C0i202003

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ020i201212-201704

NO PAINT REQ.

main69210-BZ230i201401-201704

PLATED

main69210-BZ320-A0i202003

WHITE,W09

main69210-BZ320-B0i201704-202003

SILVER M.M.,1E7

main69210-BZ320-B1i201704-202003

GRAY ME.,1G3

main69210-BZ320-B2i202003

SILVER ME.,S28

main69210-BZ320-C0i201704-202003

BLACK,X13

main69210-BZ320-D0i202003

RED,R40

main69210-BZ320-D1i201704-202003

ORANGE ME.,R71

main69210-BZ320-F0i201704-202003

YELLOW,Y07

main69210-BZ320-F1i202003

YELLOW SE.,Y13

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ020i201212-201704

NO PAINT REQ.

main69220-BZ230i201401-201704

PLATED

main69220-BZ310-A0i201704-202003

WHITE,W09

main69220-BZ310-B0i201704-202003

SILVER M.M.,1E7

main69220-BZ310-B1i201704-202003

GRAY ME.,1G3

main69220-BZ310-B2i202003

SILVER ME.,S28

main69220-BZ310-C0i201704-202003

BLACK,X13

main69220-BZ310-D0i202003

RED,R40

main69220-BZ310-D1i202003

ORANGE ME.,R71

main69220-BZ310-F0i201704-202003

YELLOW,Y07

main69220-BZ310-F1i202003

YELLOW SE.,Y13

69296SCREW, DOOR INSIDE HANDLE

main90041-67041i201212-201704

main9004A-16093i202003

69303CLOCK SUB-ASSY, FRONT DOOR, RH

main69303-BZ060i201212-201704

main69303-BZ080i201401-201704

69304CLOCK SUB-ASSY, FRONT DOOR, LH

main69304-BZ060i201401-201704

main69304-BZ080i201212-201704

69310LOCK ASSY, FRONT DOOR, RH

main69310-BZ160i201212-201704

main69310-BZ320i201704-201807

main69310-BZ321i201808-202003

main69310-BZ322i202007

main69310-BZ330i201704-201807

main69310-BZ331i202003-202006

main69310-BZ332i202007

69320LOCK ASSY, FRONT DOOR, LH

main69320-BZ140i201212-201704

main69320-BZ280i201704-201807

main69320-BZ281i201808-202003

main69320-BZ282i202007

main69320-BZ290i201704-201807

main69320-BZ291i202003-202006

main69320-BZ292i202007

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-BZ010×2i201704-202003

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ050i201212-201704

main69711-BZ110i202003

main69711-BZ120i202003

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-BZ050i201212-201704

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69743-BZ040-B0×2i201212-201704

GRAY,TRIM1#

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-87704-B0×2i201212-201704

DK.GRAY,TRIM1#

main69751-BZ040-B0×2i201212-201704

DK.GRAY,TRIM1#

69759KSNAP, DOOR LOCK CONTROL LINK

main69279-BZ010×4i201212-201704

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-87Z02×2i201212-201704

85450HMOTOR ASSY, DOOR CONTROL, FRONT RH

main85450-BZ090i201401-201704

main85450-BZ110i201212-201704

85460DMOTOR ASSY, DOOR CONTROL, FRONT LH

main85460-BZ070i201401-201704

main85460-BZ080i201401-201704

main85460-BZ090i201212-201704

67749B2010CLIP, DOOR TRIM MOULDING

main67749-B2010

67749BZ020CLIP, DOOR TRIM MOULDING

main67749-BZ020

9004151029

main90041-51029

9004179104

main90041-79104

9004A11309

main9004A-11309

9004A15045

main9004A-15045

9004A17177

main9004A-17177

9014860022

main90148-60022
