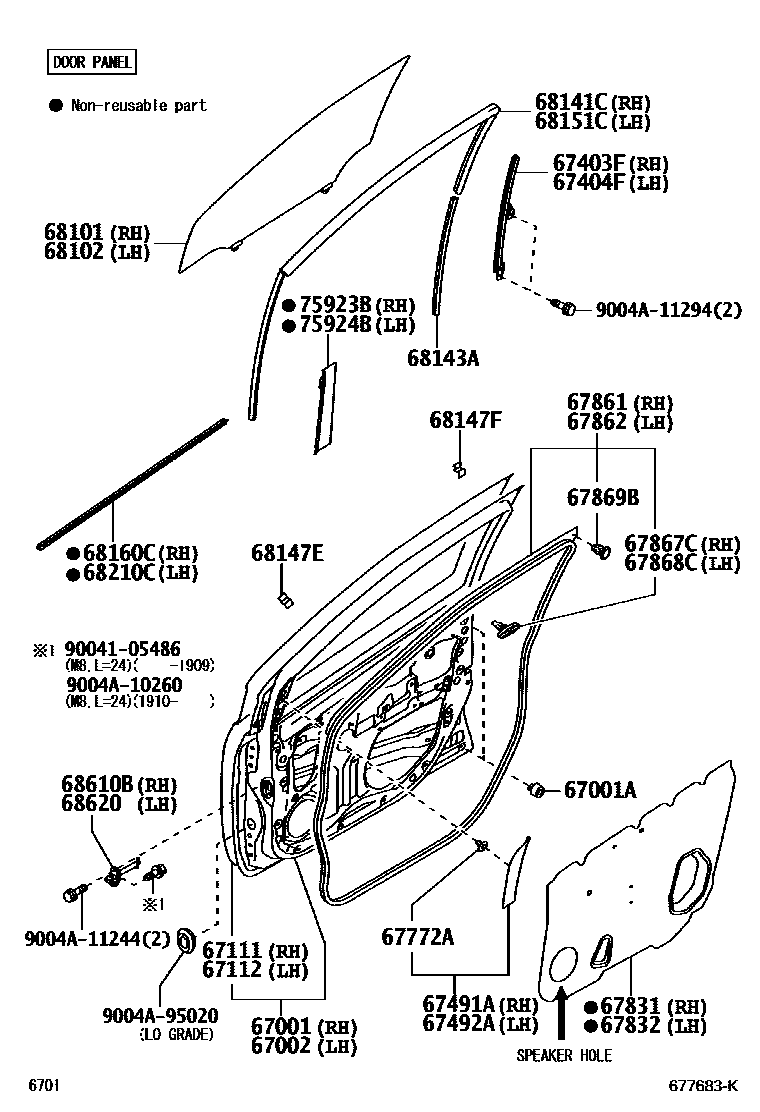

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
GRADE PACKAGE-TRD
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
GRADE PACKAGE-TRD
67111PANEL, FRONT DOOR, OUTER RH
GRADE PACKAGE-TRD
67112PANEL, FRONT DOOR, OUTER LH
GRADE PACKAGE-TRD
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67772ACAP, FRONT DOOR TRIM RETAINER
67831COVER, FRONT DOOR SERVICE HOLE, RH
W/O SPEAKER HOLE
W/ SPEAKER HOLE
W/O SPEAKER HOLE
W/ SPEAKER HOLE
67832COVER, FRONT DOOR SERVICE HOLE, LH
W/O SPEAKER HOLE
W/ SPEAKER HOLE
W/O SPEAKER HOLE
W/ SPEAKER HOLE
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
T=3.1, GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
T=3.1,GREEN
68147ESTOP, FRONT DOOR GLASS, UPPER
68147FSTOP, FRONT DOOR GLASS, UPPER
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
75923BTAPE, BLACK OUT, NO.2 RH
TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09 ,Y07
TUYAKESI BLACK DUMMYCOLOR,1G3 ,R40 ,R71 ,S28 ,W09 ,Y13
TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B60 ,B74 ,R40 ,S37 ,W09
TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,W09 ,Y07
75924BTAPE, BLACK OUT, NO.2 LH
TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,W09 ,Y07
TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09 ,Y07
TUYAKESI BLACK DUMMYCOLOR,1G3 ,R40 ,R71 ,S28 ,W09 ,Y13
TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B60 ,B74 ,R40 ,S37 ,W09
9004105486
main90041-05486
9004A10260
main9004A-10260
9004A11244
main9004A-11244
9004A11294
main9004A-11294
9004A95020
main9004A-95020
35 parts on this diagram · 3 diagrams in section
