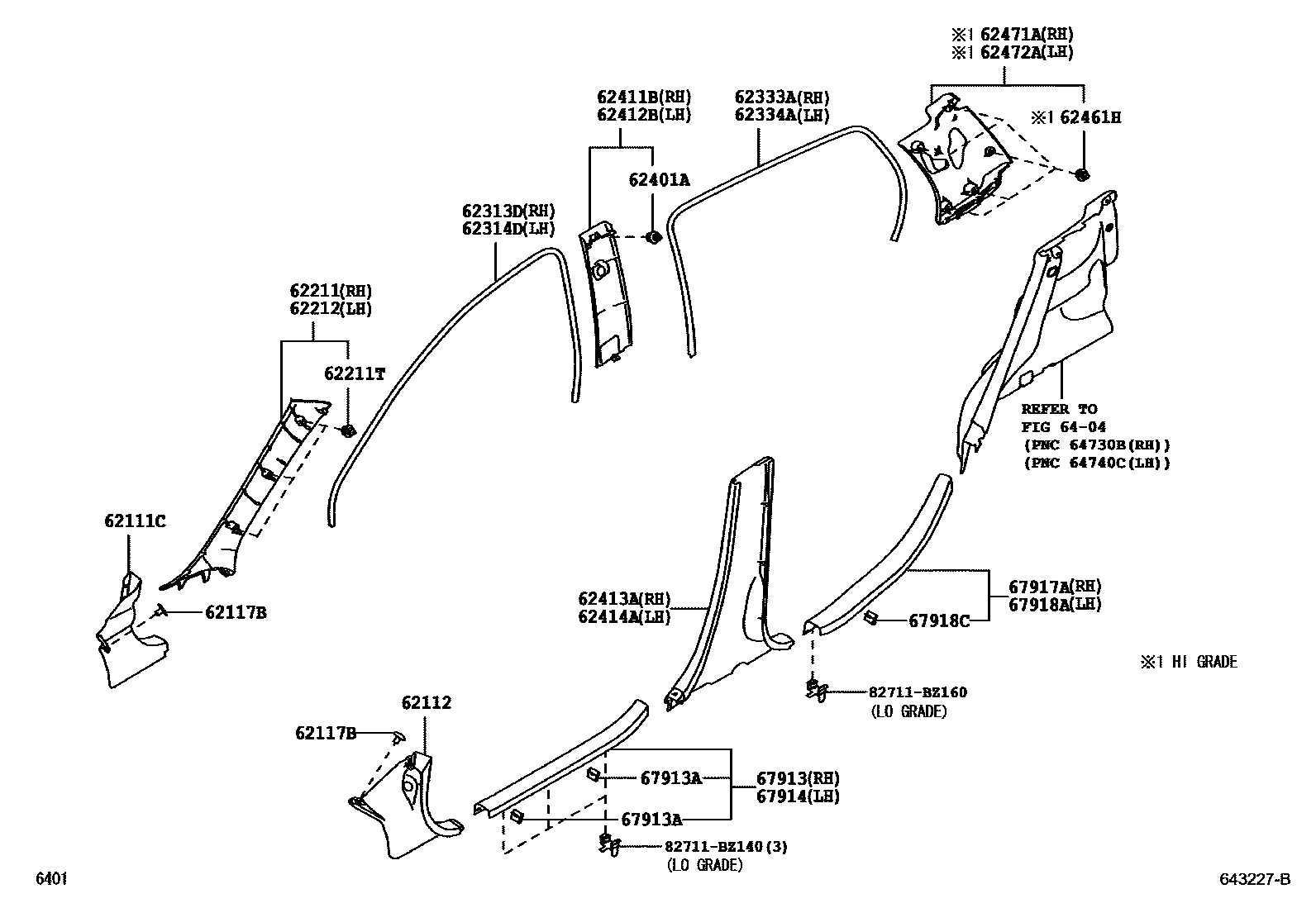

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ190-B0iB10#..AGYA201212-201912

DK.GRAY,TRIM1#

sub62111-BZ190

main62111-BZ190-C0iB10#..AGYA201912-202003

BLACK,TRIM1#

sub62111-BZ190

main62111-BZ200-B0iB10#..WIGO201912-202003

DK.GRAY,TRIM10

main62111-BZ200-B0iB10#..WIGO201401-201912

DK.GRAY,TRIM1#

main62111-BZ200-C0iB10#..WIGO201912-202003

BLACK,TRIM10

main62111-BZ310-C0iB10#..AGYA202003

BLACK,TRIM2#

main62111-BZ320-C0iB10#..WIGO202003

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ190-B0iB100..AGYA201212-201610

DK.GRAY,TRIM1#

sub62112-BZ191

main62112-BZ191-B0iB10#..AGYA201611-201912

DK.GRAY,TRIM1#

sub62112-BZ191

main62112-BZ191-C0iB10#..AGYA201912-202003

BLACK,TRIM1#

sub62112-BZ191

main62112-BZ200-B0iB100..WIGO201401-201610

DK.GRAY,TRIM1#

sub62112-BZ201

main62112-BZ201-B0iB100..WIGO201611-201912

DK.GRAY,TRIM1#

main62112-BZ201-B0iB10#..WIGO201912-202003

DK.GRAY,TRIM10

main62112-BZ201-C0iB10#..WIGO201912-202003

BLACK,TRIM10

main62112-BZ290-C0iB10#..AGYA202003

BLACK,TRIM2#

main62112-BZ300-C0iB10#..WIGO202003

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46131-B0iB100201212-201702

DK.GRAY,TRIM1#

main9004A-46131-C1iB100201702-202003

BLACK,TRIM1#

main9004A-46131-C1iB10#202003

BLACK,TRIM2#

62211GARNISH, FRONT PILLAR, RH

main62211-BZ200-B0iB10#201212-202003

LT.GRAY,TRIM1#

main62211-BZ200-B0iB10#202003

LT.GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main9004A-46275iB10#201212-202003

62212GARNISH, FRONT PILLAR, LH

main62212-BZ200-B0iB10#201212-202003

LT.GRAY,TRIM1#

main62212-BZ200-B0iB10#202003

LT.GRAY,TRIM2#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-BZ120iB100201212-201410

main62313-BZ121iB100201410-201704

main62313-BZ240iB10#201704-202003

62314DTRIM, FRONT DOOR OPENING, LH

main62313-BZ120iB100201212-201410

main62314-BZ120iB100201410-201704

main62314-BZ170iB10#201704-202003

62333ATRIM, REAR DOOR OPENING, RH

main62333-BZ070iB100..LO,MID201212-201410

main62333-BZ071iB100..LO,MID201410-201704

main62333-BZ150iB100..HI201212-201410

main62333-BZ151iB100..HI201410-201704

main62333-BZ270iB10#201704-202003

62334ATRIM, REAR DOOR OPENING, LH

main62333-BZ070iB100..LO,MID201212-201410

main62333-BZ071iB100..LO,MID201410-201704

main62333-BZ150iB100..HI201212-201410

main62333-BZ151iB100..HI201410-201704

main62334-BZ130iB10#201704-202003

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main9004A-46275iB10#201212-202003

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-BZ110-B0iB10#201212-202003

LT.GRAY,TRIM1#

main62411-BZ110-B0iB10#202003

LT.GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ110-B0iB100201212-202003

LT.GRAY,TRIM1#

main62412-BZ110-B0iB10#202003

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ160-B0iB100201212-201704

DK.GRAY,TRIM1#

main62413-BZ240-B0iB10#201704-202003

DK.GRAY,TRIM1#

main62413-BZ240-C0iB10#202003

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ160-B0iB100201212-201704

DK.GRAY,TRIM1#

main62414-BZ240-B0iB10#201704-202003

DK.GRAY,TRIM1#

main62414-BZ240-C0iB10#202003

BLACK,TRIM2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main9004A-46275iB10#201212-202003

62471AGARNISH, ROOF SIDE, INNER RH

main62471-BZ260-B0iB100..HI201212-201704

LT.GRAY,TRIM1#

main62471-BZ270-B0iB10#201704-202003

LT.GRAY,TRIM1#

main62471-BZ270-B0iB10#202003

LT.GRAY,TRIM2#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-BZ260-B0iB10#201212-202003

LT.GRAY,TRIM1#

main62472-BZ260-B0iB10#202003

LT.GRAY,TRIM2#

6404

67913PLATE, FRONT DOOR SCUFF, RH

main67913-BZ120-B0iB100201212-201704

DK.GRAY,TRIM1#

sub67913-BZ120

main67913-BZ160-B0iB10#201704-201912

DK.GRAY,TRIM1#

sub67913-BZ160

main67913-BZ160-C0iB10#201912-202003

BLACK,TRIM1#

sub67913-BZ160

main67913-BZ160-C0iB10#202003

BLACK,TRIM2#

sub67913-BZ160

67913ACLIP(FOR SCUFF PLATE)

main90044-68288iB10#201212-202003

67914PLATE, FRONT DOOR SCUFF, LH

main67914-BZ120-B0iB100201212-201704

DK.GRAY,TRIM1#

sub67914-BZ120

main67914-BZ160-B0iB10#201704-201912

DK.GRAY,TRIM1#

sub67914-BZ160

main67914-BZ160-C0iB10#202003

BLACK,TRIM2#

sub67914-BZ160

main67914-BZ160-C0iB10#201912-202003

BLACK,TRIM1#

sub67914-BZ160

67917APLATE, REAR DOOR SCUFF, RH

main67917-BZ130-B0iB100201212-201606

DK.GRAY,TRIM1#

sub67917-BZ131

main67917-BZ131-B0iB10#201607-201912

DK.GRAY,TRIM1#

sub67917-BZ131

main67917-BZ131-C0iB10#201912-202003

BLACK,TRIM1#

sub67917-BZ131

main67917-BZ131-C0iB10#202003

BLACK,TRIM2#

sub67917-BZ131

67918APLATE, REAR DOOR SCUFF, LH

main67918-BZ130-B0iB100201212-201606

DK.GRAY,TRIM1#

sub67918-BZ131

main67918-BZ131-B0iB10#201607-201912

DK.GRAY,TRIM1#

sub67918-BZ131

main67918-BZ131-C0iB10#201912-202003

BLACK,TRIM1#

sub67918-BZ131

main67918-BZ131-C0iB10#202003

BLACK,TRIM2#

sub67918-BZ131

67918CCLIP(FOR REAR SCUFF PLATE)

main90044-68288iB100201212-202003

82711BZ140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-BZ140

82711BZ160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-BZ160

27 parts on this diagram · 2 diagrams in section
