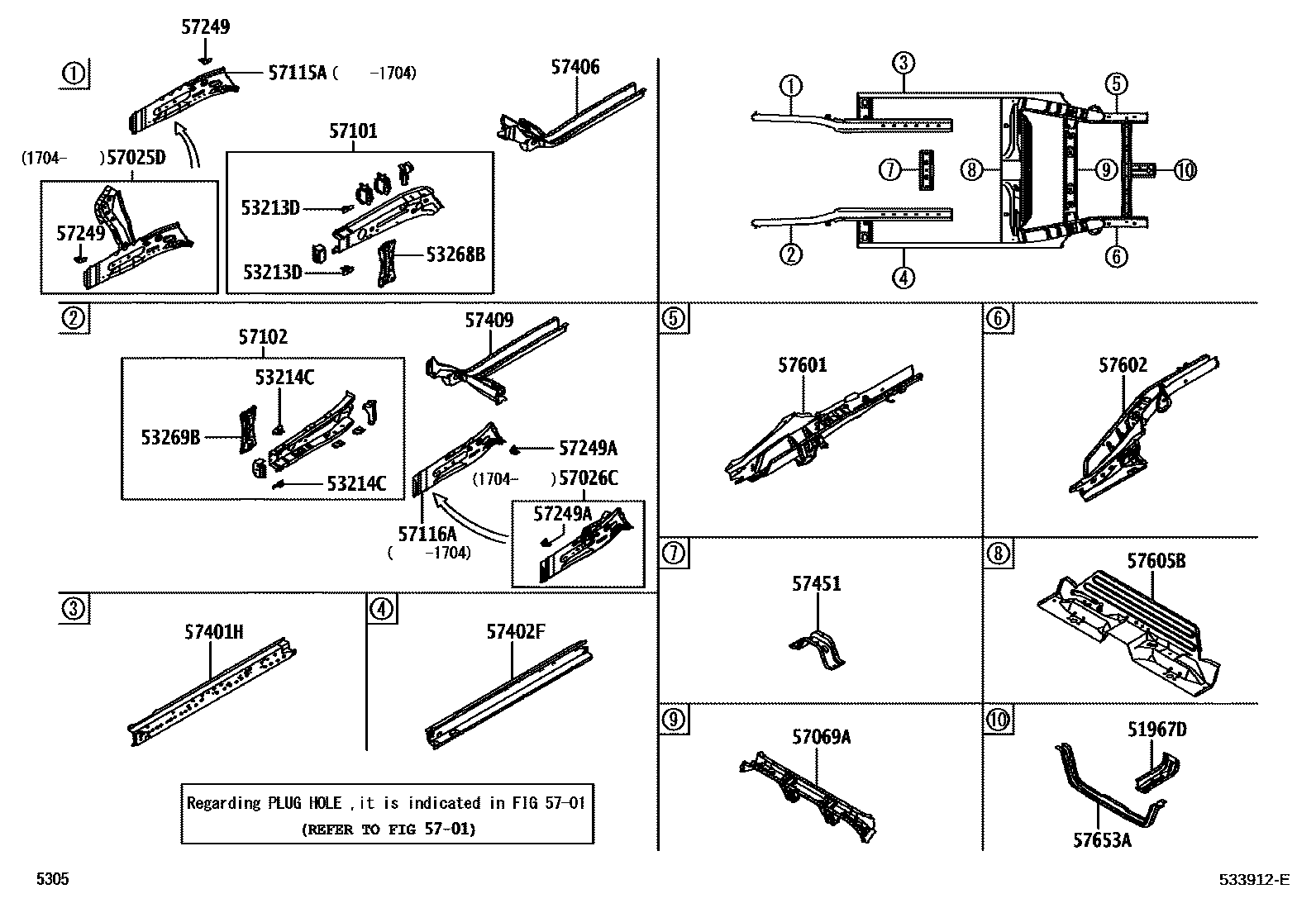

FLOOR SIDE MEMBER

51967DHOOK SUB-ASSY,REAR

main51095-BZ040iB10#201704-201707

main51095-BZ080iB10#201708-202003

53213DSUPPORT, RADIATOR, UPPER RH

main53213-BZ060×2iB10#201704-202003

53214CSUPPORT, RADIATOR, UPPER LH

main53213-BZ060×2iB100201212-201704

53268BREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-BZ080iB10#201704-201807

main53268-BZ110iB10#201808-202003

53269BREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-BZ020iB100201212-201704

main53269-BZ060iB10#201808-202003

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-BZ060iB10#202003

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-BZ070iB10#201704-202003

57069AMEMBER, REAR FLOOR, CENTER

main57069-BZ080iB100201212-201504

main57069-BZ081iB10#202003

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ390iB100201212-201501

main57101-BZ391iB100201501-201704

main57101-BZ570iB10#201704-202003

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ480iB100201212-201704

main57102-BZ650iB10#202003

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-BZ030iB100201212-201704

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-BZ080iB100201212-201704

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-BZ020iB10#201704-202003

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-BZ020iB10#201704-202003

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-BZ160iB100..WIGO201212-201704

main57401-BZ290iB100..AGYA201504-201704

main57401-BZ390iB10#..WIGO202003

main57401-BZ400iB10#..AGYA202003

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-BZ160iB100..AGYA201212-201704

main57402-BZ310iB100..WIGO201504-201704

main57402-BZ400iB10#..WIGO201704-202003

main57402-BZ410iB10#..AGYA201704-202003

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ010iB100201212-201704

main57406-BZ220iB10#202003

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ120iB100201212-201704

main57409-BZ190iB10#201704-202003

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ110iB100201212-201704

main57451-BZ150iB10#202003

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-BZ220iB100201212-201410

main57601-BZ340iB100..WIGO201410-201504

main57601-BZ380iB100..WIGO201504-201704

main57601-BZ430iB10#..AGYA201704-202003

main57601-BZ440iB10#..WIGO201704-202003

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-BZ150iB100201212-201410

main57602-BZ320iB100..WIGO201410-201504

main57602-BZ370iB100..WIGO201504-201704

main57602-BZ410iB10#..AGYA202003

main57602-BZ420iB10#..WIGO202003

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-BZ090iB100201212-201704

main57605-BZ150iB10#202003

main57605-BZ160iB10#..WIGO; B100..ATM;B100..MTM..WIGO;B101..ATM..AGYA; B101..WIGO;B100..MTM..MIDS..WIGO202003

GENERAL EXP(W/HEATER); GENERAL EXP(W/O HEATER); TUNISIA

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-BZ090iB10#201704-202003

24 parts on this diagram · 1 diagram in section
