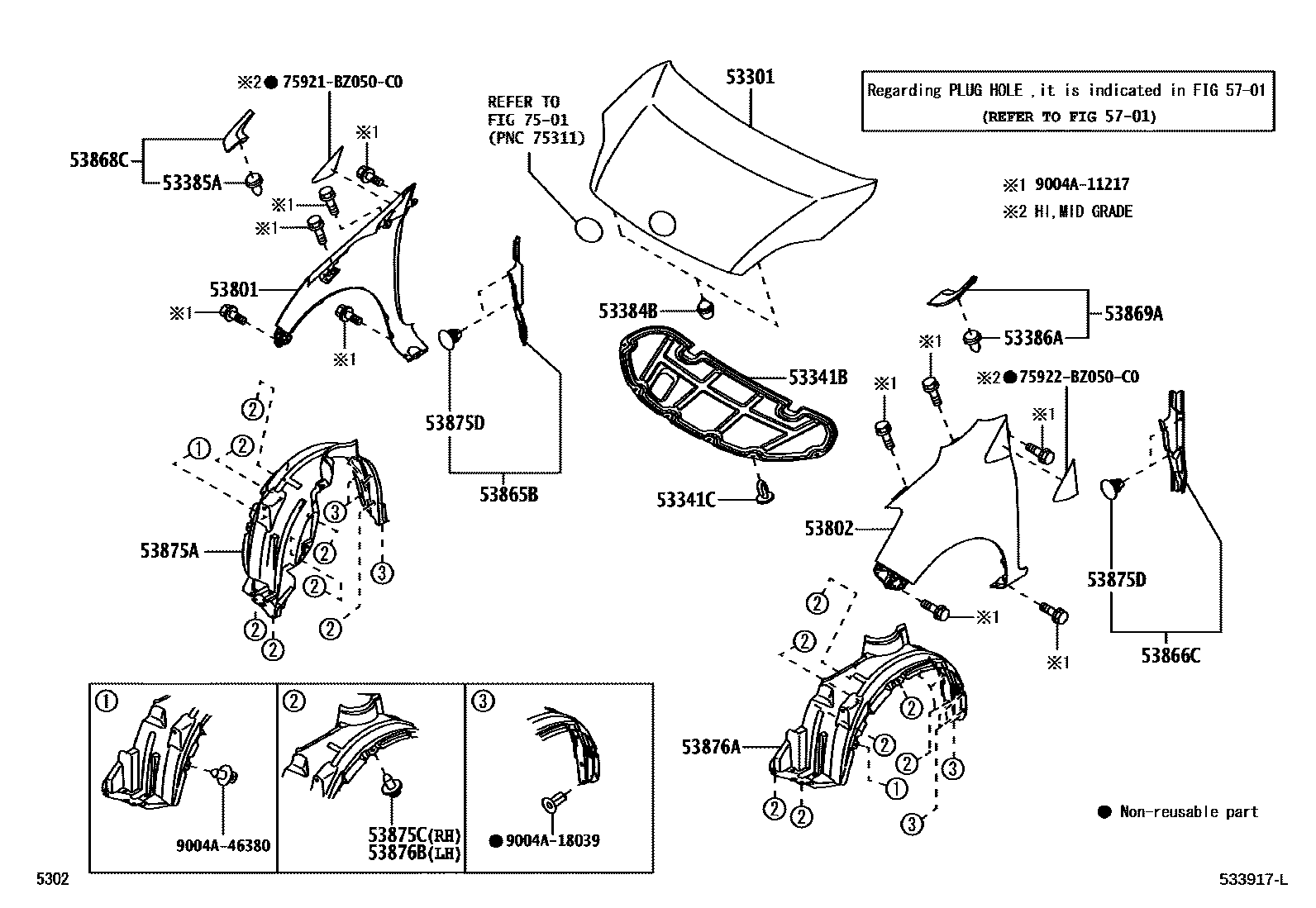

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-BZ240iB100201212-201704

main53301-BZ380iB10#201704-202003

53341BINSULATOR, HOOD

main53341-BZ070iB100201212-201704

main53341-BZ140iB101..WIGO201812-201901

LEBANON

53341CCLIP(FOR HOOD INSULATOR)

main90044-68280×7iB100201212-201510

main9004A-46258×7iB10#202003

53384BCUSHION, HOOD, CENTER

main53384-B1010×2iB100201212-201510

main53384-BZ020×2iB10#201704-202003

53385ARETAINER, HOOD BUMPER, RH

main67771-BZ080iB100201509-201512

main9004A-46275iB10#201704-202003

53386ARETAINER, HOOD BUMPER, LH

main67771-BZ080iB100201509-201512

main9004A-46275iB10#202003

53801FENDER SUB-ASSY, FRONT RH

main53811-BZ270iB100201212-201704

main53811-BZ550iB100..HIS..WIGO202003

TRD INLINE

53802FENDER SUB-ASSY, FRONT LH

main53812-BZ270iB10#201704-202003

main53812-BZ540iB100..HIS..WIGO202003

TRD INLINE

53865BPLATE, FRONT FENDER EXTENSION, RH

main53865-BZ080iB10#201704-202003

53866CPLATE, FRONT FENDER EXTENSION, LH

main53866-BZ070iB10#202003

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53445-BZ030iB100201212-201508

main53445-BZ031iB100201509-201512

main53445-BZ032iB10#201704-202003

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53446-BZ030iB100201212-201508

main53446-BZ031iB100201509-201512

main53446-BZ032iB10#201704-202003

53875ALINER, FRONT FENDER, RH

main53875-BZ220iB100201212-201704

main53875-BZ290iB101..WIGO201712-202003

VIETNAM

53875CCLIP, FRONT FENDER LINER

main90044-68320×9iB100201212-201304

main9004A-46323×9iB10#202003

53875DCLIP, FRONT FENDER LINER, NO.2

main90044-67563×4iB100201212-201601

main90044-67637×4iB10#201806-202003

main9004A-46382×4iB10#201704-201805

53876ALINER, FRONT FENDER, LH

main53876-BZ220iB100201212-201704

main53876-BZ280iB101..WIGO201712-202003

VIETNAM

53876BCLIP, FRONT FENDER LINER

main90044-68320×9iB100201212-201304

main9004A-46323×9iB10#201704-202003

5701HOLE PLUG

→ Go to FIG 57-01

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75921BZ050C0TAPE, BLACK OUT, NO.1 RH

main75921-BZ050C0

75922BZ050C0ROOF, VINYL

main75922-BZ050C0

9004A11217

main9004A-11217

9004A18039

main9004A-18039

9004A46380

main9004A-46380

24 parts on this diagram · 2 diagrams in section
