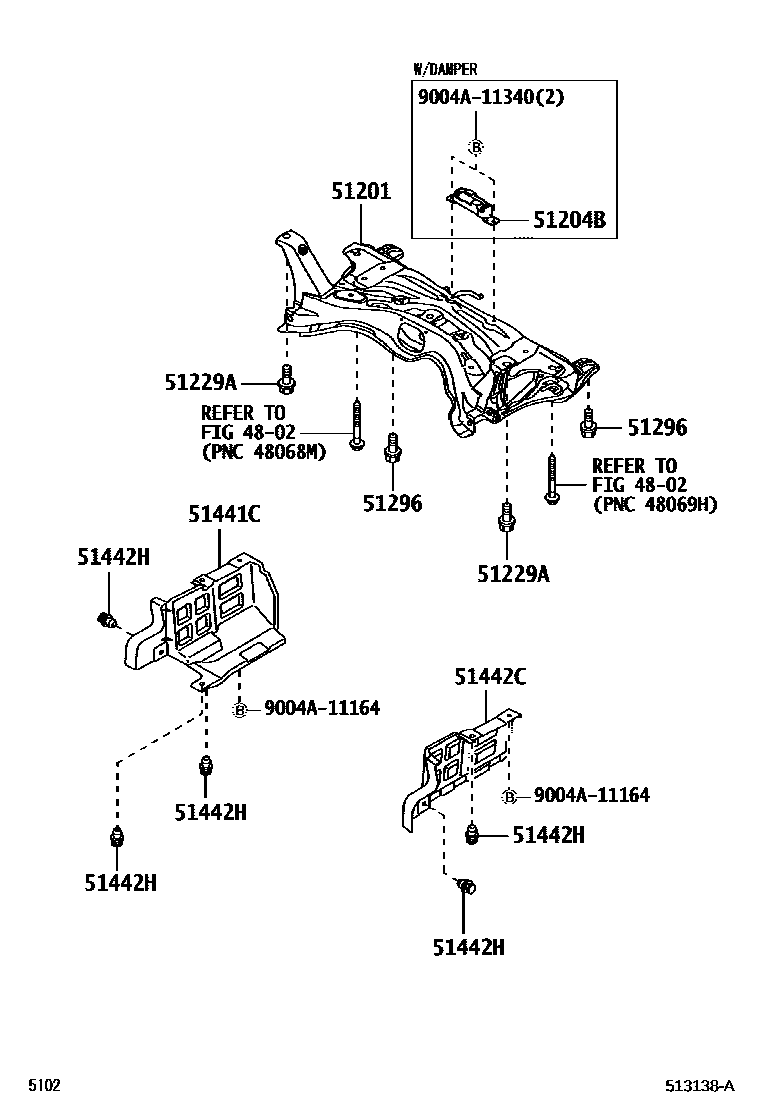

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1GENERAL EXPORT,VIETNAM 0003 1

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ090iB100201212-201704

main51201-BZ150iB10#202003-202209

main51201-BZ151iB10#202210

51204BDAMPER SUB-ASSY, FRONT SUSPENSION MEMBER

main51204-BZ080iB101201704-202003

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-20263×2iB100201212-201611

main90041-20339×2iB10#202202

main9004A-11300×2iB100201612-201704

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-20141×2iB100201212-201509

main90041-20320×2iB100201604-201704

main9004A-11299×2iB100201510-201603

main91673-A1025×2iB10#202101

51441CCOVER, ENGINE UNDER, RH

main51441-BZ170iB100201212-201704

main51441-BZ270iB10#201704-202003

main51408-BZ020iB101..WIGO201712-201901

GENERAL EXP(W/HEATER)

51442CCOVER, ENGINE UNDER, LH

main51442-BZ050iB100201212-201704

main51442-BZ090iB10#202003

main51409-BZ010iB101..WIGO201712-202003

VIETNAM

51442HCLIP, ENGINE UNDER COVER, NO.2

main90044-68320×5iB100201212-201304

main9004A-46323×5iB10#202003

9004A11164

main9004A-11164

9004A11340

main9004A-11340

10 parts on this diagram · 3 diagrams in section
