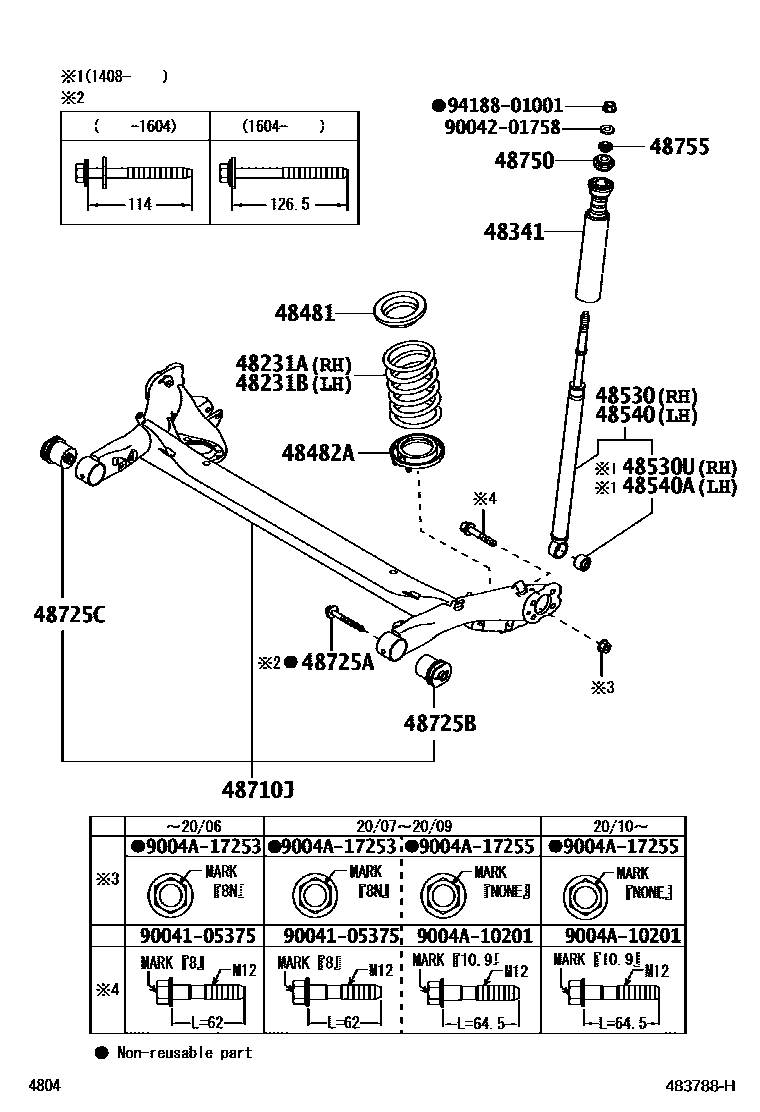

REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-BZ240iB100..LO,MID201212-201704

main48231-BZ430iB10#201704-202003

48231BSPRING, COIL, REAR LH

main48231-BZ240iB100..LO,MID201212-201704

main48231-BZ430iB100..HI201212-201704

48341BUMPER, REAR SPRING

main48341-BZ030×2iB100201212-201704

48481SEAT, REAR SPRING, UPPER

main48481-BZ060×2iB100201212-201701

main48481-BZ110×2iB10#201704-202003

48482ASEAT, REAR SPRING, LOWER

main48482-BZ080×2iB10#201704-202003

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-BZ180iB100201704-202003

MARK 48530-BZ180

main48530-BZ181iB100202301

MARK 48530-BZ181

main48530-BZ190iB101201704-202003

MARK 48530-BZ190

main48530-BZ191iB101202301

MARK 48530-BZ191

main48531-BZ530iB100..LO,MID201212-201604

MARK 48531-BZ530

main48531-BZ531iB100..LO,MID201605-201704

MARK 48531-BZ531

main48531-BZ540iB100..HI201212-201604

MARK 48531-BZ540

main48531-BZ541iB100..HI; B100..MID..AGYA201605-201704

MARK 48531-BZ541; MARK 48531-BZ541,TIRE & DISK WHEEL-175/65R14 5J-AL

48530UBUSH(FOR REAR SHOCK ABSORBER RH)

main48537-BZ030iB10#202003

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-BZ180iB100201704-202003

MARK 48530-BZ180

main48530-BZ181iB100202301

MARK 48530-BZ181

main48530-BZ190iB101201704-202003

MARK 48530-BZ190

main48530-BZ191iB101202301

MARK 48530-BZ191

main48531-BZ530iB100..LO,MID201212-201604

MARK 48531-BZ530

main48531-BZ531iB100..LO,MID201605-201704

MARK 48531-BZ531

main48531-BZ540iB100..HI201212-201604

MARK 48531-BZ540

main48531-BZ541iB100..HI; B100..MID..AGYA201605-201704

MARK 48531-BZ541; MARK 48531-BZ541,TIRE & DISK WHEEL-175/65R14 5J-AL

48540ABUSH(FOR REAR SHOCK ABSORBER LH)

main48537-BZ030iB10#201704-202003

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-BZ090iB100..AGYA;B100..MID..WIGO201212-201704

main48710-BZ100iB100..HI..WIGO201401-201704

main48710-BZ440supersedes 48710-BZ430iB10#..AGYA; B10#..WIGO201704-202003

W/ABS

48725ABOLT(FOR LOWER CONTROL ARM)

main48718-B1020×2iB10#201704-202003

main48718-B2031×2iB100201212-201604

main9004A-11377×2iB10#202104

M12,L=129

48725BBUSH, REAR SUSPENSION ARM, NO.1

main48725-BZ030iB100201212-201704

main48725-BZ100iB10#201704-202003

48725CBUSH, REAR SUSPENSION ARM, NO.2

main48725-BZ030iB100201212-201704

main48725-BZ100iB10#201704-202003

48750SUPPORT ASSY, REAR SUSPENSION

main48750-BZ010×2iB10#201704-202003

48755SUPPORT, REAR SUSPENSION

main48755-BZ010×2iB10#201704-202003

9004105375

main90041-05375

9004201758

main90042-01758

9004A10201

main9004A-10201

9004A17253

main9004A-17253

9004A17255

main9004A-17255

9418801001

main94188-01001

21 parts on this diagram · 1 diagram in section
