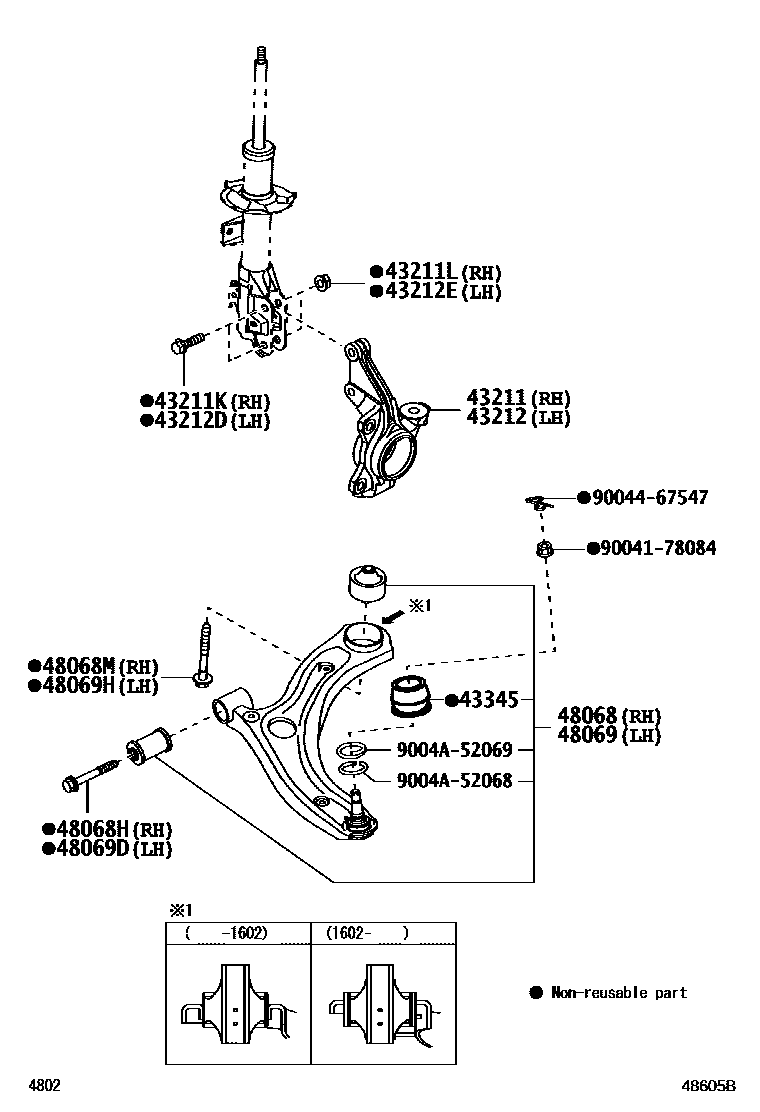

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-BZ260iB100..HI..WIGO201401-201704

main43211-BZ270iB100..AGYA;B100..MID..WIGO201212-201704

main43211-BZ370supersedes 43211-BZ360iB10#..AGYA; B10#..WIGO201704-202003

W/ABS

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652×2iB100201212-201704

main90041-01720×2iB10#202104

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70393×2iB100201212-201704

43212KNUCKLE, STEERING, LH

main43212-BZ260iB100..HI..WIGO201401-201704

main43212-BZ270iB100..AGYA;B100..MID..WIGO201212-201704

main43212-BZ370supersedes 43212-BZ360iB10#..AGYA; B10#..WIGO201704-202003

W/ABS

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652×2iB100201212-201704

main90041-01720×2iB10#202104

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70393×2iB100201212-201704

43345COVER, LOWER BALL JOINT DUST

main43345-BZ060×2iB10#201704-202003

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-BZ100iB100201212-201602

main48068-BZ320iB100201602-201704

main48068-BZ370iB10#201704-202003

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-20192iB10#202003

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05475iB10#202003

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-BZ100iB100201212-201602

main48069-BZ320iB100201602-201704

main48069-BZ370iB10#202003

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-20192iB10#201704-202003

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05475iB10#201704-202003

9004178084

main90041-78084

9004467547

main90044-67547

9004A52068

main9004A-52068

9004A52069

main9004A-52069

17 parts on this diagram · 1 diagram in section
