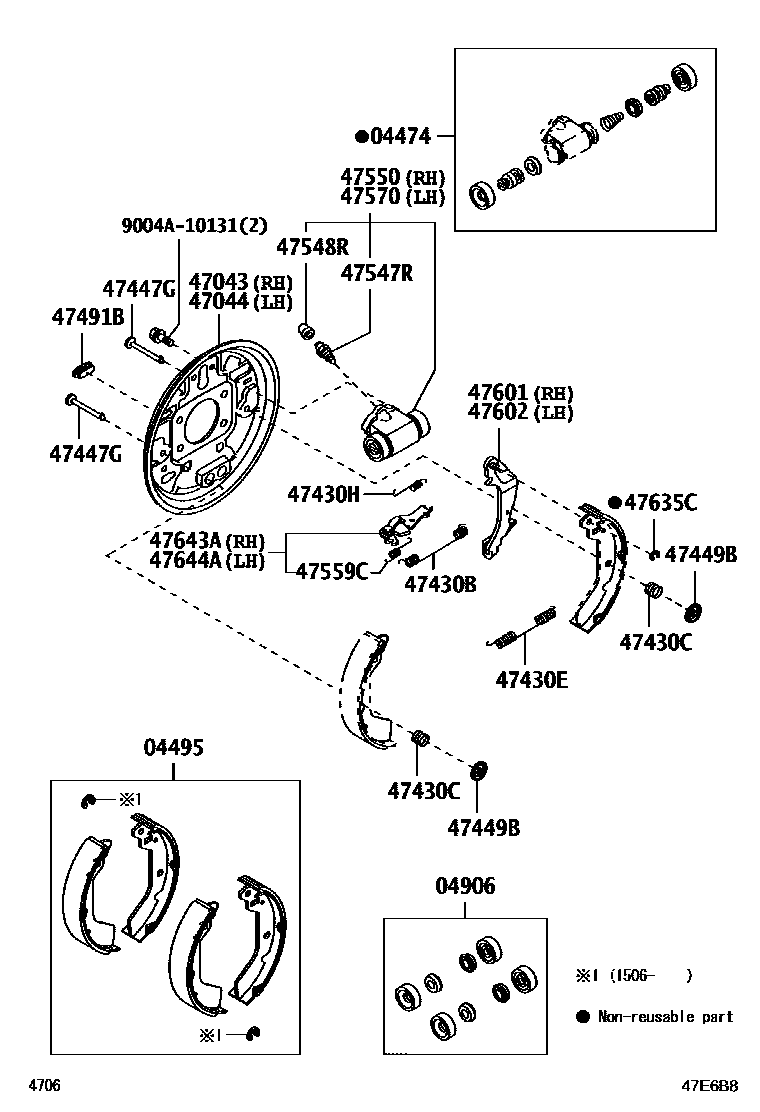

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04495SHOE KIT, REAR BRAKE
MARK AK L636 EE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
OD=15.5
OD=17
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
RH
LH
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47491BPLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47559CSPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47635CRETAINER, ADJUSTING BOLT SPRING
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9004A10131
main9004A-10131
23 parts on this diagram · 1 diagram in section
