FRONT DISC BRAKE CALIPER & DUST COVER

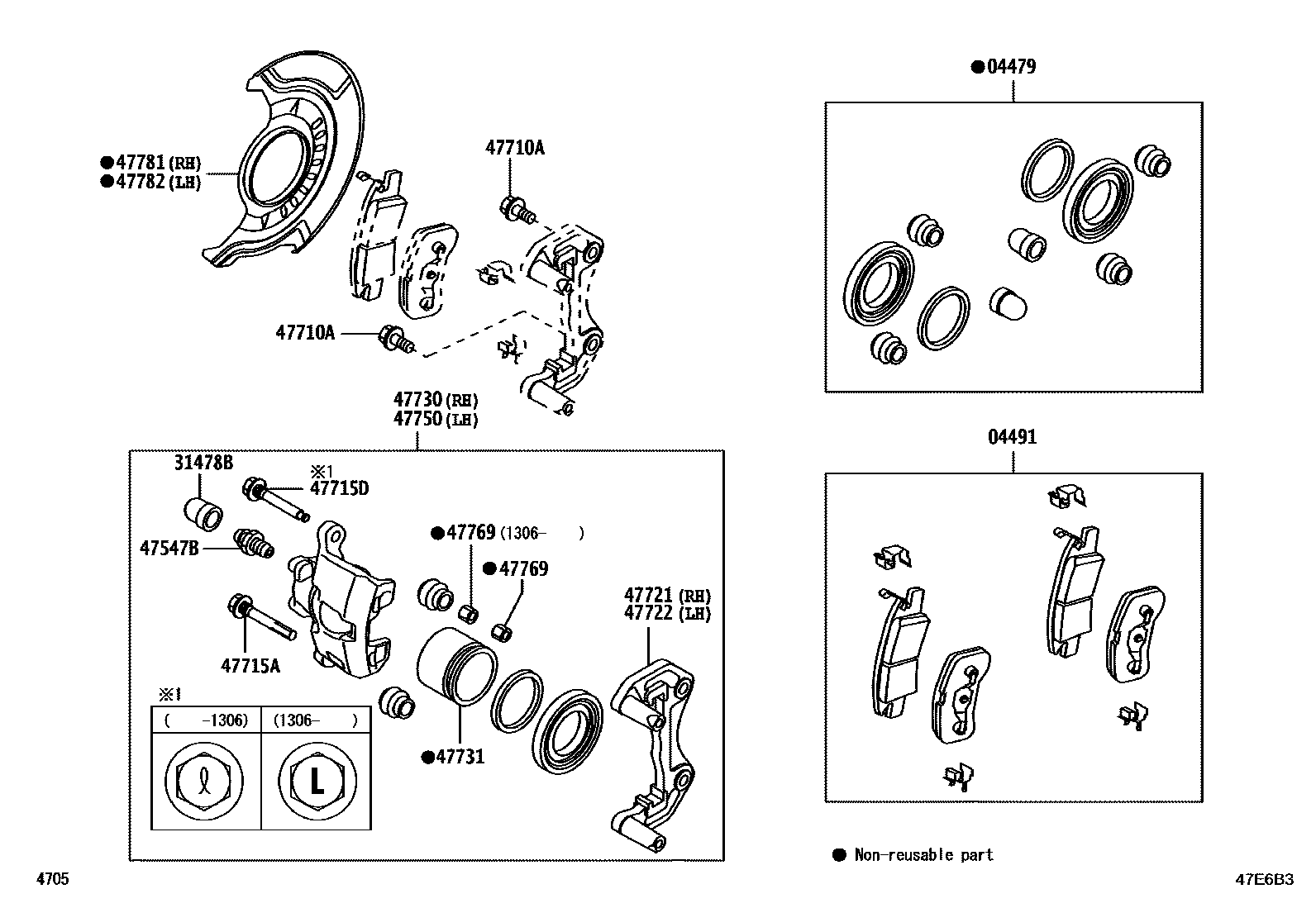

Parts diagram

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-BZ140i201212-201607

main04478-BZ141i201608-201704

main04478-BZ150i201212-201607

FRONT WHEEL BRAKE-13" DISK(VENTILATED)

main04478-BZ151i201608-201704

FRONT WHEEL BRAKE-13" DISK(VENTILATED)

main04478-BZ152i202003-202210

main04478-BZ153i202210

04491PAD KIT, DISC BRAKE, FRONT

main04491-BZ010i201212-201601

main04491-BZ011i201602-201704

main04491-BZ020i202003

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ050×2i201212-201704

main47548-BZ080×2i201704-202003

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ070×2i201212-201704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4i201704-202003

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-97201×2i201704-202003

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-BZ030i201704-202003

main47715-BZ050×2i201212-201306

main47715-BZ140×2i201306-201312

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-BZ080i201212-201704

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-BZ080i201212-201704

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ090i201212-201704

main47730-BZ110i201704-202003

47731PISTON, FRONT DISC BRAKE

main47731-BZ030×2i201704-202003

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ080i201704-202003

main47750-BZ090i201212-201704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-BZ010×4i201704-202003

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ100i201704-202003

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ100i201704-202003

15 parts on this diagram · 5 diagrams in section
