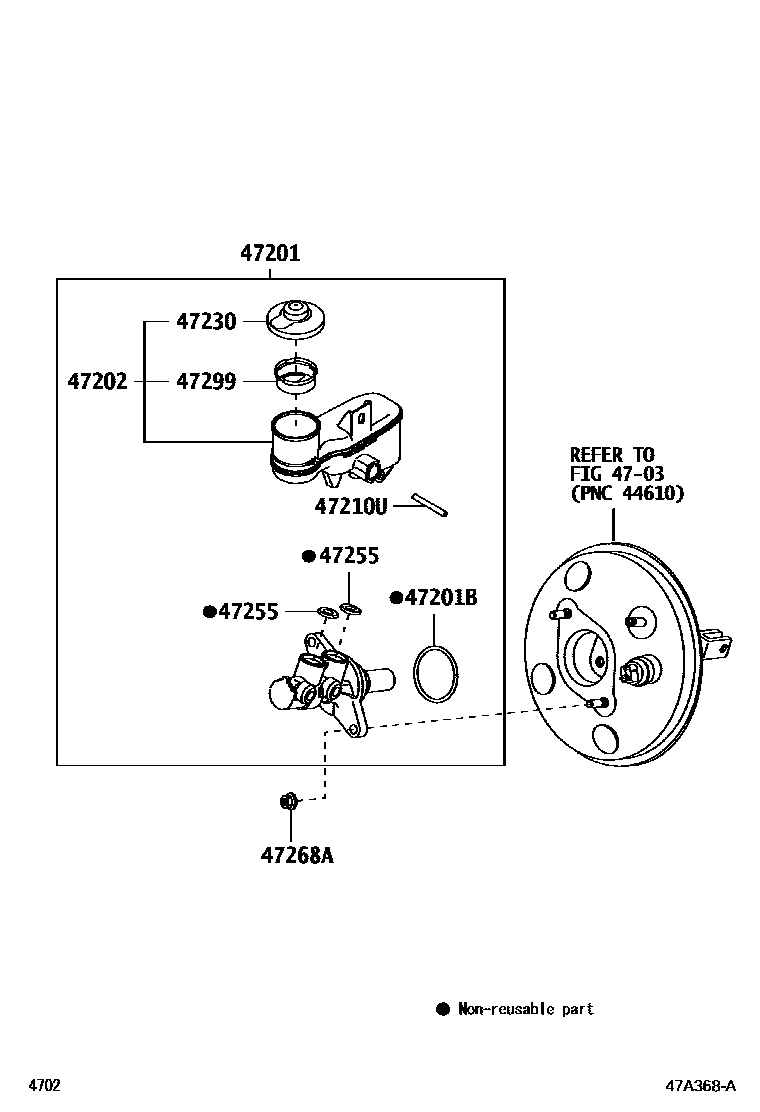

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ370iB100..AGYA201212-201704

main47201-BZ371iB100..MID..WIGO201403-201704

main47201-BZ380iB100..HI..WIGO201401-201704

main47201-BZ810supersedes 47201-BZ801iB10#..AGYA; B100..WIGO201704-202003

W/ABS

main47201-BZ811iB10#..AGYA; B100..WIGO202111

ABS

main47201-BZ890iB101..WIGO202003-202110

main47201-BZ891iB101..WIGO202111

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iB100..AGYA;B100..HI..WIGO201506-201704

main9004A-30046iB100..MID..WIGO201212-201704

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-BZ220iB100201212-201704

main47220-BZ310iB100;B101..AGYA202003

main47220-BZ370iB101..WIGO201712-202003

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iB10#201704-202003

main9004A-24026iB100201212-201505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ100iB100201212-201505

main47230-BZ130iB100201506-201704

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ100×2iB100201212-201503

main47255-BZ110×2iB10#202003

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124×2iB10#202003

main9004A-17135×2iB100201212-201503

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ090iB100201212-201704

9 parts on this diagram · 2 diagrams in section
