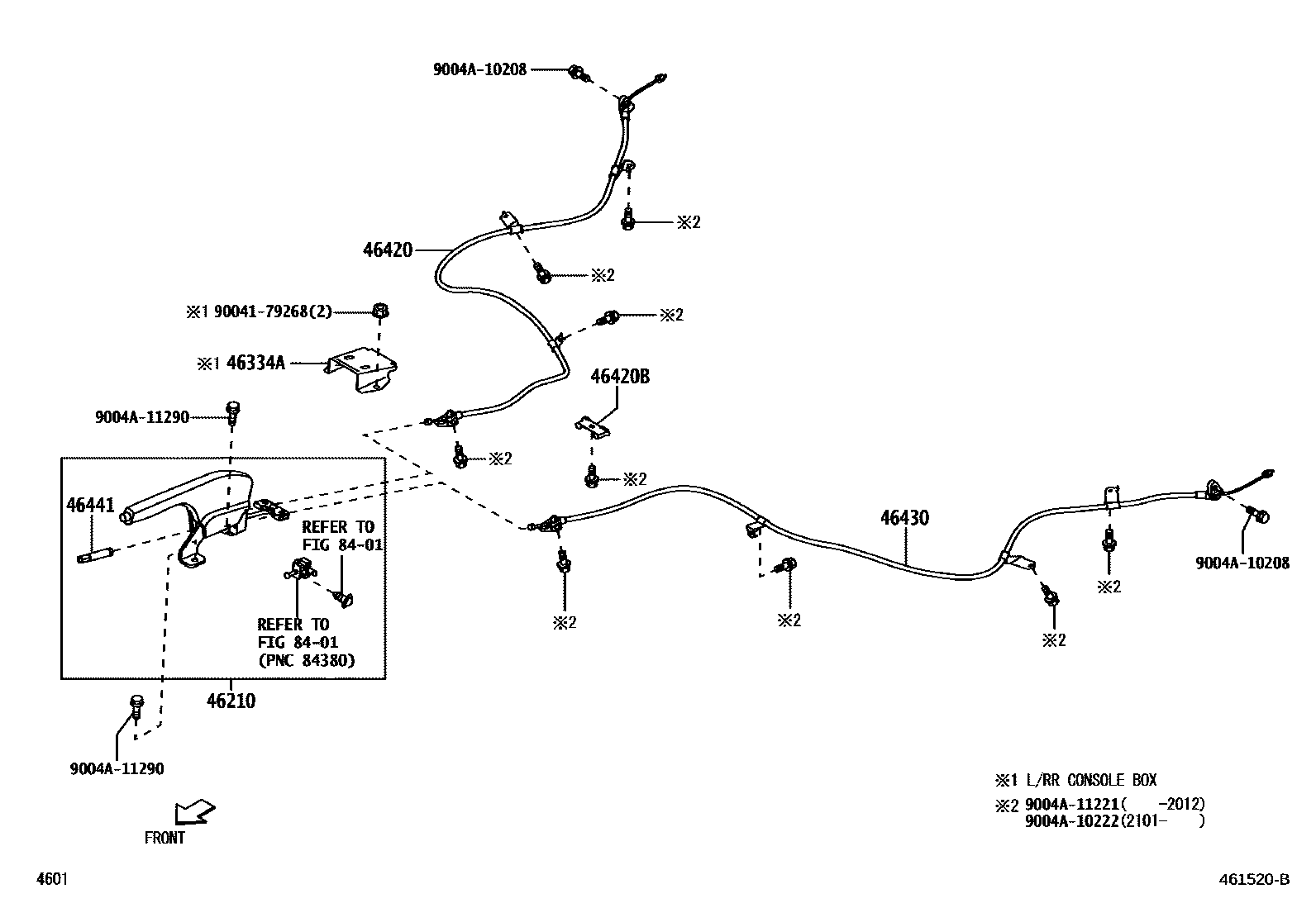

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-BZ100-B0iB100..MIDS..AGYA201212-201912

DK.GRAY,TRIM1#

main46210-BZ100-C0iB100..MIDS..AGYA202003

BLACK,TRIM2#

main46210-BZ100-C0iB100..MIDS..AGYA202003

LEBANON,BLACK,TRIM2#

main46210-BZ100-C0iB100..MIDS..AGYA201912-202003

BLACK,TRIM1#

main46210-BZ110-B0iB100..HI201212-201912

DK.GRAY,TRIM1#

main46210-BZ110-C0iB10#..HIS;B100..MIDS..WIGO202003

BLACK,TRIM2#

main46210-BZ110-C0iB10#..HIS;B100..MIDS..WIGO201912-202003

BLACK,TRIM1#

46334APROTECTOR, PARKING BRAKE CABLE JOINT

main46334-BZ030iB100..LO201212-201704

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ160iB100201212-201704

main46420-BZ190iB10#201704-202003

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90044-61832iB10#201212-202003

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ160iB100201212-201704

main46430-BZ190iB10#201704-202003

46441NUT, WIRE ADJUSTING, NO.1

main46441-BZ040iB10#201212-202003

8401

9004179268

main90041-79268

9004A10208

main9004A-10208

9004A10222

main9004A-10222

9004A11221

main9004A-11221

9004A11290

main9004A-11290

12 parts on this diagram · 1 diagram in section
