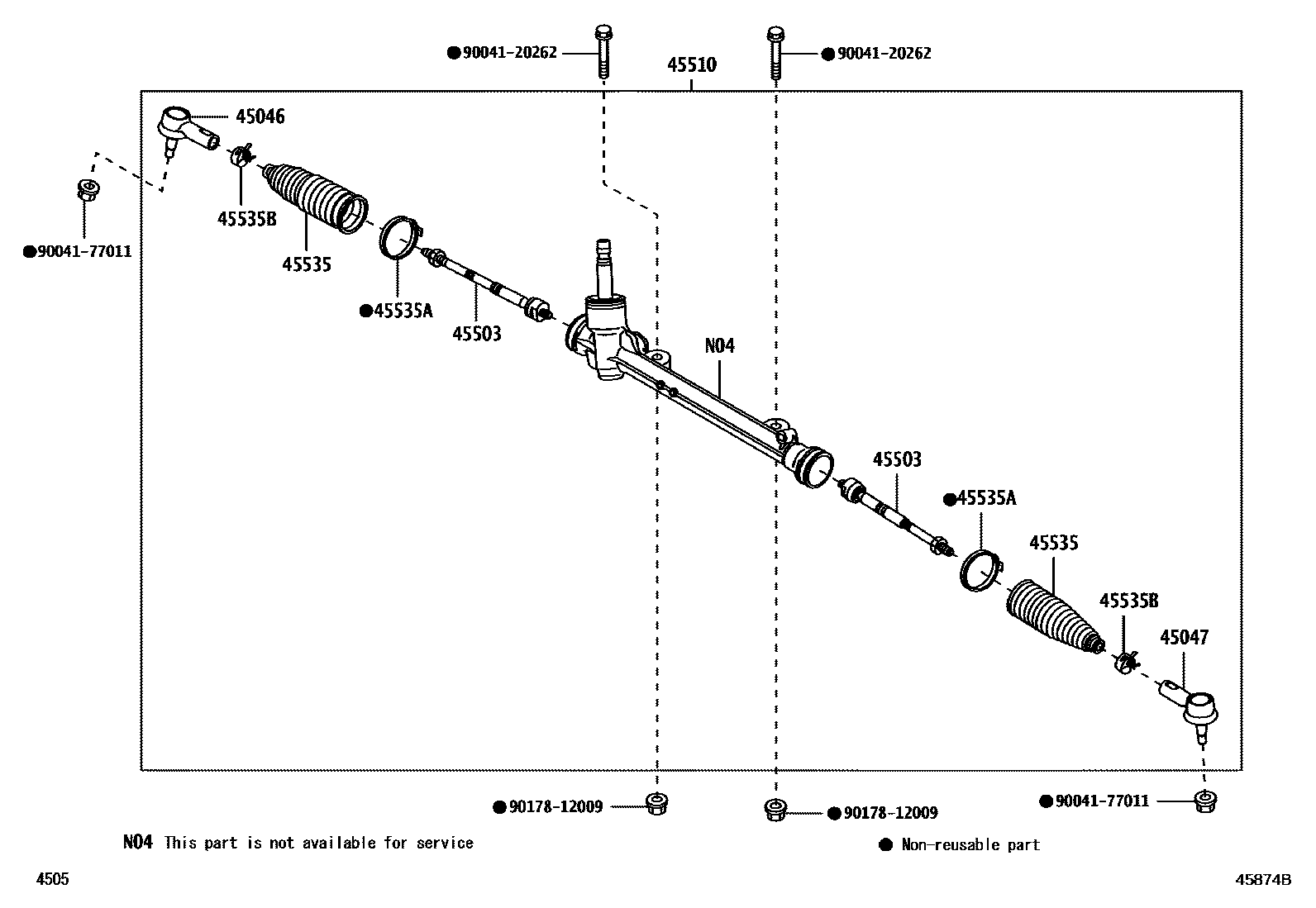

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ140iB100201212-201704

main45046-BZ220iB10#202003

45047END SUB-ASSY, TIE ROD, LH

main45046-BZ140iB100201212-201704

main45046-BZ220iB10#201704-202003

45503END SUB-ASSY, STEERING RACK

main45503-BZ140×2iB100201212-201704

main45503-BZ230×2iB10#202003

45510GEAR ASSY, STEERING

main45510-BZ190supersedes 45510-BZ180iB100..HI..AGYA; B100..MID..AGYA201212-201501

TIRE & DISK WHEEL-175/65R14 5J-AL

main45510-BZ191iB100..HI..AGYA; B100..MID..AGYA201502-201603

TIRE & DISK WHEEL-175/65R14 5J-AL

main45510-BZ200iB100..MID..WIGO201401-201704

main45510-BZ210iB100..HI..WIGO201401-201501

main45510-BZ211iB100..HI..WIGO201502-201704

main45510-BZ212iB100..WIGO201711-202003

main45510-BZ213iB100..WIGO201704-201710

main45510-BZ310iB100..(HI,MID)..AGYA; B100..LO201603-201704

AIR CONDITIONER-MANUAL

main45510-BZ341iB10#..AGYA201704-202003

main45510-BZ350iB101..WIGO201712-202003

main45510-BZ530iB10#..WIGO202003

main45510-BZ180supersedes 45510-BZ170iB100..LO; B100..MID..AGYA201212-201603

AIR CONDITIONER-MANUAL

45535BOOT, STEERING RACK, NO.1

main45535-BZ090×2iB10#201704-202003

45535ACLAMP(FOR STEERING RACK BOOT)

main15549-BZ010×2iB10#201704-202003

45535BCLIP(FOR STEERING RACK BOOT)

main9004A-46138×2iB10#201704-202003

9004120262

main90041-20262

9004177011

main90041-77011

9017812009

main90178-12009

10 parts on this diagram · 1 diagram in section
