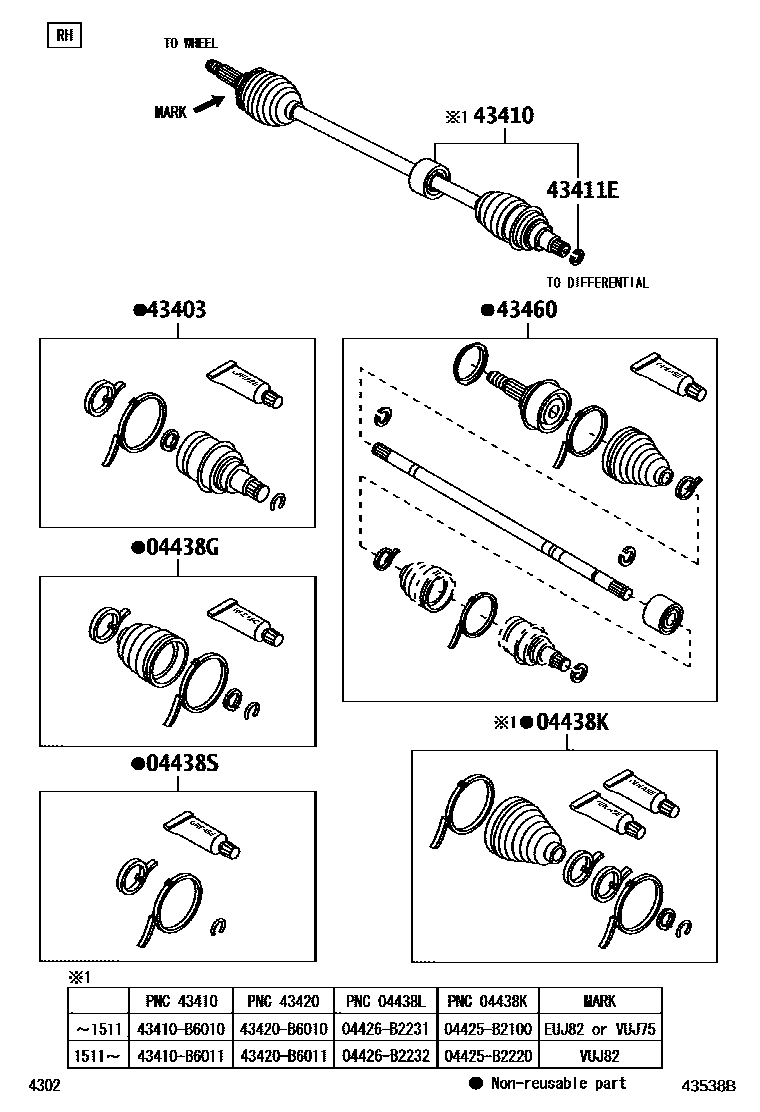

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2020iB100201704-202003

NTN

main04437-BZ050iB101201704-202003

NTN

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B2100iB100201212-201511

NTN

main04425-B2220iB100201511-201704

NTN

main04425-BZ050iB101201704-202003

NTN

main04425-BZ051iB101202111

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2020iB100201212-201704

NTN

main04435-BZ060iB101202003

NTN

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9350iB100201212-201704

NTN

main43408-B9510iB101201704-202003

NTN

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B6010iB100201212-201511

main43410-B6011iB100201704-202003

main43410-BZ120iB101202003

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90045-20298iB10#201704-202003

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9470iB100201212-201510

main43411-B9471iB100201511-201704

main43411-B9530iB101201704-202003

main43411-B9532iB101202111

7 parts on this diagram · 2 diagrams in section
