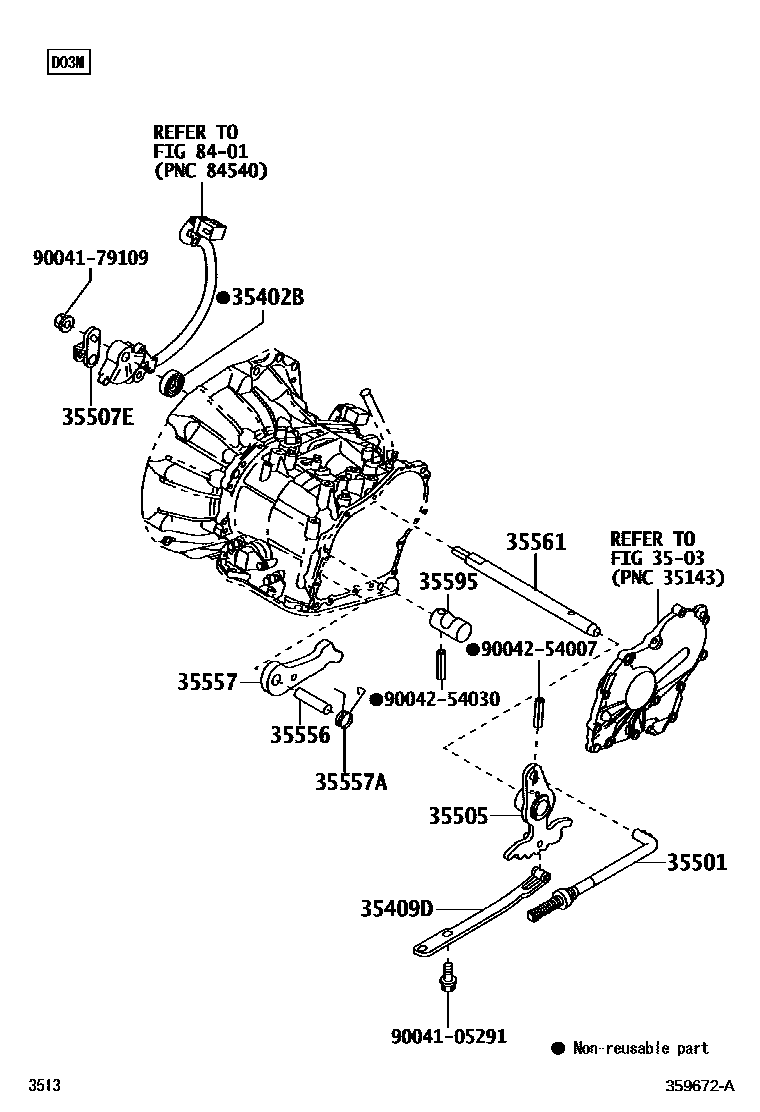

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35402BSEAL,OIL(FOR MANUAL VALVE)

main90043-11256iB10#..ATM202003

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-97206iB100..ATM201212-201704

main35409-B1010iB10#..ATM201704-202003

35501ROD SUB-ASSY, PARKING LOCK

main35501-97202iB100..ATM201212-201704

main35501-B1010iB10#..ATM202003

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-97202iB100..ATM201212-201704

35507ELEVER,TRANSMISSION CONTROL SHAFT

main35507-B1010iB100..ATM201212-201704

main35572-B1020iB10#..ATM201704-202003

35556SHAFT, PARKING LOCK PAWL

main35556-87202iB10#..ATM201704-202003

35557PAWL, PARKING LOCK

main35557-97201iB100..ATM201212-201704

main35557-B1010iB10#..ATM201704-202003

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90045-08389iB100..ATM201212-201704

main90045-08418iB10#..ATM201704-202003

35561SHAFT, MANUAL VALVE LEVER

main35561-97201iB100..ATM201212-201704

35595BRACKET, PARKING LOCK PAWL

main35595-87203iB100..ATM201212-201704

main35595-B1010iB10#..ATM201704-202003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105291

main90041-05291

9004179109

main90041-79109

9004254007

main90042-54007

9004254030

main90042-54030

16 parts on this diagram · 2 diagrams in section
