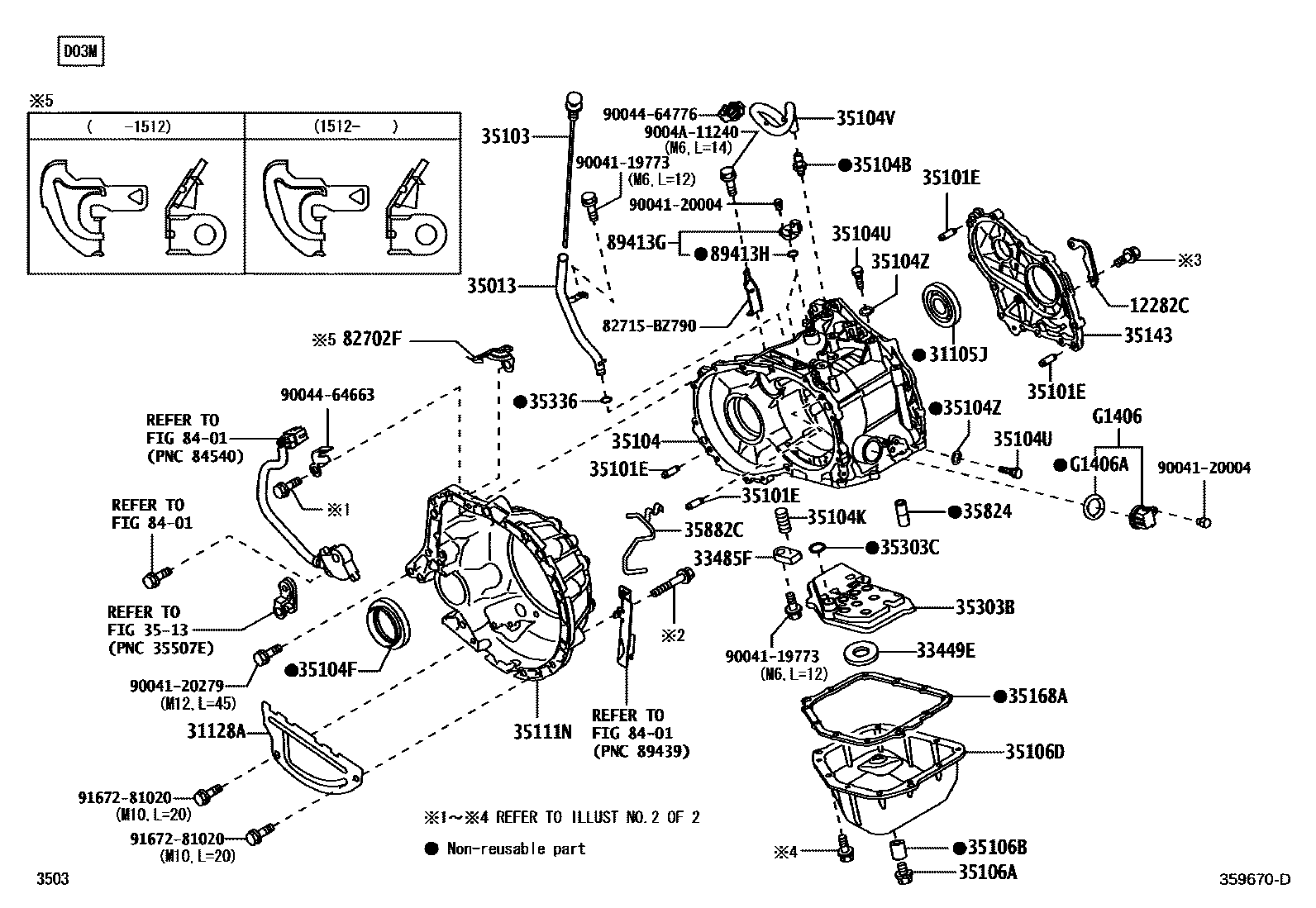

TRANSMISSION CASE & OIL PAN (ATM)
12282CHANGER, ENGINE, NO.2
31105JSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
31128ACOVER, CLUTCH HOUSING UNDER(ATM)
33449EMAGNET, TRANSAXLE
33485FPLATE, SPEEDMETER LOCK
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104BPLUG, BREATHER, NO.1 (ATM)
35104FSEAL, OIL (FOR TRANSAXLE CASE)
35104KCOMPRESSION SPRING, TRANSAXLE CASE
35104UBOLT (FOR TRANSAXLE CASE)
35104VHOSE (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35111NTRANSAXLE HOUSING (ATM)
3513THROTTLE LINK & VALVE LEVER (ATM)
35143COVER, TRANSMISSION CASE, REAR
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35303BSTRAINER SUB-ASSY,OIL
35303CRING,O(FOR OIL STRAINER)
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY
82702FBRACKET SUB-ASSY, WIRING HARNESS
8401SWITCH & RELAY & COMPUTER
89413GSENSOR, TRANSMISSION REVOLUTION
89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)
G1406CONNECTOR SUB-ASSY, TRANS SOLENOID
G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)
82715BZ790BRACKET,WIRING HARNESS CLAMP
main82715-BZ790
9004119773
main90041-19773
9004120004
main90041-20004
9004120279
main90041-20279
9004464663
main90044-64663
9004464776
main90044-64776
9004A11240
main9004A-11240
9167281020
main91672-81020
41 parts on this diagram · 5 diagrams in section
