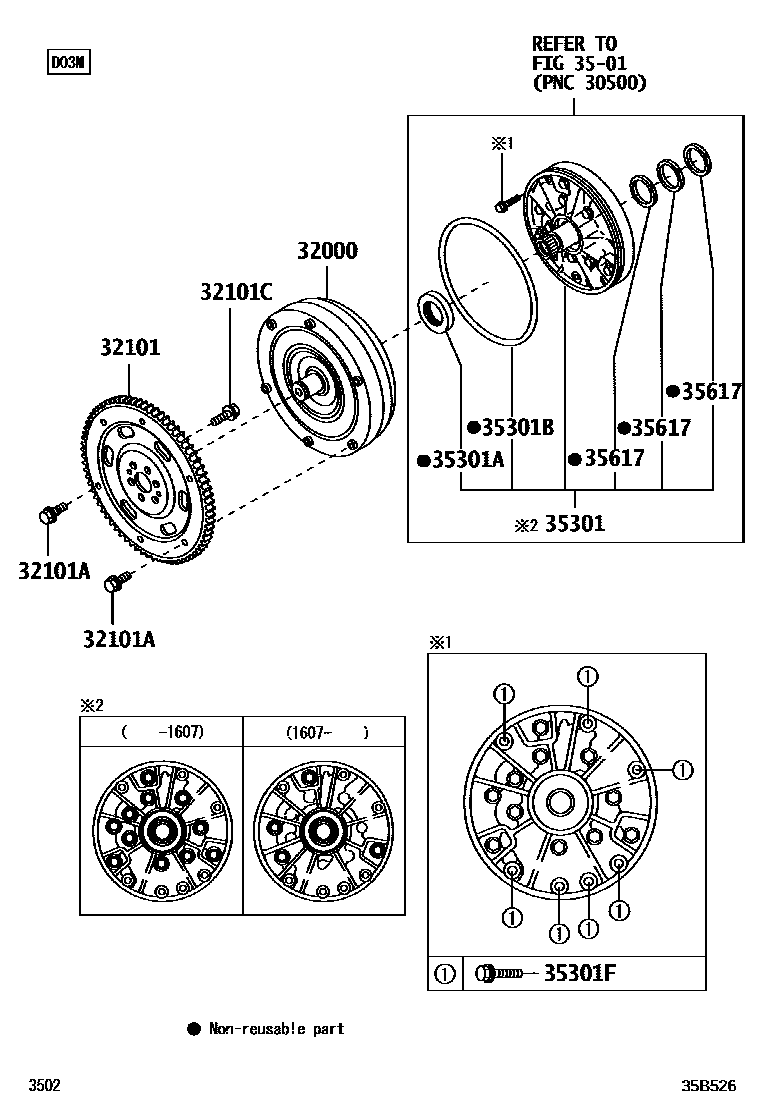

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-B1011iB100..ATM201212-201511

main32000-B1131iB100..ATM202003

main32000-B1141iB101..ATM201704-202003

main32000-B1160iB100..ATM201512-201704

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-BZ040iB100..ATM201704-202003

main32101-BZ050iB101..ATM201704-202003

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05273iB10#..ATM202003-202011

M8,L=9.5,SILVER

main90041-05281×5iB10#..ATM201704-202003

M8,L=9.5,BLACK

main90041-05595iB10#..ATM202011

M8,L=9,SILVER

main90041-05596×5iB10#..ATM202011

M8,L=9,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iB100..ATM201704-201808

main9004A-10200×6iB100..ATM; B101..ATM202003

3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

→ Go to FIG 35-01

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-97203iB100..ATM201212-201607

main35310-B1050iB10#..ATM202003

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iB10#..ATM201704-202003

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iB10#..ATM201704-202003

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90041-05122×7iB10#..ATM202003

35617RING, CLUTCH DRUM OIL SEAL

main35653-97201×3iB100..ATM201212-201603

main35653-B1010×3iB10#..ATM201704-202003

10 parts on this diagram · 2 diagrams in section
