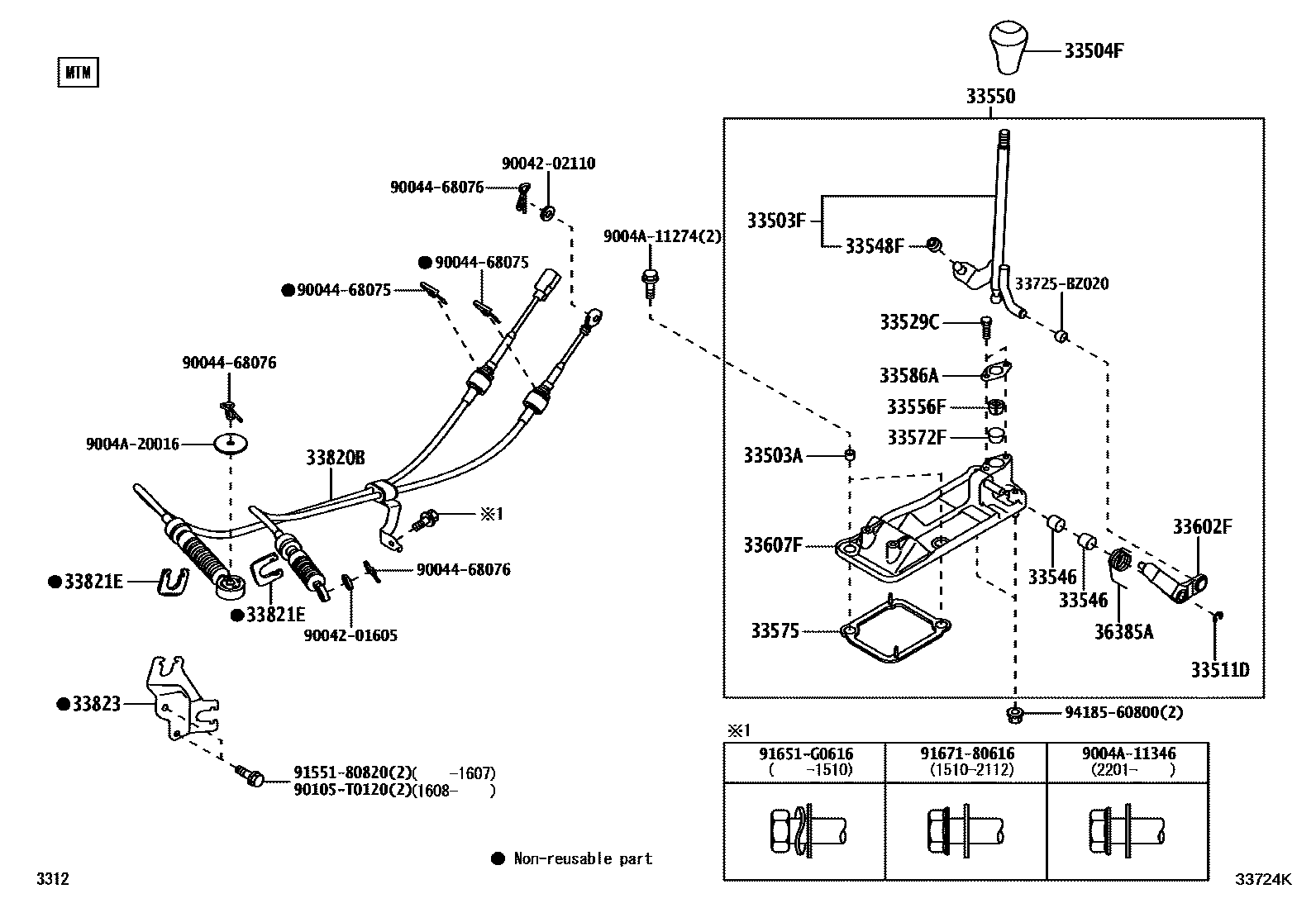

SHIFT LEVER & RETAINER
33503ACOLLAR(FOR SHIFT LEVER)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511DRING, E (FOR FLOOR SHIFT CONTROL SHAFT)
33529CBOLT, SHIFT LEVER
33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33550FLOOR SHIFT ASSY, TRANSMISSION
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
33572FBUSH, CONTROL SHAFT LOWER
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33607FSUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT)
33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
36385ASPRING, FLOOR SHIFT LEVER TORSION, NO.1
33725BZ020
main33725-BZ020
9004201605
main90042-01605
9004202110
main90042-02110
9004468075
main90044-68075
9004468076
main90044-68076
9004A11274
main9004A-11274
9004A11346
main9004A-11346
9004A20016
main9004A-20016
90105T0120
main90105-T0120
9155180820
main91551-80820
91651G0616
main91651-G0616
9167180616
main91671-80616
9418560800
main94185-60800
31 parts on this diagram · 3 diagrams in section
