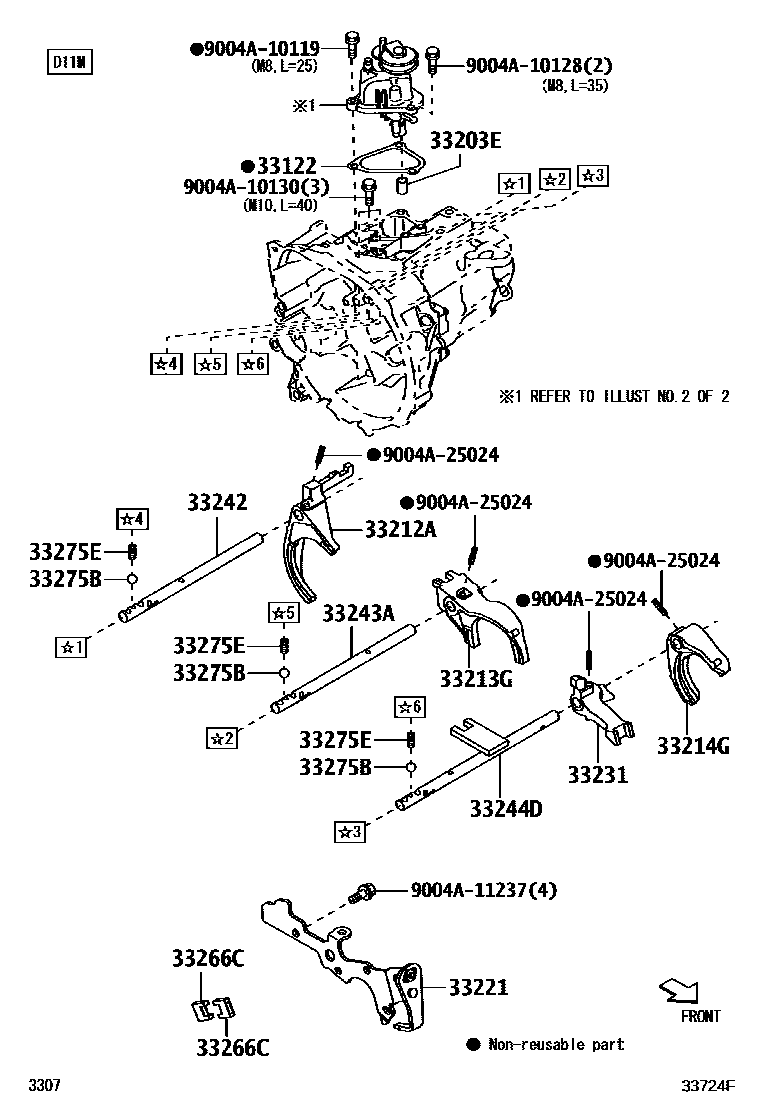

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-BZ040iB100..MTM201212-201704

main33122-BZ080iB10#..MTM202003

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-BZ020iB100..MTM201212-201704

main33203-BZ090iB10#..MTM201704-202001

main33203-BZ150iB10#..MTM202001-202003

33203EBUSH(FOR SHIFT LEVER SHAFT)

main33572-BZ010iB100..MTM201212-201704

33212AFORK, GEAR SHIFT, NO.1

main33212-BZ050iB10#..MTM201704-202001

main33212-BZ070iB10#..MTM202003

33213GFORK, GEAR SHIFT, NO.2

main33213-BZ050iB10#..MTM201704-202001

main33213-BZ100iB10#..MTM202001-202003

33214GFORK, GEAR SHIFT, NO.3

main33214-BZ060iB10#..MTM202003

33221ARM, REVERSE SHIFT

main33201-BZ030iB10#..MTM201704-202003

33231HEAD, REVERSE SHIFT

main33231-BZ020iB10#..MTM201704-202003

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-BZ030iB100..MTM201212-201606

main33242-BZ031iB10#..MTM201704-202001

main33242-BZ060iB10#..MTM202001-202003

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-BZ060iB100..MTM201212-201606

main33243-BZ061iB10#..MTM201704-202001

main33243-BZ100iB10#..MTM202003

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-BZ060iB100..MTM201212-201606

main33244-BZ061iB10#..MTM201704-202001

main33244-BZ080iB10#..MTM202001-202003

33266CPLATE, SHIFT INTERLOCK

main33266-BZ030×2iB100..MTM201212-201310

main33266-BZ031×2iB10#..MTM201704-202001

main33266-BZ060iB10#..MTM202003

33275BBALL, SHAFT DETENT

main9004A-36044×3iB10#..MTM201704-202003

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main9004A-50122×3iB100..MTM201212-201704

main9004A-50139×3iB10#..MTM202003

9004A10119

main9004A-10119

9004A10128

main9004A-10128

9004A10130

main9004A-10130

9004A11237

main9004A-11237

9004A25024

main9004A-25024

19 parts on this diagram · 5 diagrams in section
