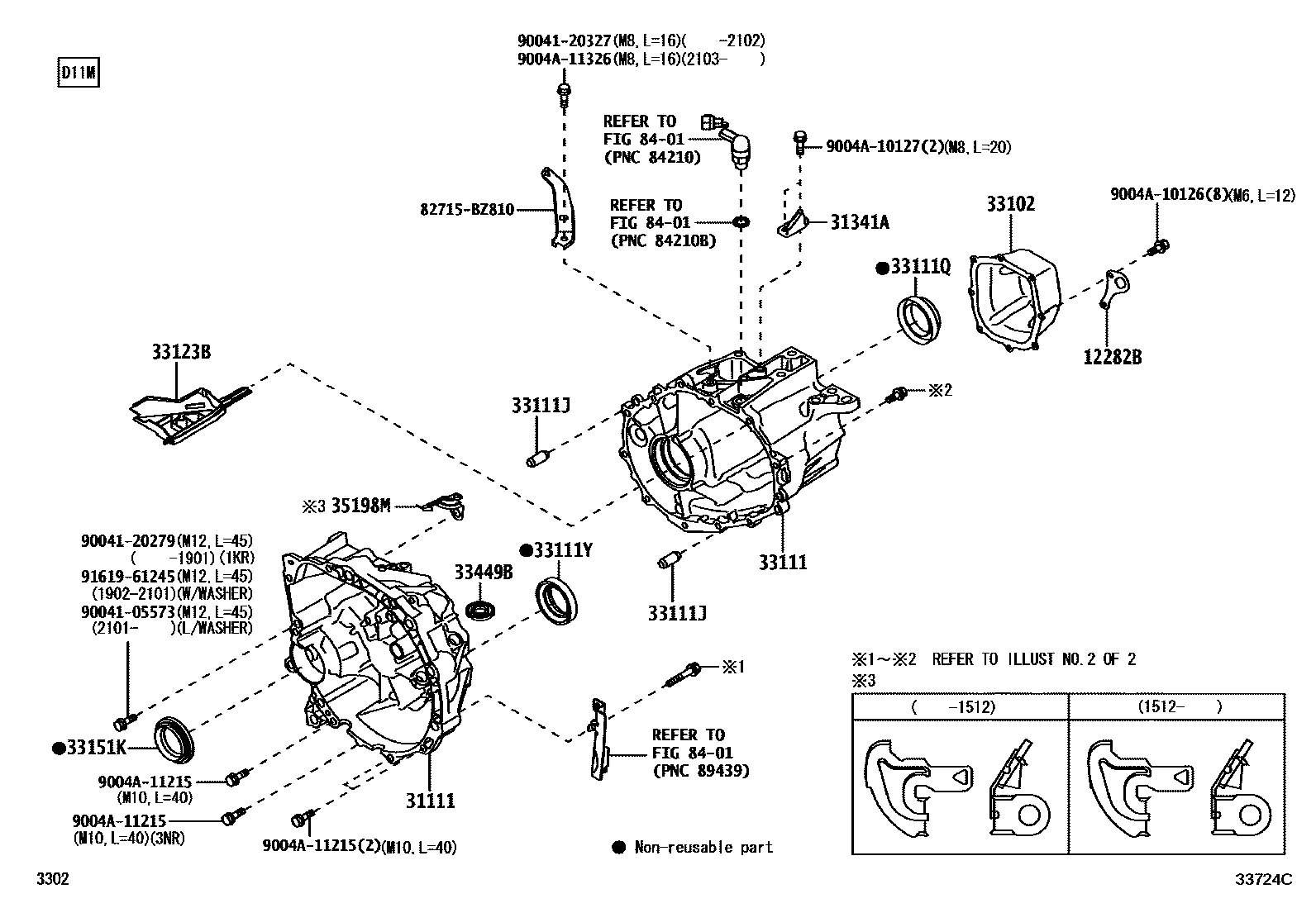

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

12282BHANGER, TRANSAXLE

main12282-BZ040i1KRDE..B100..MTM201212-201704

31111HOUSING, CLUTCH

main31115-BZ030iB100..MTM201212-201704

main31115-BZ040iB101..MTM202003

31341ABRACKET, CLUTCH CABLE

main31341-BZ050iB100..MTM201212-201704

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-BZ010iB10#..MTM201704-202003

33111CASE, MANUAL TRANSMISSION

main33111-BZ060iB10#..MTM201704-202003

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main9004A-25032×2iB10#..MTM202003

L=25,OD=10

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main9004A-31050iB10#..MTM202003

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main9004A-31013iB10#..MTM201704-202003

33123BRECEIVER, CASE COVER OIL, NO.1(MTM)

main33123-BZ010iB10#..MTM202003

33151KSEAL, TYPE T OIL

main9004A-31051iB10#..MTM202003

33449BMAGNET, TRANSMISSION

main33449-BZ030iB10#..MTM202003

35198MBRACKET, WIRE HARNESS CLAMP

main82715-B2510iB100..MTM201512-201704

main82715-BZ780iB100..MTM..AGYA201212-201512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

82715BZ810BRACKET,WIRING HARNESS CLAMP

main82715-BZ810

9004105573

main90041-05573

9004120279

main90041-20279

9004120327

main90041-20327

9004A10126

main9004A-10126

9004A10127

main9004A-10127

9004A11215

main9004A-11215

9004A11326

main9004A-11326

9161961245

main91619-61245

22 parts on this diagram · 2 diagrams in section
