VACUUM PIPING

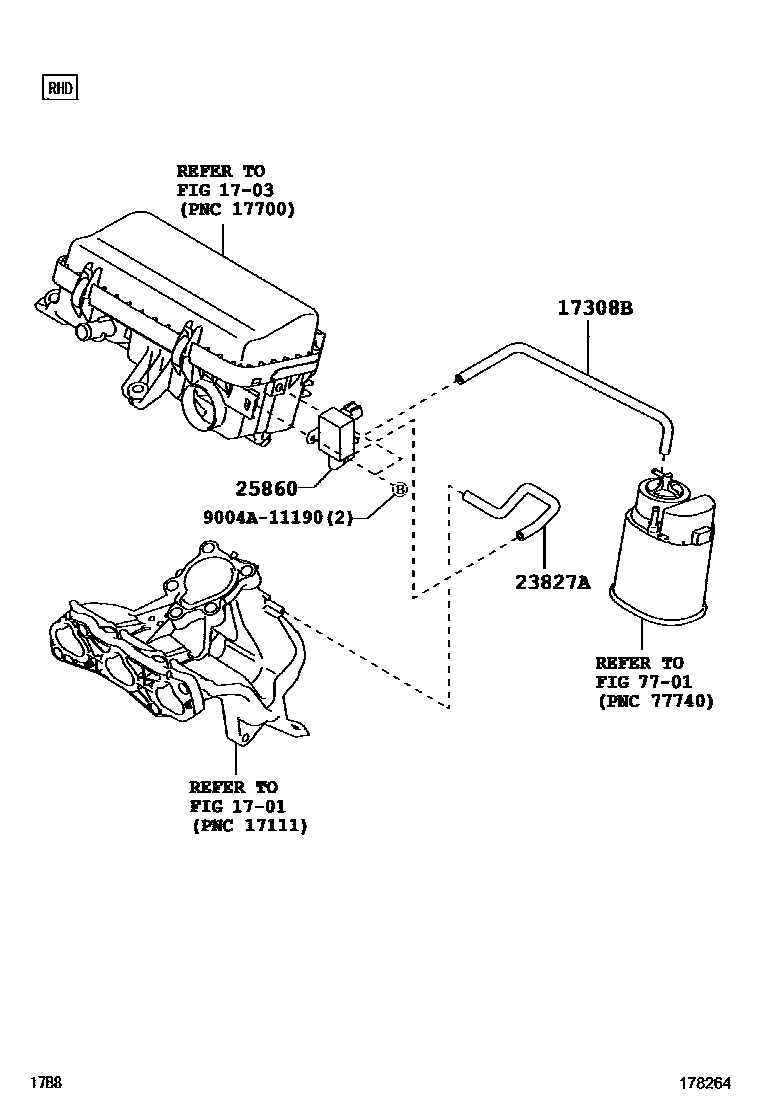

Parts diagram
1701MANIFOLD
→ Go to FIG 17-01
1703AIR CLEANER
→ Go to FIG 17-03
17308BHOSE SUB-ASSY, VACUUM
main77754-BZ080i201212-201704
main77754-BZ090i201401-201704
NO.1
main77754-BZ230i201704-202003
NO.2
main77754-BZ240i201704-202003
NO.2
main77754-BZ250i201704-202003
NO.1
main77754-BZ260i201704-202003
NO.1
main77754-BZ300i201712-202003
NO.1
main77754-BZ310i202003
NO.2
main77754-BZ320i201704-202003
NO.1
main77754-BZ330i202003
NO.2
main77795-BZ100i201401-201704
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
main23827-BZ010i201212-201704
main23827-BZ060i201704-202003
main23827-BZ080i201704-202003
25860VALVE ASSY, VACUUM SWITCHING, NO.1
main25860-BZ020i202003
main89470-BZ040i201212-201704
main9004A-91069i202003
7701FUEL TANK & TUBE
→ Go to FIG 77-01
9004A11190
main9004A-11190

7 parts on this diagram · 5 diagrams in section
