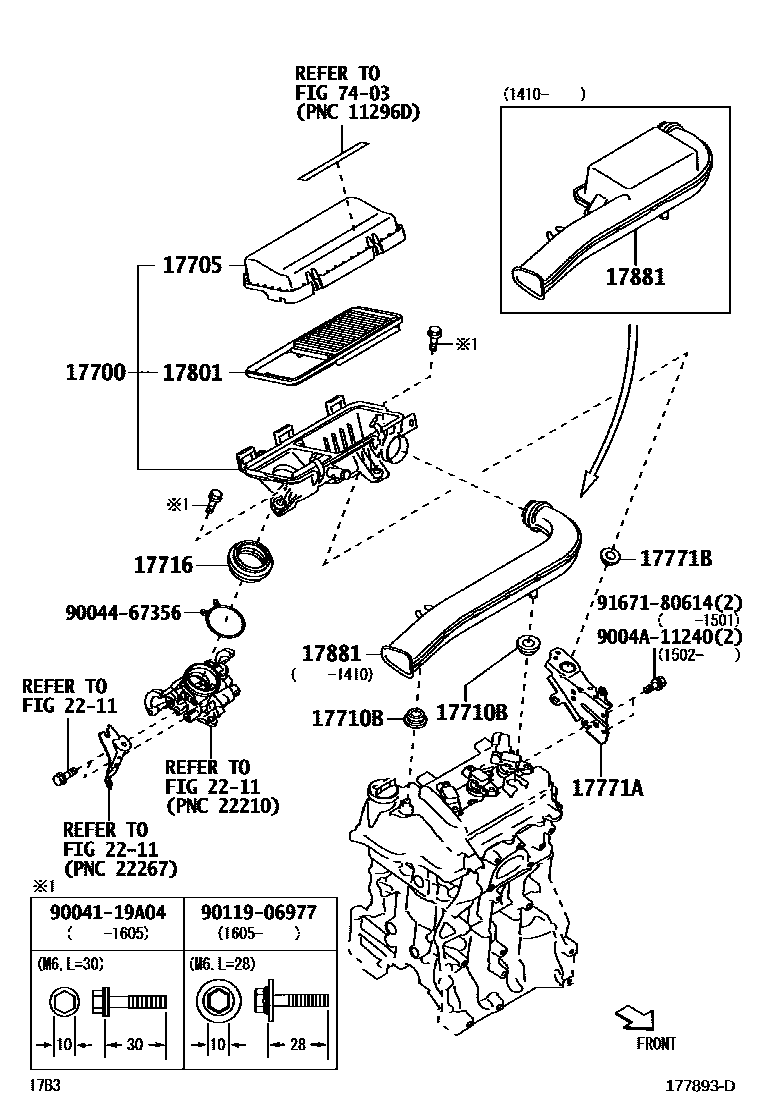

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-BZ150i1KRDE..B100201212-201704

main17700-BZ180i3NRVE..B101202003

main17700-BZ210i1KRVE..B100202003

17705CAP SUB-ASSY, AIR CLEANER

main17705-BZ140i1KRDE..B100201212-201704

main17705-BZ200i1KRVE..B100201704-202003

17710BGROMMET

main9004A-48056i1KRVE..B100201704-202003

17716SUPPORT,AIR CLEANER CAP

main17716-B2010i1KRDE..B100201212-201704

17771ABRACKET, AIR CLEANER

main17771-BZ050i1KRDE..B100201212-201704

main17771-BZ130i1KRVE..B100201704-202003

17771BGROMMET(FOR AIR CLEANER BRACKET)

main9004A-48056i1KRDE..B100201212-201704

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-BZ100i1KRDE..B100201212-201704

main17801-BZ130i3NRVE..B101201704-202003

main17801-BZ140i1KRVE..B100202003

17881HOSE, AIR CLEANER, NO.1

main17881-BZ100i1KRDE..B100201212-201410

main17881-BZ160i1KRDE..B100201410-201704

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9004119A04

main90041-19A04

9004467356

main90044-67356

9004A11240

main9004A-11240

9011906977

main90119-06977

9167180614

main91671-80614

15 parts on this diagram · 3 diagrams in section
