EXHAUST PIPE

0001 1 0002 1

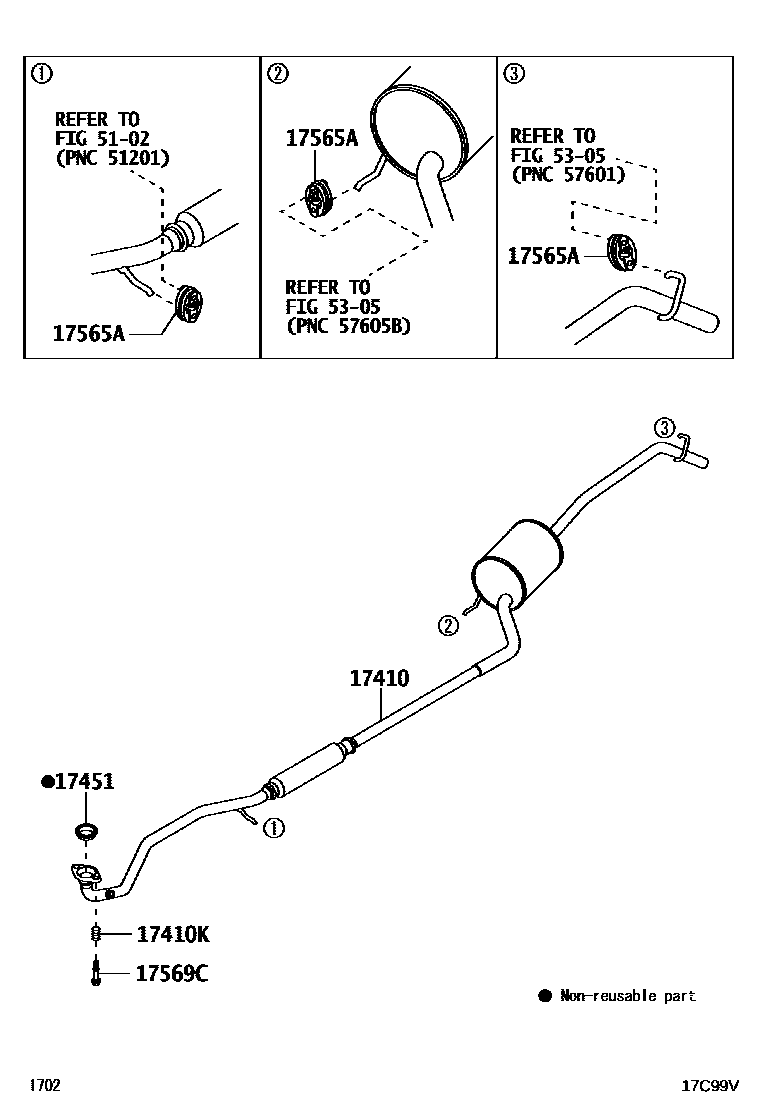

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZ530supersedes 17410-BZ540i1KRDE..B100..WIGO201401-201511

main17410-BZ540i1KRDE..B100..WIGO201511-201704

main17410-BZ780i3NRVE..B101..AGYA201704-201810

PAINTED=BLACK

main17410-BZ790i3NRVE..B101..WIGO201712-202003

PAINTED=BULE

main17410-BZ800i1KRVE..B100..AGYA201704-201810

main17410-BZ810i1KRVE..B100202003

17410KSPRING, EXHAUST PIPE

main17152-BZ010×2i1KRVE,3NRVE..B10#201704-202003

17451GASKET, EXHAUST PIPE

main17451-B0010i1KRVE,3NRVE..B10#201704-202003

17565ASUPPORT, EXHAUST PIPE, NO.4

main17567-87703×3i1KRVE,3NRVE..B10#201704-202003

main17567-BZ140×3i1KRVE,3NRVE..B10#202111

17569CBOLT, EXHAUST PIPE SUPPORT

main9004A-10221×2i1KRDE..B100201509-201704

main90901-05026×2i1KRVE,3NRVE..B10#202201

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05
