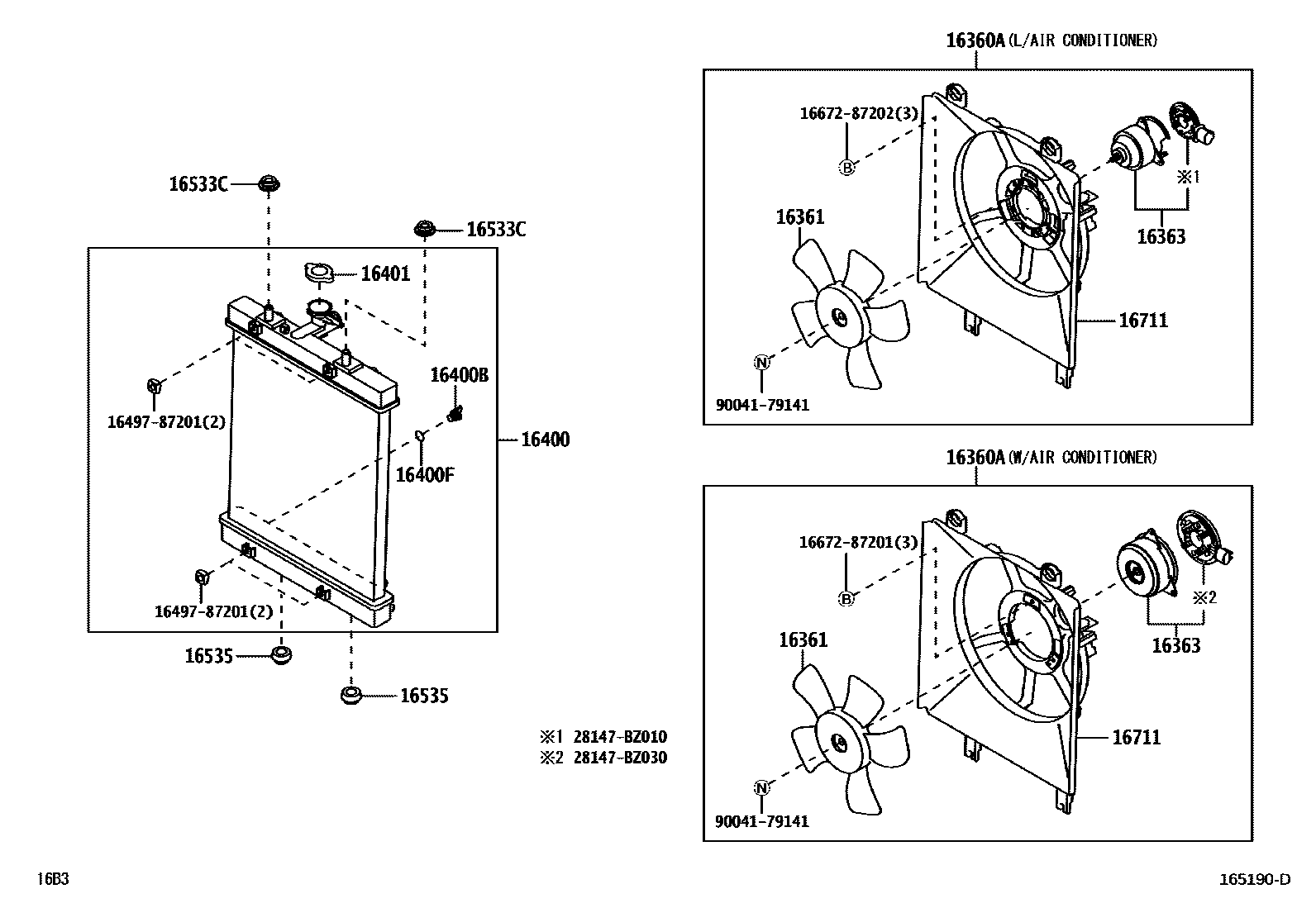

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1RADIATOR 0003 1RADIATOR 0004 1HOSE 0005 1HOSE 0006 1HOSE 0007 1HOSE 0008 1HOSE

16360AFAN ASSY, W/MOTOR

main16360-BZ190i1KRDE..B100..HI,MID; 1KRDE..B100..LO201212-201704

AIR CONDITIONER-MANUAL

main16360-BZ330i1KRVE,3NRVE..B10#201704-202003

main16360-BZ180i1KRDE..B100..LO201212-201704

AIR CONDITIONER-D-OPT KIT

16361FAN

main16361-BZ110i1KRDE..B100..HI,MID; 1KRDE..B100..LO201212-201704

AIR CONDITIONER-MANUAL

main16361-BZ150i1KRVE,3NRVE..B10#201704-202003

main16361-BZ100i1KRDE..B100..LO201212-201704

AIR CONDITIONER-D-OPT KIT

16363MOTOR, COOLING FAN

main16363-BZ130i1KRVE,3NRVE..B10#201704-202003

main16363-BZ120i1KRDE..B100..LO201212-201704

AIR CONDITIONER-D-OPT KIT

16400RADIATOR ASSY

main16400-BZ550i1KRDE..B100..MTM201212-201704

main16400-BZ560i1KRDE..B100..ATM201212-201704

main16400-BZA40i3NRVE..B101202003

main16400-BZA50i1KRVE..B100201704-202003

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i1KRVE,3NRVE..B10#201704-202003

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-87503i1KRVE,3NRVE..B10#201704-202003

16401CAP SUB-ASSY, RADIATOR

main16401-BZ100i1KRVE,3NRVE..B10#201704-202003

16533CGROMMET(FOR RADIATOR SUPPORT)

main9004A-48017×2i1KRVE,3NRVE..B10#201704-202003

16535SUPPORT, RADIATOR, LOWER

main9004A-48030×2i1KRVE,3NRVE..B10#201704-202003

16711SHROUD, FAN

main16711-BZ090i1KRDE..B100..HI,MID; 1KRDE..B100..LO201212-201704

AIR CONDITIONER-MANUAL

main16711-BZ160i1KRVE,3NRVE..B10#201704-202003

main16711-BZ080i1KRDE..B100..LO201212-201704

AIR CONDITIONER-D-OPT KIT

1649787201INLET SUB-ASSY

main16497-87201

1667287201

main16672-87201

1667287202

main16672-87202

28147BZ010

main28147-BZ010

28147BZ030

main28147-BZ030

9004179141

main90041-79141

16 parts on this diagram · 8 diagrams in section
