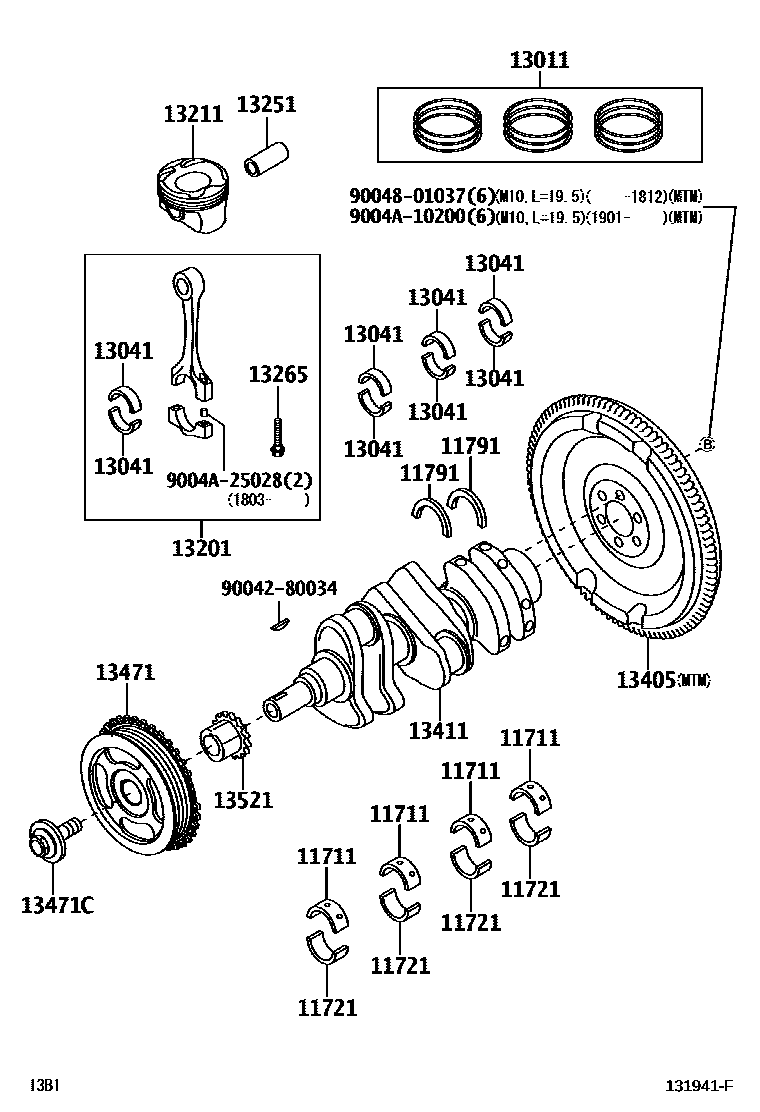

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11701-0Y030-02×5i3NRVE..B101201704-202003

MARK2

main11701-0Y030-03×5i3NRVE..B101202003

MARK3

main11701-0Y030-04×5i3NRVE..B101202003

MARK4

main11701-0Y030-05×5i3NRVE..B101202003

MARK5

main11711-BZ130-02×4i1KRVE..B100202003

MARK2

main11711-BZ130-03×4i1KRDE..B100201212-201704

MARK3

main11711-BZ130-04×4i1KRDE..B100201212-201704

MARK4

main11711-BZ130-05×4i1KRVE..B100201704-202003

MARK5

main11714-BZ030×4i1KRVE..B100201704-202003

REPAIR,U/S 0.25

11721BEARING, CRANKSHAFT, NO.2

main11721-BZ070-02×4i1KRVE..B100202003

MARK2

main11721-BZ070-03×4i1KRDE..B100201212-201704

MARK3

main11721-BZ070-04×4i1KRDE..B100201212-201704

MARK4

main11721-BZ070-05×4i1KRVE..B100202003

MARK5

main11724-BZ030×4i1KRVE..B100201704-202003

REPAIR,U/S 0.25

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010×2i3NRVE..B101201704-202003

STD

main11791-BZ100×2i1KRDE..B100201212-201704

STD

main11792-BZ050×2i1KRVE..B100201704-202003

O/S 0.125,REPAIR

main11793-BZ050×2i1KRVE..B100202003

O/S 0.25,REPAIR

13011RING SET, PISTON

main13011-0Y030i3NRVE..B101201704-202003

STD

main13011-BZ150i1KRDE..B100201212-201601

STD

main13011-BZ161i1KRDE..B100201602-201704

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01×4i3NRVE..B101201704-202003

MARK1

main13041-0Y040-02×4i3NRVE..B101201704-202003

MARK2

main13041-0Y040-03×4i3NRVE..B101201704-202003

MARK3

main13281-BZ110-01×6i1KRVE..B100201704-202003

MARK1

main13281-BZ110-02×6i1KRVE..B100201704-202003

MARK2

main13281-BZ110-03×6i1KRVE..B100201704-202003

MARK3

main13288-BZ010×6i1KRVE..B100202003

REPAIR,U/S 0.10

13201ROD SUB-ASSY, CONNECTING

main13201-B9070×3i1KRVE..B100202003

main13201-B9090×4i3NRVE..B101202003

13211PISTON

main13211-BZ200×3i1KRDE..B100201212-201601

main13211-BZ201×3i1KRDE..B100201602-201704

main13211-BZ270×3i1KRVE..B100202003

13251PIN, PISTON

main13251-0Y030×4i3NRVE..B101201704-202003

main13251-BZ040×3i1KRVE..B100201704-202003

13265BOLT, CONNECTING ROD

main13265-0Y020×8i1KRVE..B100; 3NRVE..B101202001-202003

main13265-21020×6i1KRVE..B100; 3NRVE..B101201704-201912

13405FLYWHEEL SUB-ASSY

main13405-BZ120i1KRVE..B100..MTM201704-202003

main13405-BZ150i3NRVE..B101..MTM202003

13411CRANKSHAFT

main13401-BZ060i3NRVE..B101202003

main13411-40030i1KRDE..B100201212-201409

main13411-BZ040i1KRVE..B100201704-202003

main13411-BZ110i1KRVE..B100202006

13471PULLEY, CRANKSHAFT

main13470-0Y020i3NRVE..B101201704-202003

main13470-BZ060i1KRDE..B100201212-201704

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-20282i1KRDE..B100201608-201704

main90119-14106i1KRDE..B100201212-201507

main90119-14175i1KRDE..B100201508-201607

main90119-T0444i3NRVE..B101202003

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0Y040i3NRVE..B101201704-202003

main13521-BZ030i1KRVE..B100202003

9004280034

main90042-80034

9004801037

main90048-01037

9004A10200

main9004A-10200

9004A25028

main9004A-25028

18 parts on this diagram · 2 diagrams in section
