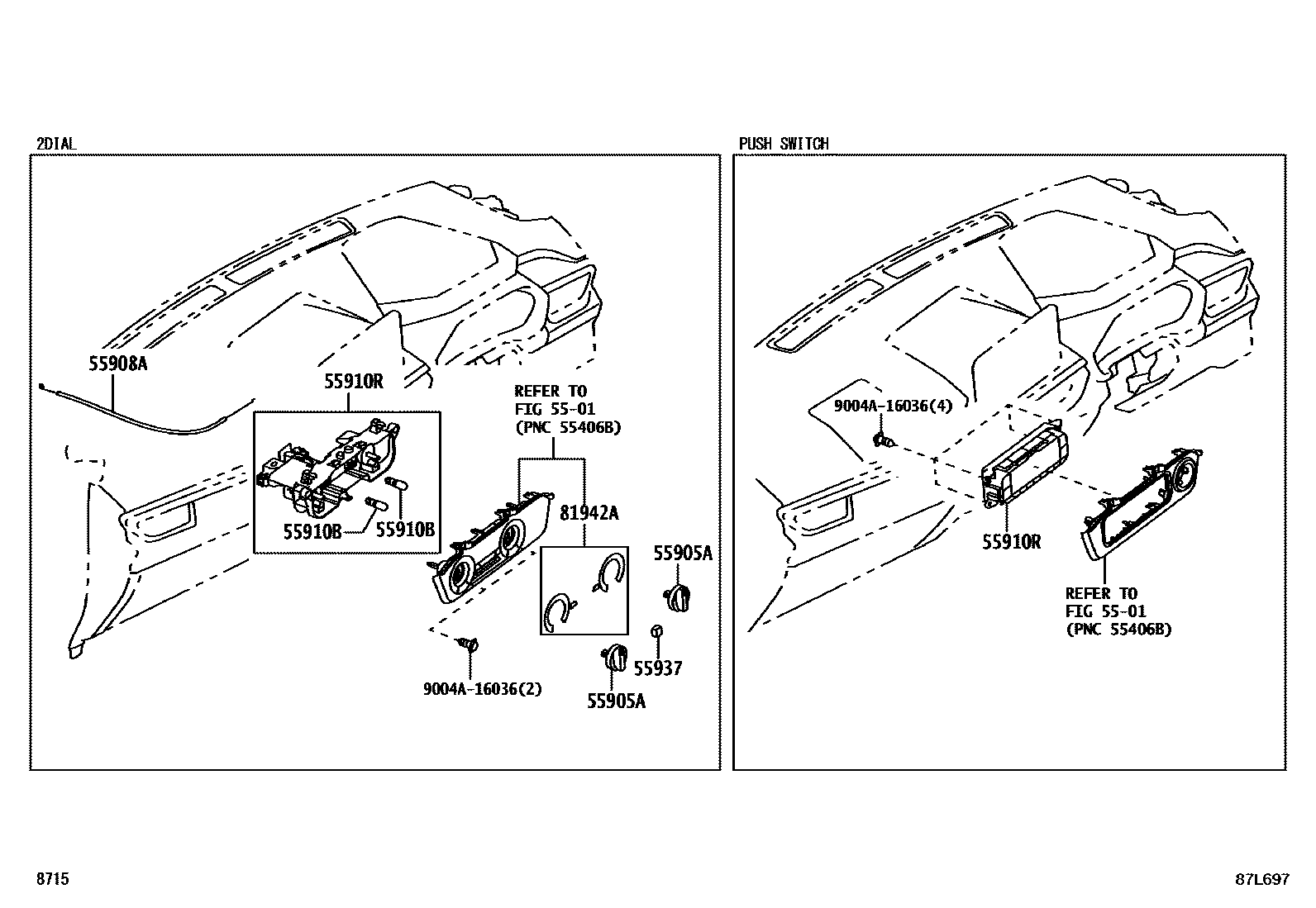

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1CONTROL PANEL(DIAL TYPE) 0005 1CONTROL PANEL(PUSH SWITCH TYP0006 1AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55905AKNOB, HEATER CONTROL

main55804-BZ030iA351..N;A350..LHD..N202303

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-BZ250iA351..N..IDN202303

main55908-BZ260iA35#..LHD..N202303

55910BBULB, HEATER CONTROL

main81936-BZ230iA35#..N..(IDN,PH)202303

main81936-BZ240iA35#..LHD..N..GEN202303

55910RCONTROL ASSY, HEATER

main55910-BZ770iA35#..(E,G)..(IDN,PH)202303

main55910-BZA00iA35#..LHD..N..GEN202303

main55910-BZB30iA35#..N..(IDN,PH)202303

main55910-BZB50iA350..RHD;A35#..E..GEN202303

55937KNOB, HEATER CONTROL LEVER

main55925-BZ070iA351..N;A350..LHD..N202303

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-BZ040iA35#..LHD..N..GEN202303

main81941-BZ150iA35#..N..(IDN,PH)202303

9004A16036

main9004A-16036

8 parts on this diagram · 6 diagrams in section
