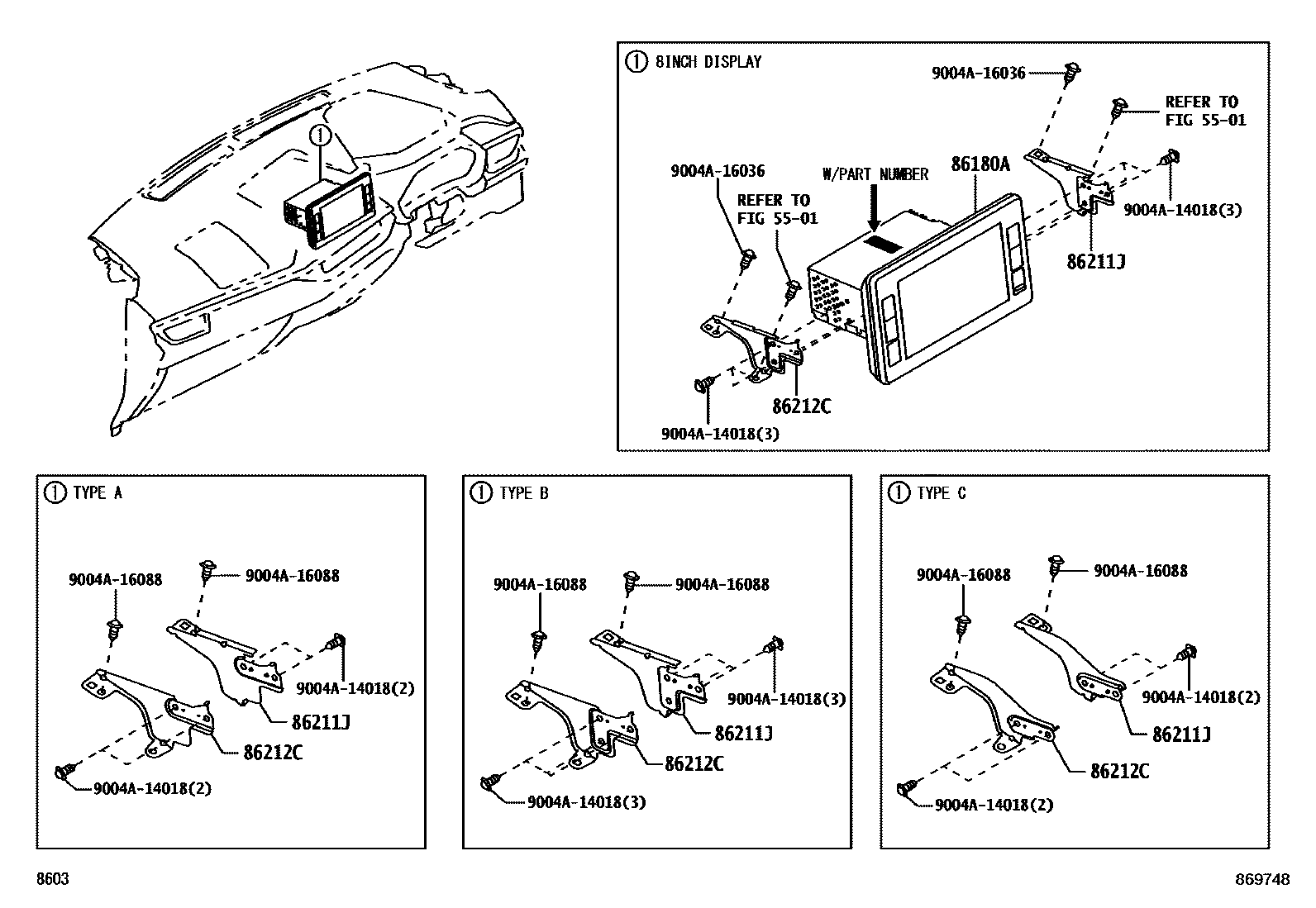

NAVIGATION & FRONT MONITOR DISPLAY
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
86180ATUNER ASSY, STEREO COMPONENT
BLACK; DESTINATION PACKAGE(ASIA)-CAMBODIA&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(ASIA)-LAOS&DISPLAY AUDIO(8INCH),BLACK
BLACK; DESTINATION PACKAGE(ASIA)-CAMBODIA&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(ASIA)-LAOS&DISPLAY AUDIO(8INCH),BLACK
DESTINATION PACKAGE(ASIA)-RHD ASIA&DISPLAY AUDIO(8INCH),BLACK
DESTINATION PACKAGE(ASIA)-RHD ASIA&DISPLAY AUDIO(8INCH),BLACK
main86180-BZE50-C0iA351..LHD..CVT..E; A351..LHD..E;A350..CVT..E..GEN;A350..LHD..5F..N..GEN; A351..LHD..E;A350..LHD..5F..N..GEN202303-202402
DESTINATION PACKAGE(OTHER-COSTA RICA&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR&DISPLAY AUDIO(8INCH),BLACK
main86180-BZE51-C0iA351..5F..E..GEN;A350..LHD..5F..N..GEN; A351..LHD..CVT..E; A351..LHD..E;A350..CVT..E..GEN;A350..LHD..5F..N..GEN; A351..LHD..E;A350..LHD..5F..N..GEN202403
DESTINATION PACKAGE(OTHER-COSTA RICA&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR&DISPLAY AUDIO(8INCH),BLACK; DESTINATION PACKAGE(OTHER-URUGUAY&DISPLAY AUDIO(8INCH),BLACK
DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)&DISPLAY AUDIO(8INCH),-
DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)&DISPLAY AUDIO(8INCH),BLACK
86211JBRACKET, RADIO RECEIVER, NO.1
TYPE C
main86211-BZ570iA351..E..GEN;A350..CVT..E..GEN;A350..LHD..5F..N..GEN; A351..G; A351..LHD..CVT..E; A351..LHD..E;A350..LHD..5F..N..GEN202303
DESTINATION PACKAGE(OTHER-COSTA RICA; DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP); DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR; TYPE B
TYPE A
86212CBRACKET, RADIO RECEIVER, NO.2
TYPE C
main86212-BZ570iA351..E..GEN;A350..CVT..E..GEN;A350..LHD..5F..N..GEN; A351..G; A351..LHD..CVT..E; A351..LHD..E;A350..LHD..5F..N..GEN202303
DESTINATION PACKAGE(OTHER-COSTA RICA; DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP); DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR; TYPE B
TYPE A
9004A14018
main9004A-14018
9004A16036
main9004A-16036
9004A16088
main9004A-16088
7 parts on this diagram · 1 diagram in section
