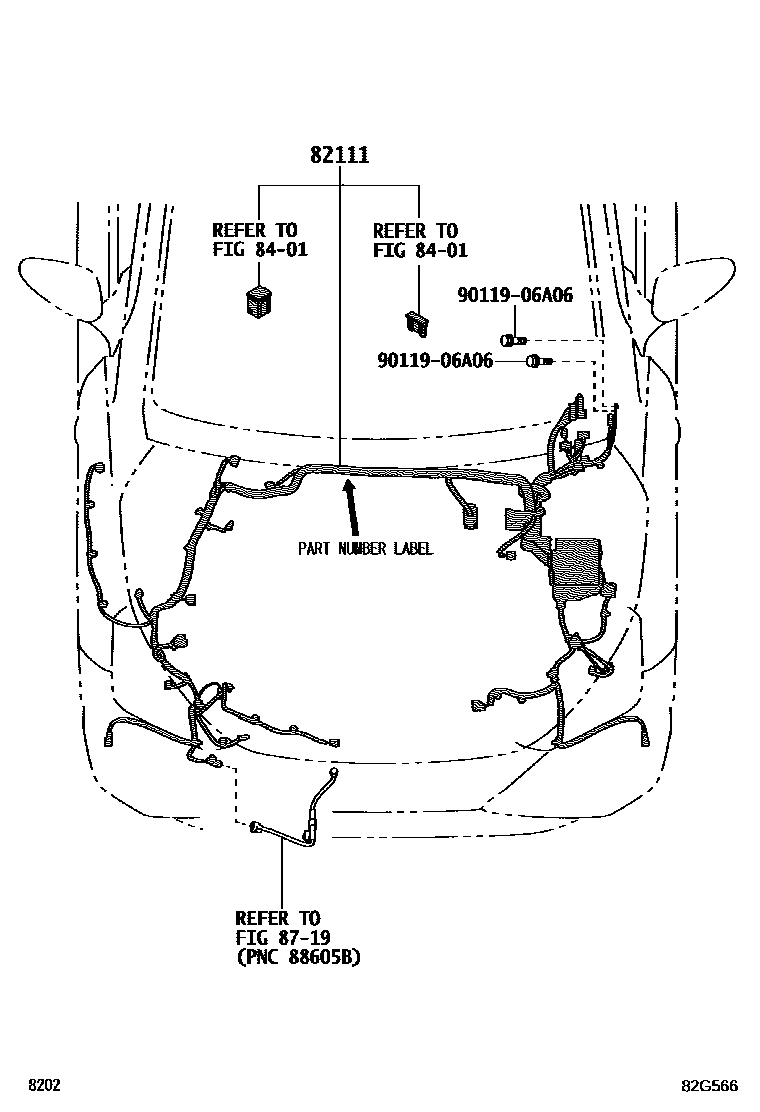

82111WIRE, ENGINE ROOM MAIN

main82111-BYF90iA350..RHD;A351..RHD..E202303

main82111-BYG10iA350..CVT..PH;A35#..LHD..GEN202303

main82111-BYK30iA351..N..IDN202303

main82111-BYM20iA350..5F..E; A350..5F..PH202306

DESTINATION PACKAGE(ASIA)-LAOS

main82111-BZZ70iA351..G202303

main82111-BYF70iA351..RHD..GEN202306

FRONT BUMPER-A STYLE

main82111-BYG00iA351..LHD..E;A350..CVT..E..GEN;A350..LHD..N..GEN202303

FRONT BUMPER-A STYLE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

9011906A06

main90119-06A06

4 parts on this diagram · 8 diagrams in section
