CENTER STOP LAMP

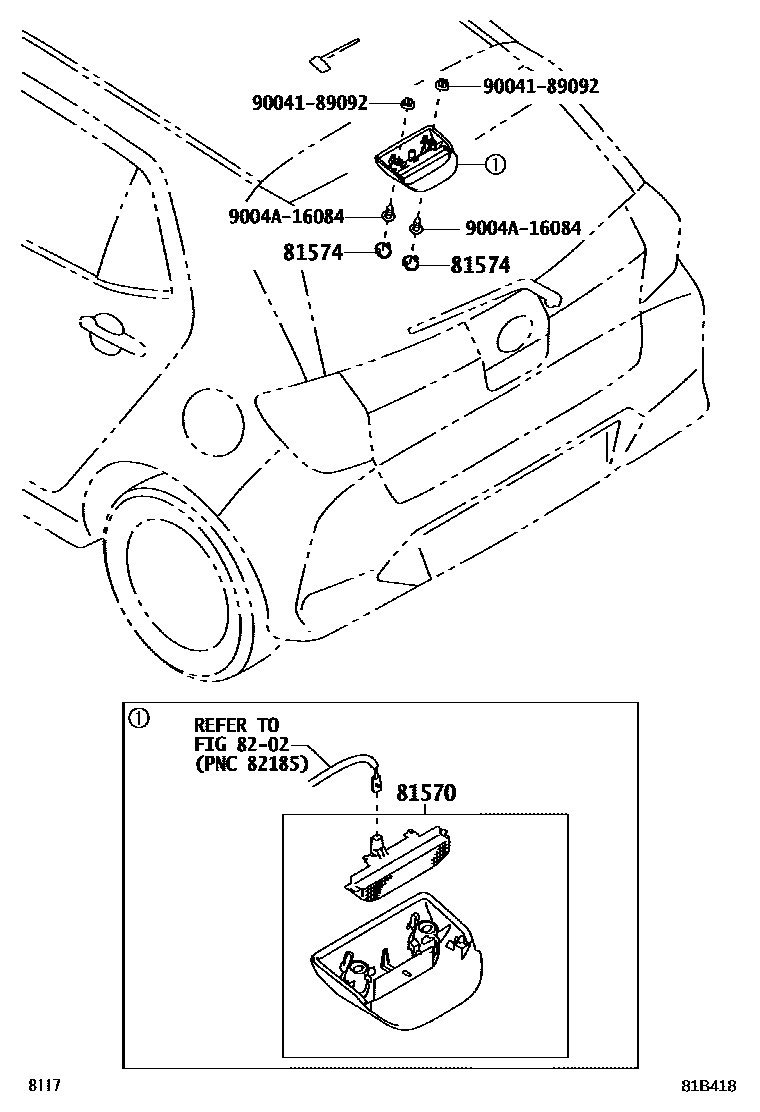

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-BZ350i202303

81574COVER, CENTER STOP LAMP

main81952-BZ050×2i202303

8202WIRING & CLAMP

→ Go to FIG 82-02

9004189092

main90041-89092

9004A16084

main9004A-16084

5 parts on this diagram · 1 diagram in section
