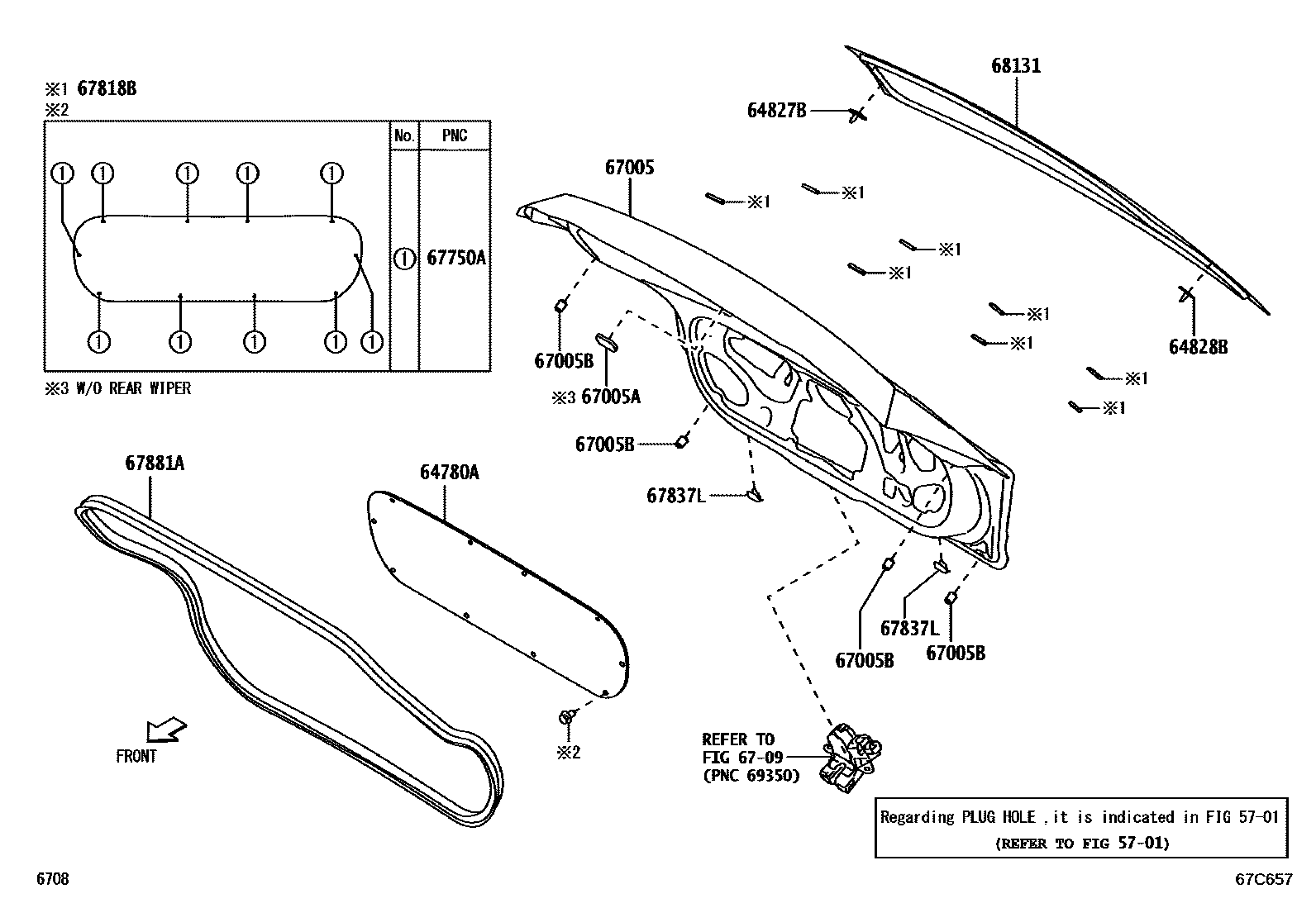

BACK DOOR PANEL & GLASS

0001 1BACK DOOR PANEL & GLASS 0002 1BACK DOOR GARNISH

5701HOLE PLUG

→ Go to FIG 57-01

64780APANEL ASSY, BACK DOOR TRIM

main64781-BZ070-C0iA35#202303

BLACK,TRIM2#

64827BCLIP, BACK WINDOW GLASS, RH

main64827-BZ160iA35#202303

64828BCLIP, BACK WINDOW GLASS, LH

main64828-BZ130iA35#202303

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZJ50iA350..5F..PH202306

main67005-BZJ60iA350..CVT..N..PH202306

main67005-BZJ70iA351..N..IDN202303

main67005-BZJ80iA351..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main67005-BZK90iA35#..LHD..N..GEN202303

main67005-BZL00iA351..G202303

67005APLUG, HOLE(FOR BACK DOOR PANEL)

main85373-BZ050iA35#..5F..N..(IDN,PH)202303

67005BCUSHION(FOR BACK DOOR PANEL)

main9004A-54016iA35#202303

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67750ACLIP(FOR BACK DOOR TRIM)

main90044-67609-C0iA35#202303

BLACK,TRIM2#

67818BSPACER, BACK WINDOW GLASS

main64818-BZ050iA35#202303

67837LSEAL, DOOR DUST PROOF

main67837-BZ030iA35#202303

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ250iA35#202303

68131GLASS, BACK DOOR

main68105-BZ420iA35#..GEN202303

main68131-BZ690iA35#..IDN,PH202303

13 parts on this diagram · 2 diagrams in section
