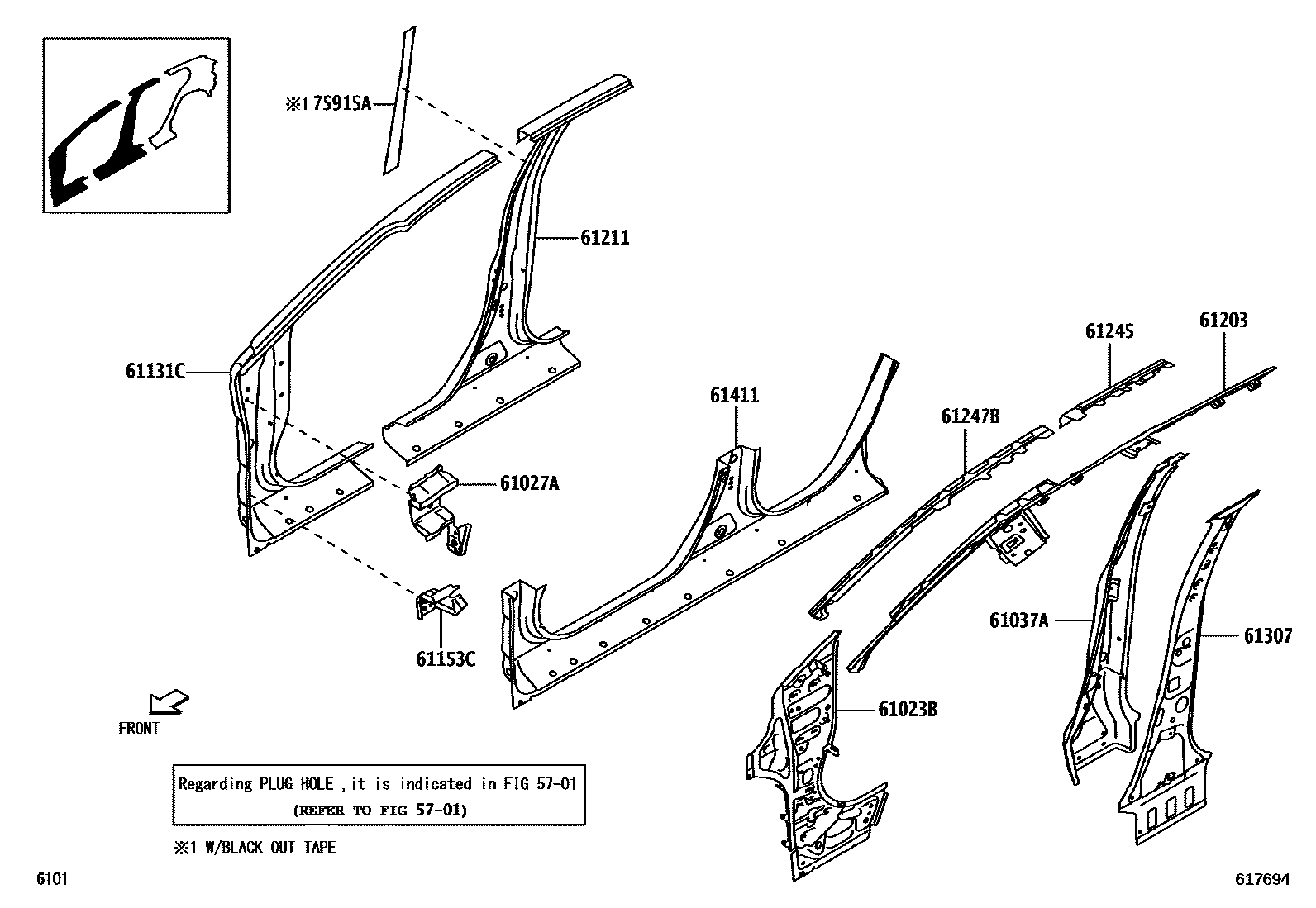

SIDE MEMBER

0001 1RH FRONT 0002 1RH REAR 0003 1LH FRONT 0004 1LH REAR 0005 1CUT DIMENSIONS

5701HOLE PLUG

→ Go to FIG 57-01

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ520iA35#..RHD202303

main61023-BZ540iA350..CVT..PH;A35#..LHD..GEN202303

main61023-BZ580iA350..5F..E; A350..5F..PH202306

DESTINATION PACKAGE(ASIA)-LAOS

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-BZ020iA35#202303

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ350iA35#202303

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ620iA35#..E,N202303

main61131-BZ670iA351..G202303

61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH

main61153-BZ180iA35#202303

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ140iA35#202303

61211RAIL, ROOF SIDE, OUTER RH

main61211-BZ140iA35#..E,N202303

main61211-BZ180iA351..G202303

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-BZ100iA35#202303

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-BZ160iA35#202303

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-BZ110iA35#202303

61411PANEL, ROCKER, OUTER RH

main61411-BZ480iA35#..E,N202303

main61411-BZ520iA351..G202303

75915ATAPE, BLACK OUT CENTER PILLAR, RH

main75915-BZ080-C0iA351..G202303

TUYAKESI BLACK DUMMYCOLOR,XJ7 ,XL4

13 parts on this diagram · 5 diagrams in section
