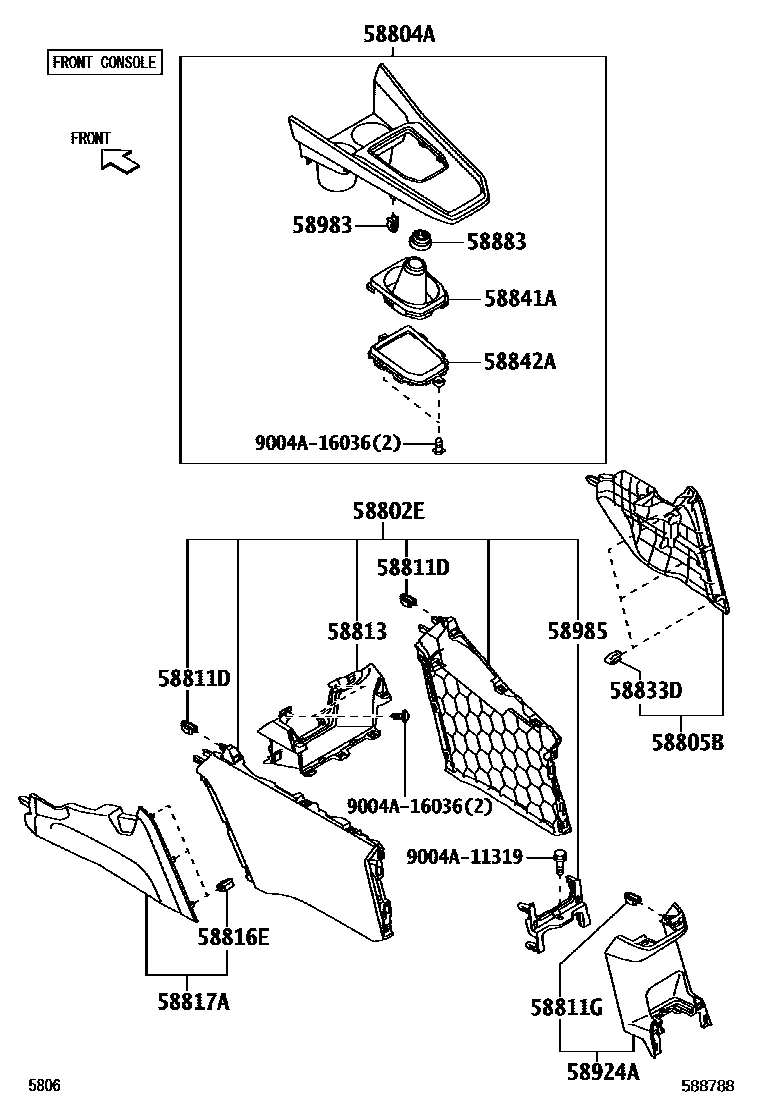

CONSOLE BOX & BRACKET

0001 1FRONT CONSOLE 0002 1FRONT CONSOLE 0003 1FRONT CONSOLE 0004 1REAR CONSOLE

58802EBOX SUB-ASSY, CONSOLE, FRONT

main58802-BZ140-C0iA35#202303

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-BZ400-C0iA35#..5F..(E,N)202303

BLACK,TRIM2#

main58804-BZ410-C0iA35#..RHD..CVT..GEN202306

BLACK,TRIM2#

main58804-BZ420-C0iA351..CVT..E..IDN202303

BLACK,TRIM2#

main58804-BZ430-C0iA35#..LHD..CVT202303

BLACK,TRIM2#

main58804-BZ800-C0iA351..5F..G202303

GR RED GOSEN Y55,TRIM2#

main58804-BZ810-C0iA351..CVT..G202303

GR RED GOSEN Y55,TRIM2#

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-BZ020-C0iA35#..RHD202303

BLACK,TRIM2#

main58817-BZ030-C0iA35#..LHD202303

BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-05172iA35#202303

58811GCLIP(CONSOL BOX)

main90467-05171iA35#202303

58813BOX, CONSOLE, UPPER

main58813-BZ110-C0iA35#202303

BLACK,TRIM2#

58816ECLIP, CONSOLE BOX INSERT, FRONT

main90467-05171iA35#202303

58817RETAINER, CONSOLE PANEL

main90467-05171iA35#202303

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58805-BZ030-C0iA35#..LHD202303

BLACK,TRIM2#

main58817-BZ020-C0iA35#..RHD202303

BLACK,TRIM2#

58833DCLIP(FOR CONSOLE COVER)

main90467-05171iA35#202303

58841ACOVER, SHIFTING HOLE

main58841-BZ320-C0iA35#..5F..(E,N)202303

BLACK,TRIM2#

main58841-BZ330-C0iA35#..RHD..CVT..(E,N)202303

BLACK,TRIM2#

main58841-BZ420-C0iA35#..LHD..CVT202303

BLACK,TRIM2#

main58841-BZ430-C1iA351..5F..G202303

GR RED GOSEN Y55,TRIM2#

main58841-BZ440-C1iA351..CVT..G202303

GR RED GOSEN Y55,TRIM2#

58842AFRAME, SHIFTING HOLE

main58842-BZ270-C0iA35#..5F202303

BLACK,TRIM2#

main58842-BZ280-C0iA35#..RHD..CVT202303

BLACK,TRIM2#

main58842-BZ290-C0iA35#..LHD..CVT202303

BLACK,TRIM2#

58883RETAINER, SHIFTING HOLE COVER

main58287-BZ130-C0iA35#..5F202303

BLACK,TRIM2#

main58287-BZ140-C0iA35#..CVT202303

BLACK,TRIM2#

58924APANEL, CONSOLE REAR END, NO.2

main58924-BZ060-C0iA35#202303

BLACK,TRIM2#

58983RETAINER, UPPER CONSOLE

main90467-05171iA35#202303

58985RETAINER, CONSOLE BOX

main58985-BZ110iA35#202303

9004A11319

main9004A-11319

9004A16036

main9004A-16036

18 parts on this diagram · 4 diagrams in section
