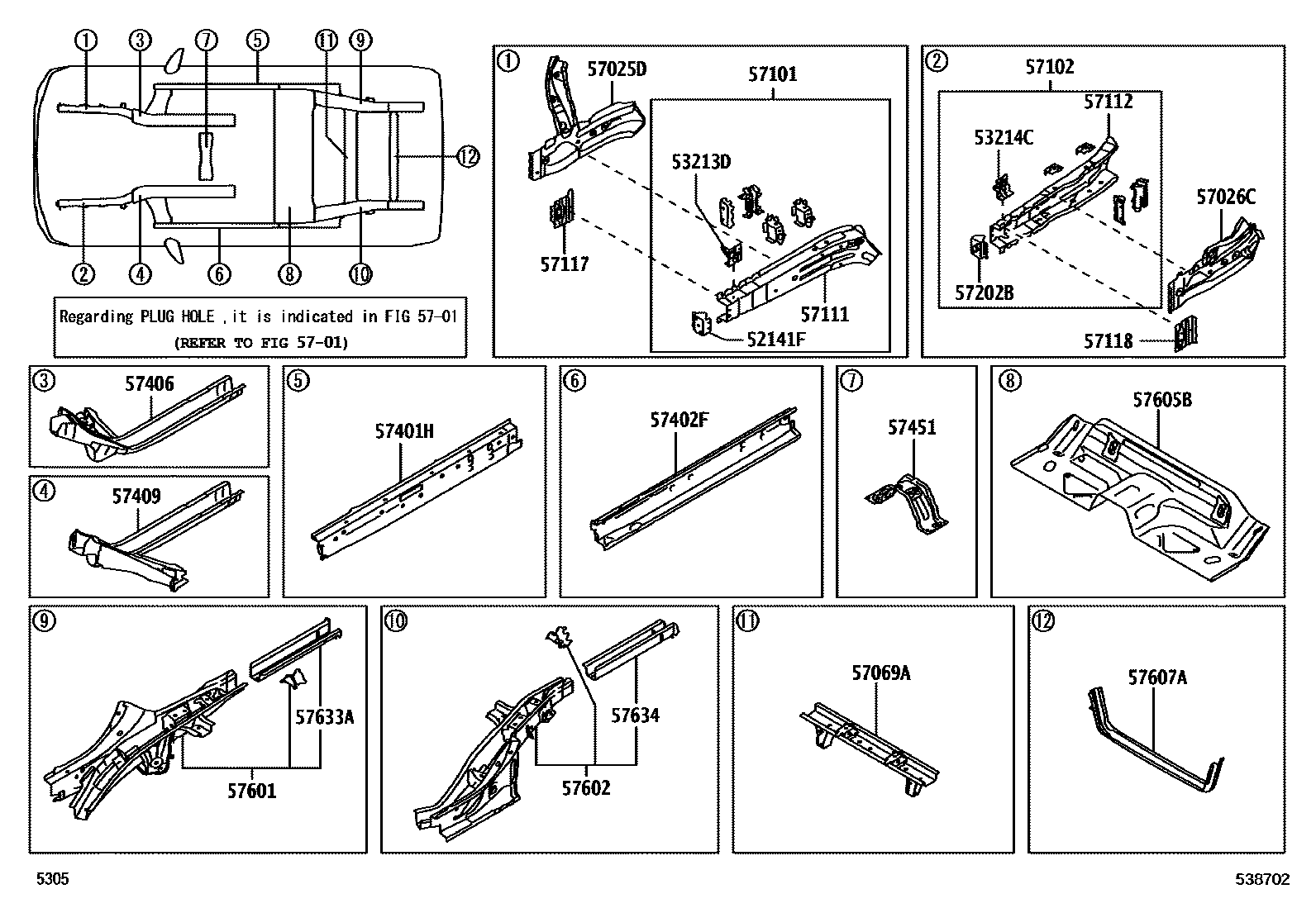

FLOOR SIDE MEMBER

52141FARM, FRONT BUMPER, RH

main52141-BZ120iA35#202303

53213DSUPPORT, RADIATOR, UPPER RH

main53213-BZ130iA35#202303

53214CSUPPORT, RADIATOR, UPPER LH

main53214-BZ110iA35#202303

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-BZ030iA35#202303

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-BZ030iA35#202303

57069AMEMBER, REAR FLOOR, CENTER

main57069-BZ190iA35#202303

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ760iA35#202303

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ850iA35#202303

57111MEMBER, FRONT SIDE, RH

main57111-BZ310iA35#202303

57112MEMBER, FRONT SIDE, LH

main57112-BZ330iA35#202303

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-BZ090iA35#202303

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-BZ090iA35#202303

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-BZ150iA35#202303

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-BZ540iA35#..RHD202303

main57411-BZ390iA35#..LHD202303

main57401-BZ420iA350..CVT..E..GEN202306

DESTINATION PACKAGE(ASIA)-CAMBODIA

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-BZ540iA35#..LHD202303

main57412-BZ420iA35#..RHD202303

main57402-BZ430iA350..CVT..E..GEN202306

DESTINATION PACKAGE(ASIA)-CAMBODIA

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ350iA35#202303

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ340iA35#202303

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ210iA35#202303

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-BZ640iA35#202303

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-BZ610iA35#202303

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-BZ220iA35#202303

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-BZ080iA35#202303

57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-BZ120iA35#202303

57634EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-BZ110iA35#202303

25 parts on this diagram · 1 diagram in section
