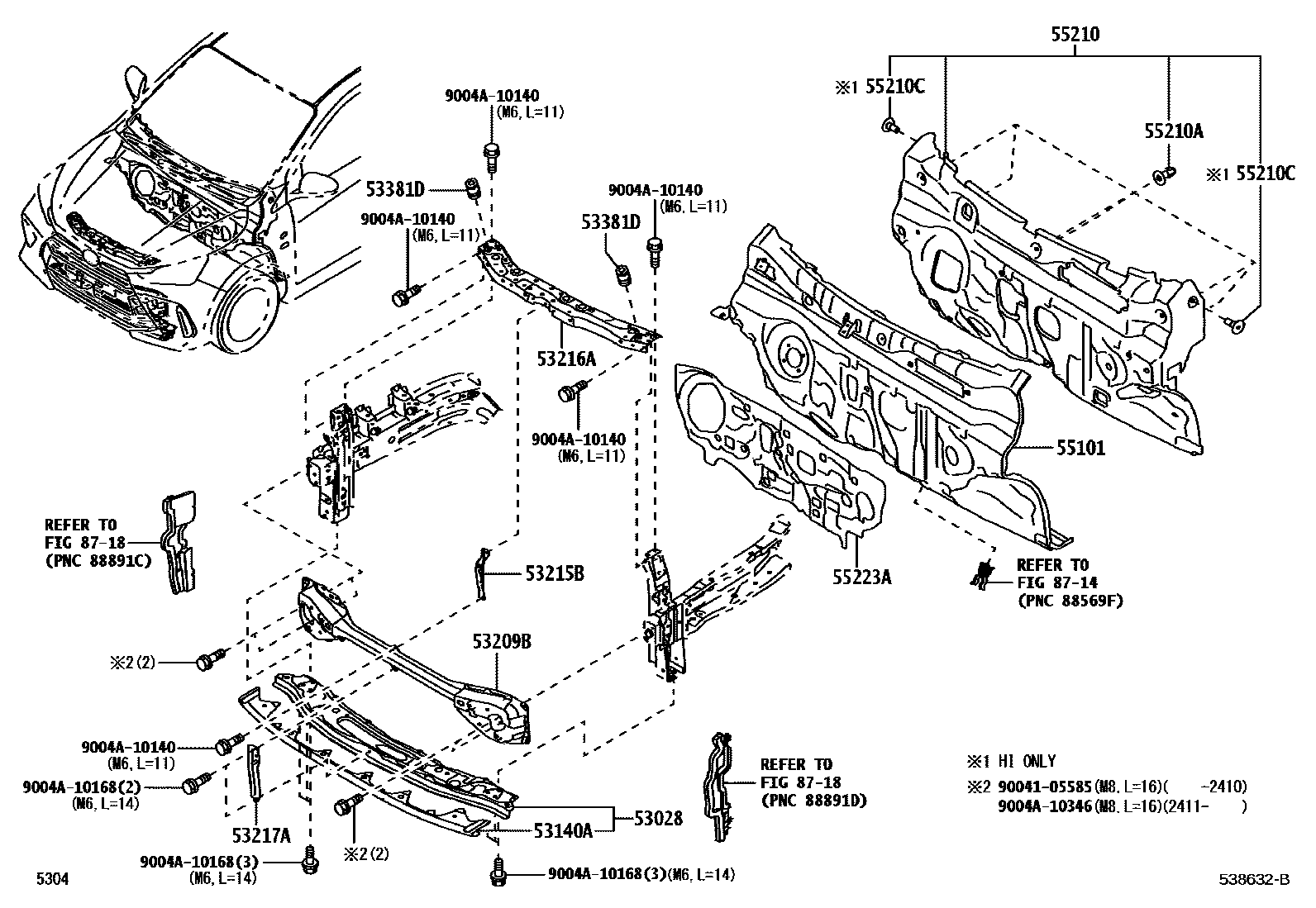

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT DASH PANEL 0002 1FRONT FENDER APRON

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ290iA35#202303

53140ACOVER, RADIATOR

main51451-BZ240iA35#202303

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-BZ120iA35#202303

53215BSUPPORT, HOOD LOCK

main53215-BZ280iA35#202303

53216ASUPPORT, RADIATOR, UPPER

main53216-BZ350iA35#202303

53217ABRACE, HOOD LOCK SUPPORT

main53217-BZ010iA35#202303

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-BZ050×2iA35#202303

55101PANEL SUB-ASSY, DASH

main55101-BZS40supersedes 55101-BZS50iA351..CVT..IDN202303

main55101-BZS80iA351..5F..IDN202303

main55101-BZS90iA350..RHD..5F202308

main55101-BZT10iA351..LHD..CVT202303

main55101-BZT30iA351..5F..GEN202303

main55101-BZU70iA350..LHD..CVT202306

main55101-BZU80iA350..LHD..5F202306

55210INSULATOR ASSY, DASH PANEL

main55210-BZ530iA35#..RHD..N202303

main55210-BZ720iA351..RHD..(E,G)202303

main55210-BZ730iA35#..LHD..N202303

main55210-BZ740iA35#..LHD..E202303

55210ACLIP

main90467-11122×6iA35#202303

55210CCLIP

main90467-13079×2iA35#..E,G202303

55223AINSULATOR, DASH PANEL, OUTER

main55223-BZ160iA35#..RHD202303

main55223-BZ180iA35#..LHD202303

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9004105585

main90041-05585

9004A10140

main9004A-10140

9004A10168

main9004A-10168

9004A10346

main9004A-10346

18 parts on this diagram · 2 diagrams in section
