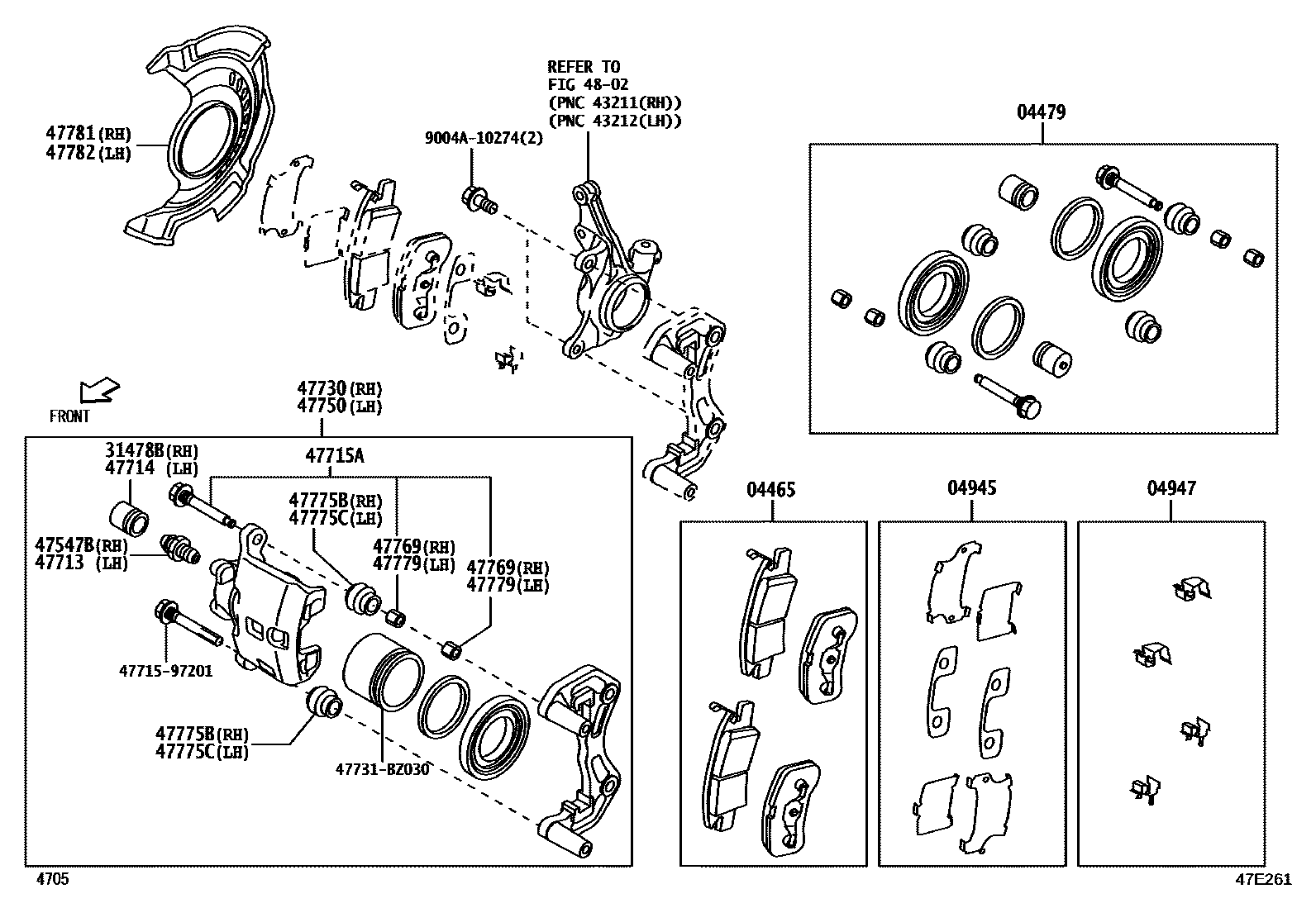

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-BZ154iA351..G;A35#..GEN;A350..CVT..PH202303

MARK JB YF01 B

main04465-BZ310iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-BZ111iA351..G;A35#..GEN;A350..CVT..PH202303

main04478-BZ153iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-BZ100iA351..G;A35#..GEN;A350..CVT..PH202303

main04945-BZ110iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

04947FITTING KIT, DISC BRAKE, FRONT

main04947-BZ030iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main04947-BZ100iA351..G;A35#..GEN;A350..CVT..PH202303

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ030iA351..G;A35#..GEN;A350..CVT..PH202303

main47548-BZ080iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ030iA351..G;A35#..GEN;A350..CVT..PH202303

main47547-BZ070iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ030iA351..G;A35#..GEN;A350..CVT..PH202303

main47547-BZ070iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ030iA351..G;A35#..GEN;A350..CVT..PH202303

main47548-BZ080iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-BZ030iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47715-BZ031iA351..G;A35#..GEN;A350..CVT..PH202303

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ110iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47730-BZ160iA351..G;A35#..GEN;A350..CVT..PH202303

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ080iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47750-BZ170iA351..G;A35#..GEN;A350..CVT..PH202303

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-BZ010×2iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47769-BZ050iA351..G;A35#..GEN;A350..CVT..PH202303

47775BBOOT, BUSH DUST, NO.1

main47775-BZ070×2iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

47775CBOOT, BUSH DUST, NO.2

main47775-BZ070×2iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-BZ010×2iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47769-BZ050iA351..G;A35#..GEN;A350..CVT..PH202303

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ230iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47781-BZ240iA351..G;A35#..GEN;A350..CVT..PH202303

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ230iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main47782-BZ240iA351..G;A35#..GEN;A350..CVT..PH202303

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

4771597201PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-97201

47731BZ030PISTON, FRONT DISC BRAKE

main47731-BZ030

9004A10274

main9004A-10274

21 parts on this diagram · 2 diagrams in section
