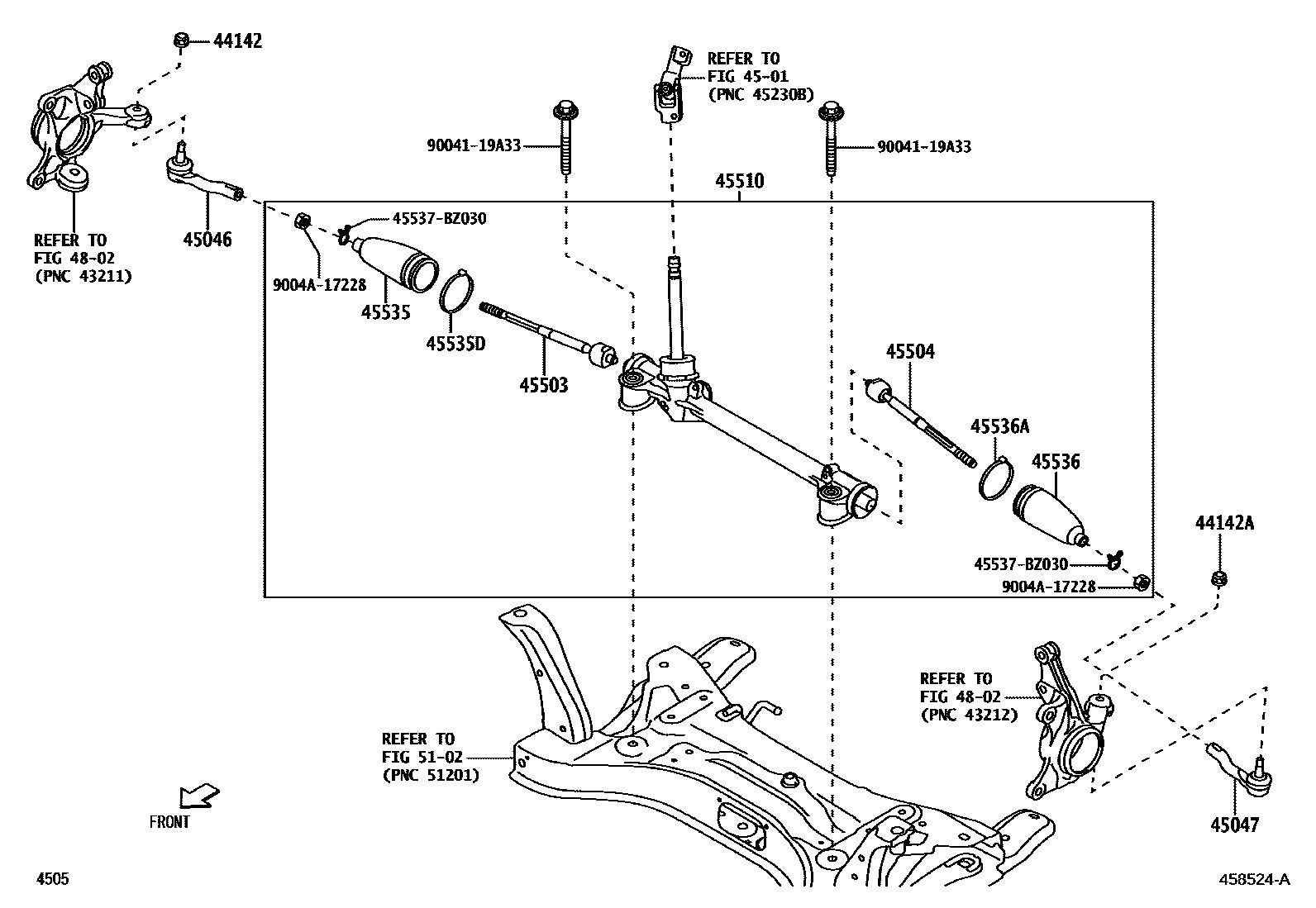

FRONT STEERING GEAR & LINK

0001 1RHD 0002 1LHD

44142NUT, LOCK

main90041-77011iA35#202303

44142ANUT, LOCK, NO.1

main90041-77011iA35#202303

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ290iA35#202303

45047END SUB-ASSY, TIE ROD, LH

main45047-BZ170iA35#202303

45503END SUB-ASSY, STEERING RACK

main45503-BZ290iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main45503-BZ350iA351..G;A35#..GEN;A350..CVT..PH202303

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-BZ290iA350..5F..PH;A351..(E,N)..IDN; A351..5F..N..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM

main45503-BZ350iA351..G;A35#..GEN;A350..CVT..PH202303

45510GEAR ASSY, STEERING

main45502-BZ130iA351..(E,N)..IDN202303

main45502-BZ140iA35#..RHD..GEN202306

main45502-BZ150iA350..CVT..PH;A35#..LHD..GEN202303

main45502-BZ190iA351..G202303

main45502-BZ210iA350..5F..PH202306

45535BOOT, STEERING RACK, NO.1

main45535-BZ110iA35#202303

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-BZ050iA35#202303

45536BOOT, STEERING RACK, NO.2

main45535-BZ110iA35#202303

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-BZ050iA35#202303

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

45537BZ030

main45537-BZ030

9004119A33

main90041-19A33

9004A17228

main9004A-17228

17 parts on this diagram · 2 diagrams in section
