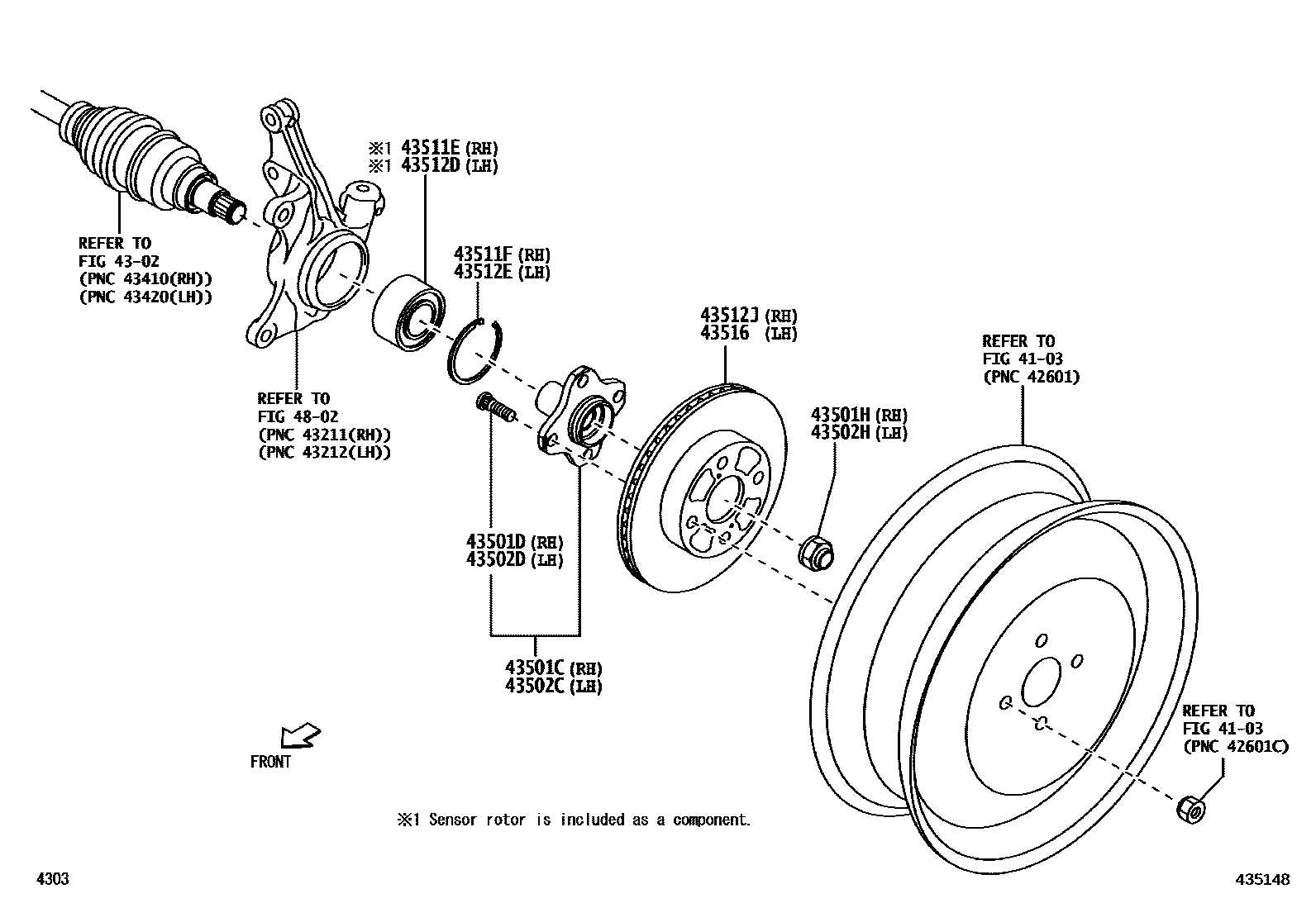

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-BZ150iA35#202303

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iA35#202303

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274iA35#202303

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-BZ150iA35#202303

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iA35#202303

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274iA35#202303

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ010iA35#202303

W/SENSOR ROTOR

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111iA35#202303

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ010iA35#202303

W/SENSOR ROTOR

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111iA35#202303

43512JDISC, FRONT RH

main43512-BZ230iA35#..GEN,PH202303

main43512-BZ270iA351..IDN202303

43516DISC, FRONT LH

main43512-BZ230iA35#..GEN,PH202303

main43512-BZ270iA351..IDN202303

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

15 parts on this diagram · 1 diagram in section
