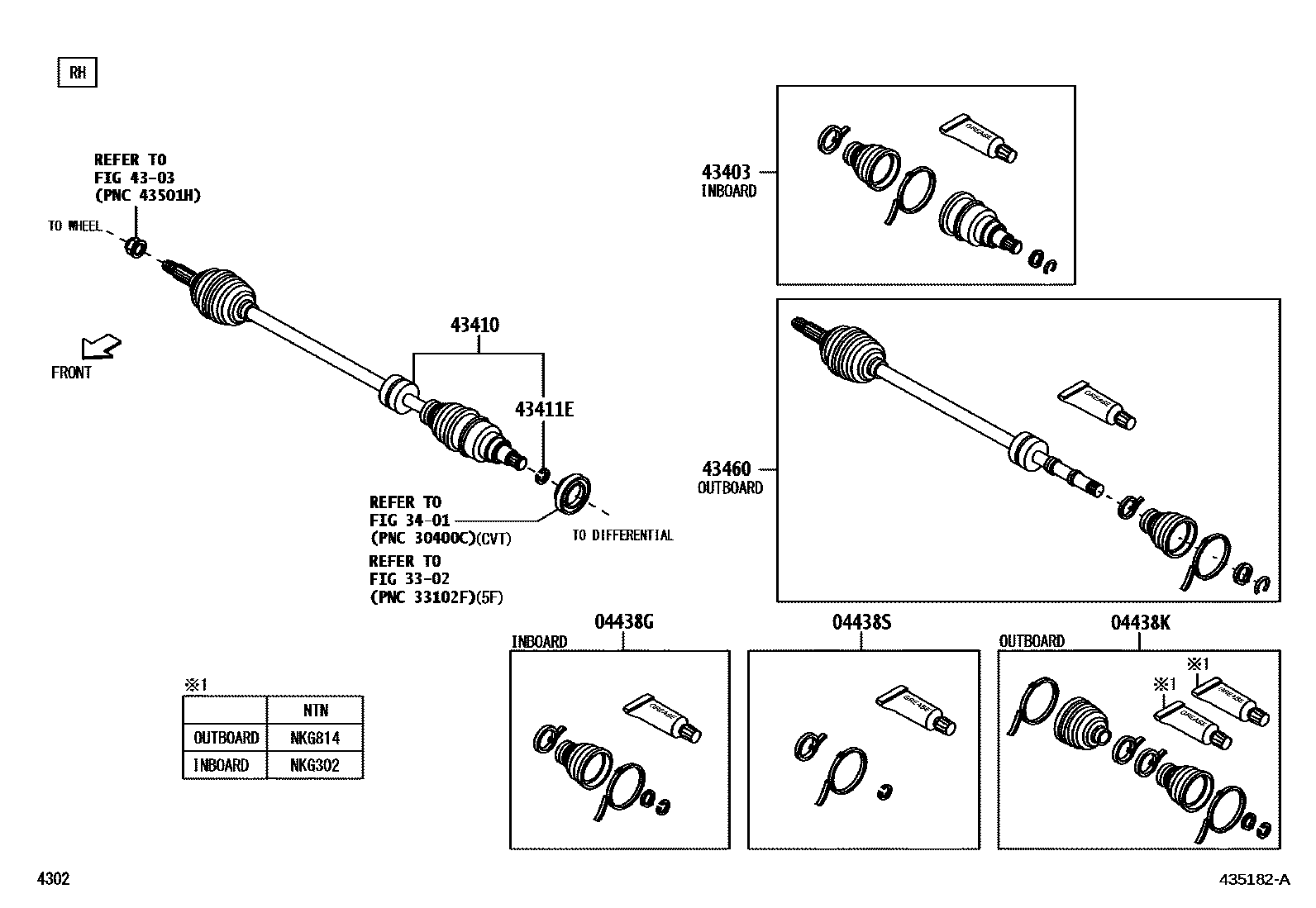

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-BZ110iA350..5F202306

main04437-BZ120iA350..CVT202306

main04437-BZ130iA351202303

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-BZ120iA350..5F202306

main04425-BZ130iA350..CVT202306

main04425-BZ140iA351202303

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-BZ120iA350..5F202306

main04435-BZ130iA350..CVT202306

main04435-BZ140iA351202303

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

4303FRONT AXLE HUB

→ Go to FIG 43-03

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9790iA350..5F202306

main43408-B9795iA350..CVT202306

main43408-B9800iA351202303

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-BZ270iA350..5F202306

main43410-BZ280iA350..CVT202306

main43410-BZ290iA351202303

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90045-20298iA35#202303

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9780iA350..5F202306

main43411-B9785iA350..CVT202306

main43411-B9790iA351202303

10 parts on this diagram · 3 diagrams in section
