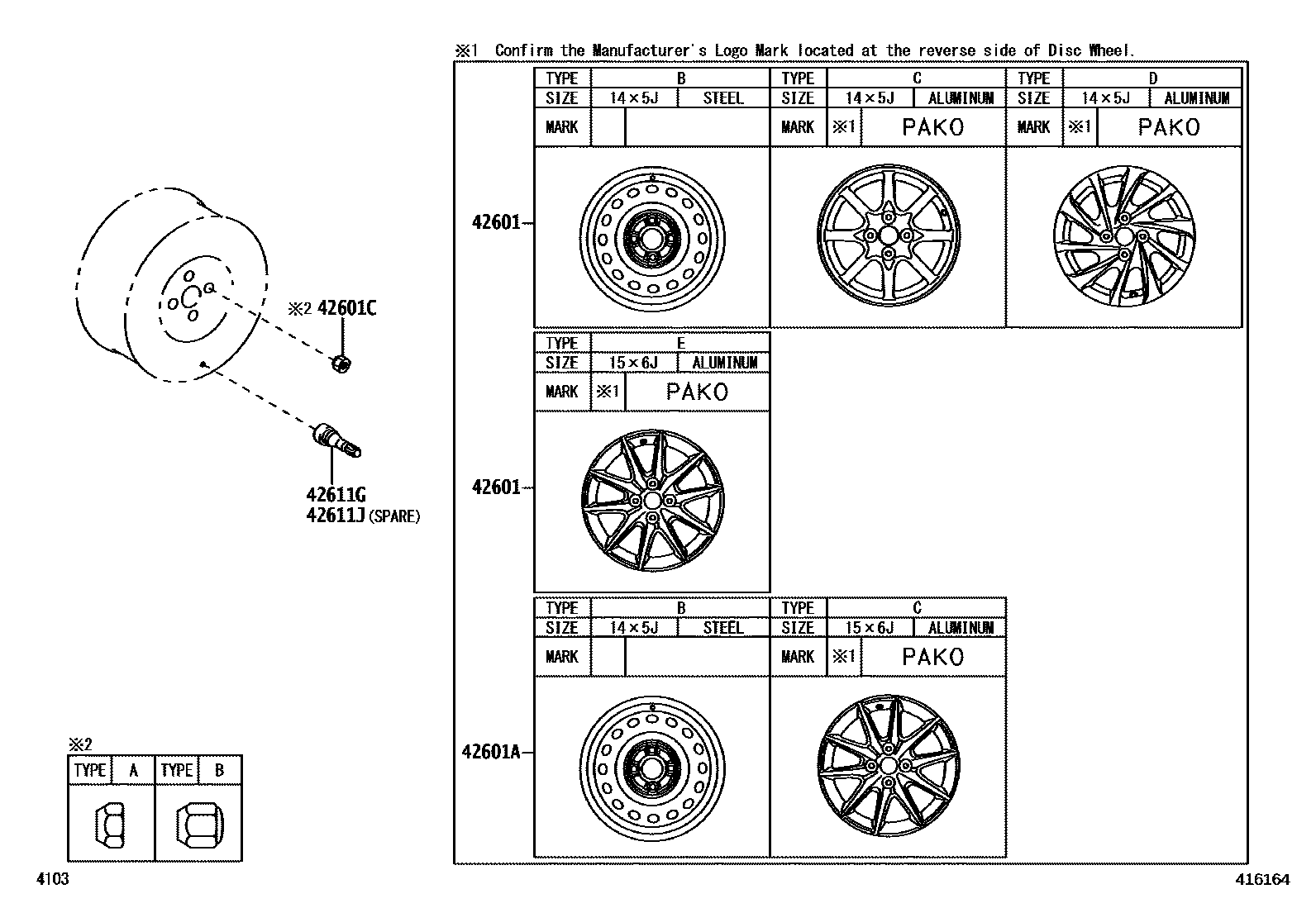

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-BZ890×4i202303

14X5J(ST),BLACK,DESTINATION PACKAGE(ASIA)-VIETNAM&TIRE & DISC WHEEL-175/65R14-ST(BLACK),TYPE B BLACK; 14X5J(ST),BLACK,TYPE B BLACK

main42611-BZG80×4i202303

14X5J(AL),TYPE C

main42611-BZG90×4i202303

14X5J(AL),DESTINATION PACKAGE(ASIA)-VIETNAM,TYPE D; 14X5J(AL),TYPE D

main42611-BZJ40×4i202303

15X6J(AL),TYPE E BLACK

42601AWHEEL, DISC (FOR SPARE)

14X5J(ST),BLACK,TYPE B BLACK

15X6J(AL),TYPE C BLACK

42601CNUT, HUB (FOR AXLE)

main9004A-94124×16i202303

TYPE B

main9004A-94125×16i202303

DESTINATION PACKAGE(ASIA)-VIETNAM&TIRE & DISC WHEEL-175/65R14-ST(BLACK),TYPE A; TYPE A

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4i202303

42611JVALVE (FOR TUBELESS TIRE SPARE)

5 parts on this diagram · 3 diagrams in section
