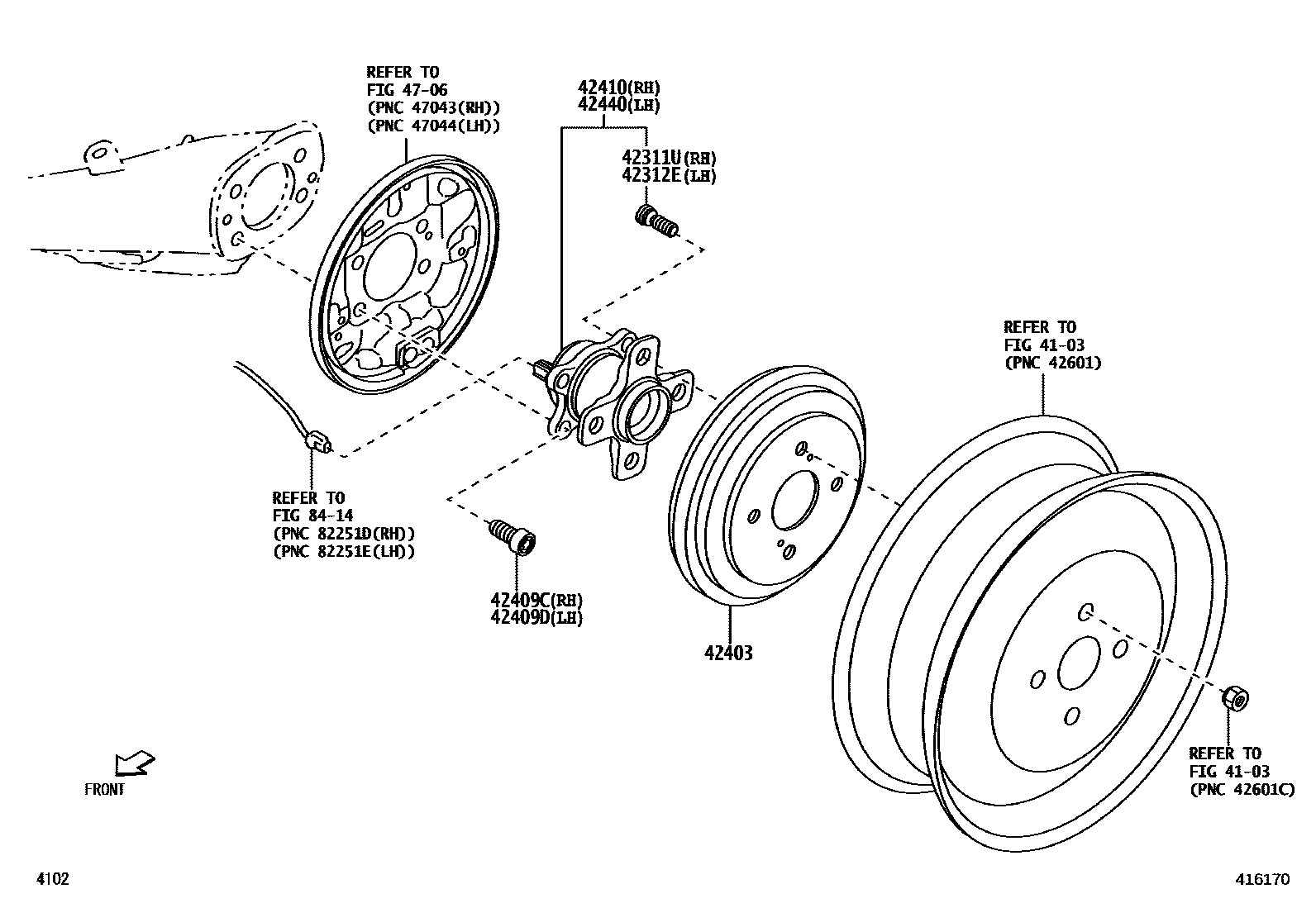

REAR AXLE SHAFT & HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12062×4iA35#202303

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12062×4iA35#202303

42403DRUM SUB-ASSY, REAR BRAKE

main42431-BZ270×2iA35#202303-202502

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01719×4iA35#202303

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01719×4iA35#202303

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-BZ200iA35#202303

W/SENSOR

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-BZ200iA35#202303

W/SENSOR

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

10 parts on this diagram · 1 diagram in section
