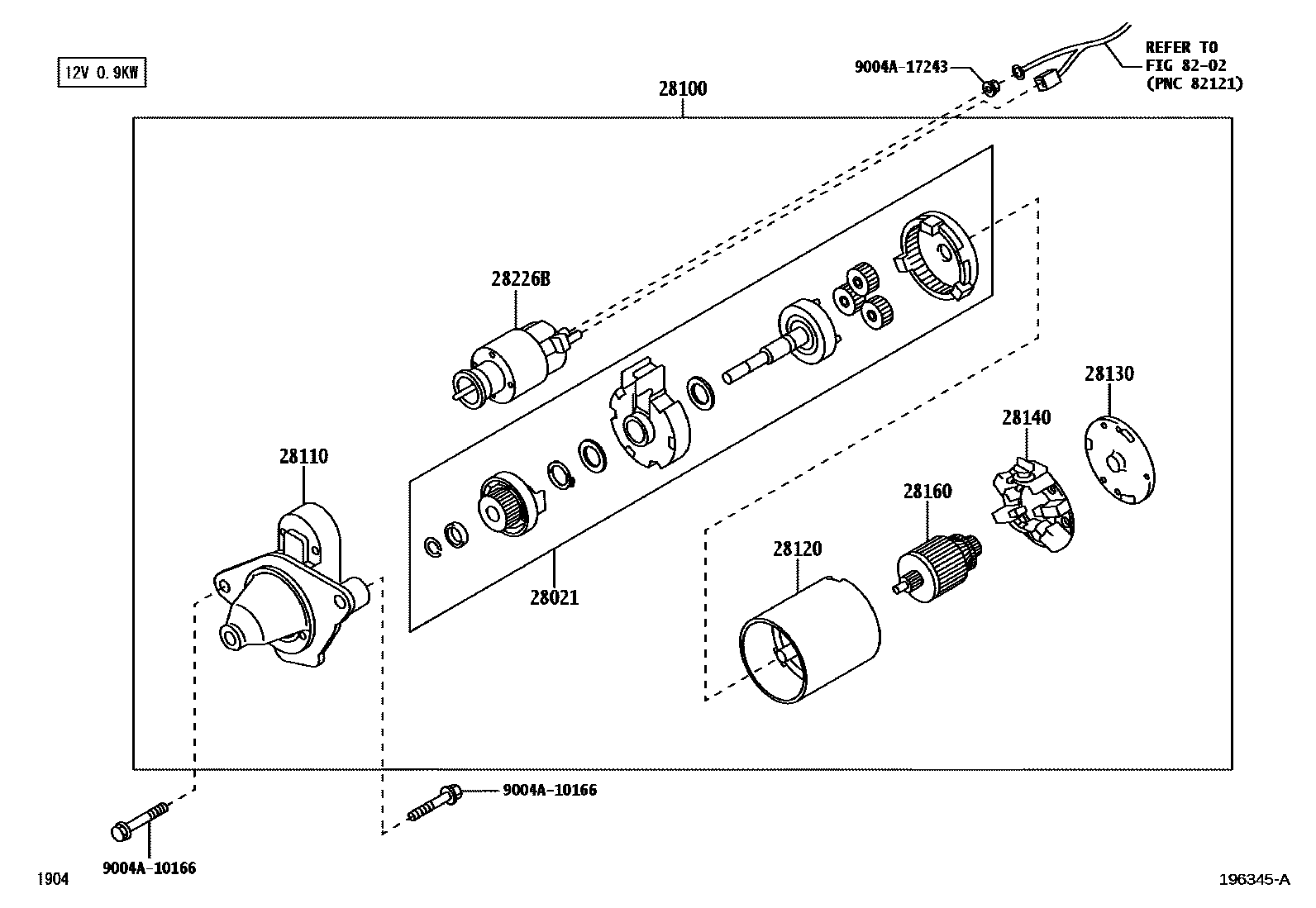

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-BZ010i1KRVE..A350202306

main28021-BZ050iWAVE..A351202303

28100STARTER ASSY

main28100-BZ141i1KRVE..A350202306

12V 0.9KW

main28100-BZ310iWAVE..A351202303

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ040i1KRVE..A350202306

main28110-BZ180iWAVE..A351202303

28120YOKE ASSY, STARTER

main28120-BZ030i1KRVE..A350202306

main28120-BZ090iWAVE..A351202303

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140iWAVE,1KRVE..A35#202303

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140iWAVE,1KRVE..A35#202303

28160ARMATURE ASSY, STARTER

main28160-BZ040iWAVE,1KRVE..A35#202303

28226BSTARTER KIT, REPAIR SERVICE

main28226-BZ010iWAVE,1KRVE..A35#202303

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A10166

main9004A-10166

9004A17243

main9004A-17243

11 parts on this diagram · 1 diagram in section
