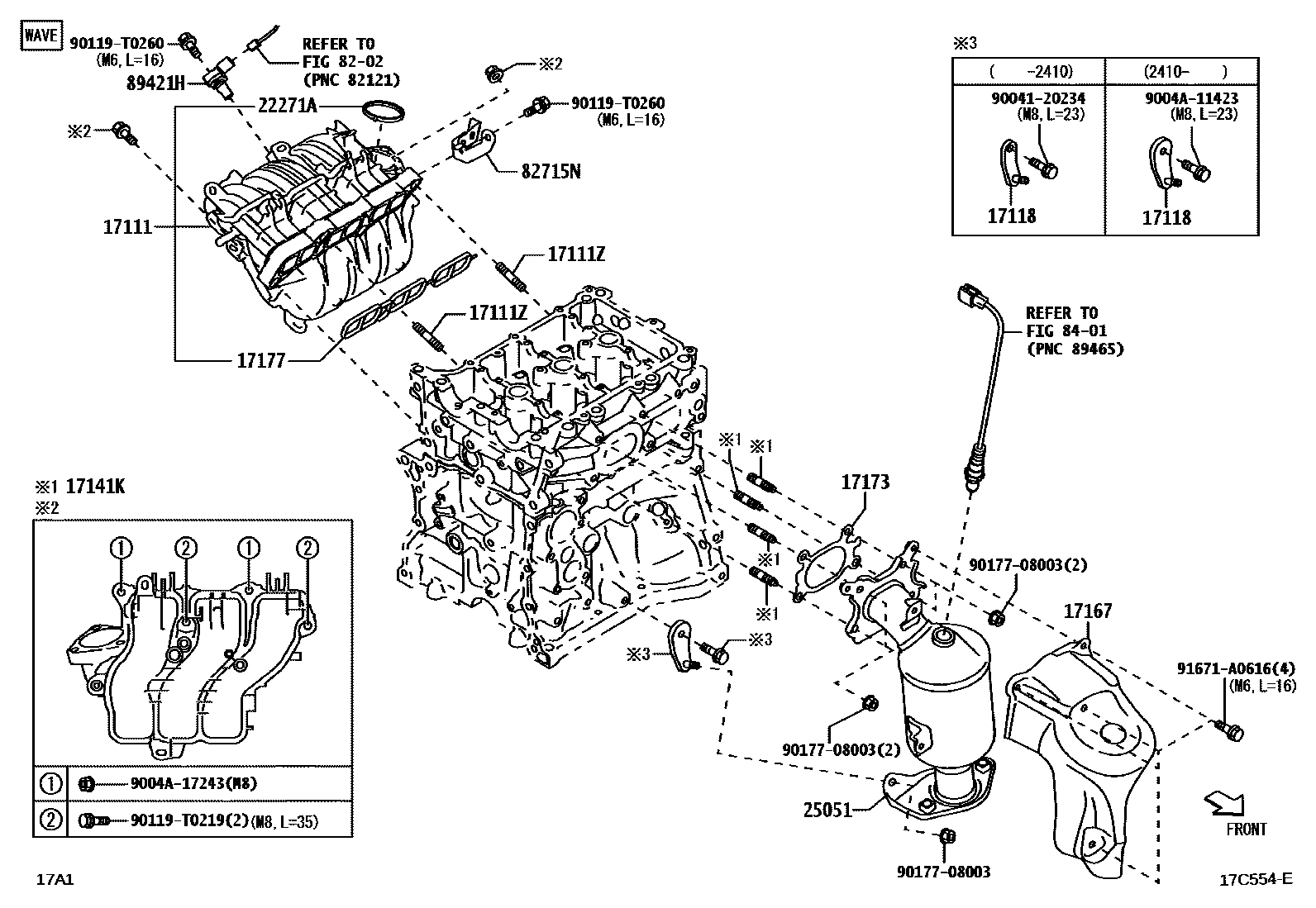

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17101-BZ120i1KRVE..A350202306

main17120-BZ200iWAVE..A351202303

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main9004A-12003×2i1KRVE..A350202306

main90126-08060×2iWAVE..A351202303

17118STAY, MANIFOLD

main17118-B1061iWAVE..A351202303-202410

main17118-B1080iWAVE..A351202410

main17118-BZ140i1KRVE..A350202306

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90041-16487×3i1KRVE..A350202306

main90041-26010×4iWAVE..A351202303

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-BZ100i1KRVE..A350202306

main17167-BZ180iWAVE..A351..RHD..GEN;WAVE..A351..5F..E..GEN202303-202307

main17167-BZ181iWAVE..A351202307

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-BZ120iWAVE..A351202303

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-BZ040i1KRVE..A350202306

main17177-BZ070iWAVE..A351202303

22271AGASKET, THROTTLE BODY

main22271-BZ020i1KRVE..A350202306

main22271-BZ060iWAVE..A351202303

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-BZ230iWAVE..A351..RHD;WAVE..A351..LHD..E202303

main25051-BZ240iWAVE..A351..N..GEN202303

8202WIRING & CLAMP

→ Go to FIG 82-02

82715NBRACKET, WIRING HARNESS CLAMP

main82716-BZ130iA351202303

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421HSENSOR, VACUUM

main89421-BZ060iA35#202303

9004120234

main90041-20234

9004A11423

main9004A-11423

9004A17243

main9004A-17243

90119T0219

main90119-T0219

90119T0260

main90119-T0260

9017708003

main90177-08003

91671A0616

main91671-A0616

20 parts on this diagram · 2 diagrams in section
